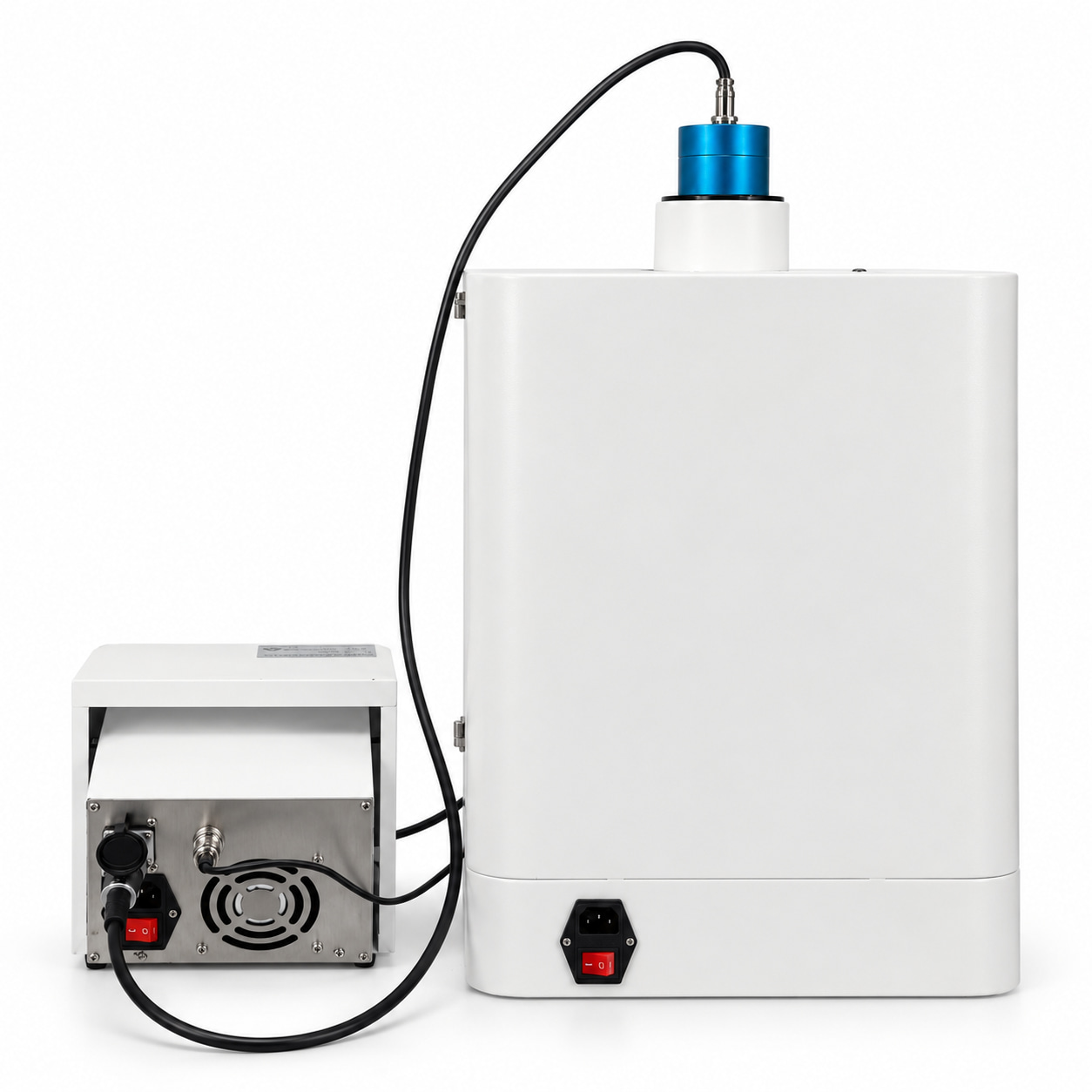

The LVOBO BO-UCH1000F is an 800 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–1000 mL with suitable probe configurations and includes a standard Φ13 mm titanium alloy probe. The split-type system features a separate touchscreen controller, an enclosed sonication chamber and a motorized sample lift. Adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm provide flexible control for different laboratory processing requirements.
Item No :
BO-UCH1000FOrder(MOQ) :
1Price :
$1560Product Origin :
ChinaShipping Port :
XiaMenLead Time :
7DaysWeight :
17KGPayment :
T/TAdjust ultrasonic power from 0–100% to suit the sample and processing task.
Process laboratory samples within this range using a suitable probe configuration selected for the sample and vessel.

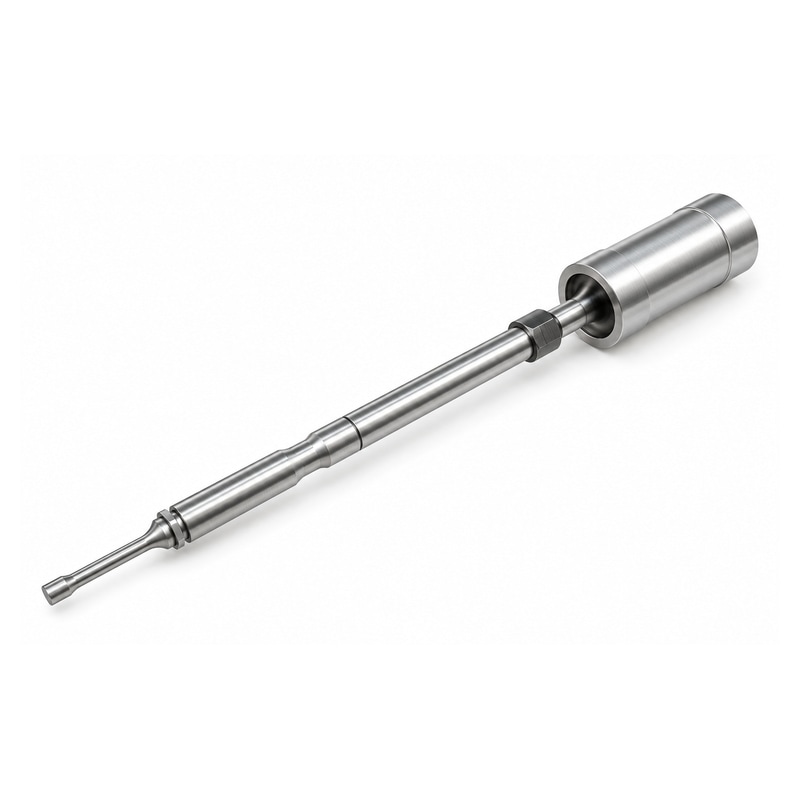

A titanium alloy probe is supplied as standard, with multiple optional diameters for different laboratory requirements.
Combine touchscreen control, a motorized sample lift, an acoustic enclosure, Temperature Monitoring & Over-Temperature Alarm, and program / recipe memory.
Select a probe according to sample volume, vessel dimensions, sample characteristics and intended application.
| Parameter | Specification |
|---|---|
| Brand | LVOBO |
| Model | BO-UCH1000F |
| Ultrasonic Power | 800 W |
| Processing Range | 5–1000 mL |
| Standard Probe | Φ13 mm |
| Optional Probes | Φ3 / Φ6 / Φ8 / Φ10 / Φ12 / Φ16 / Φ20 mm |
| Probe Material | Titanium Alloy |
| Ultrasonic Frequency | 20–25 kHz |
| Power Adjustment | 0–100% |
| Total Working Time | 0–999 min |
| Output Time | 0.1 s–999 min |
| Interval Time | 0.1 s–999 min |
| Sonication Modes | Continuous / Pulse / Intermittent |
| Display | Touchscreen |
| Motorized Sample Lift | Yes |
| Temperature Monitoring | Yes |
| Temperature Alarm Setting | 0–99°C |
| Temperature Alarm Action | Automatic Alarm |
| Program / Recipe Memory | Yes |
| Overload Protection | Yes |

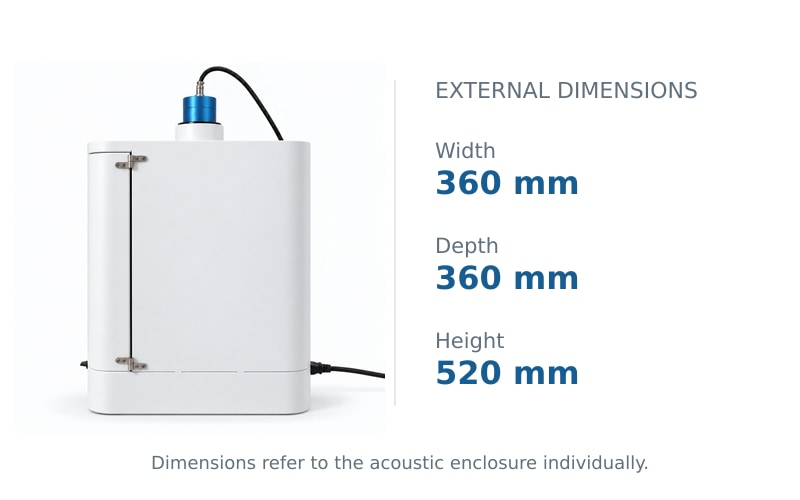

| Acoustic Enclosure External Dimensions | 360 × 360 × 520 mm |
| Acoustic Enclosure Internal Dimensions | 350 × 350 × 420 mm |

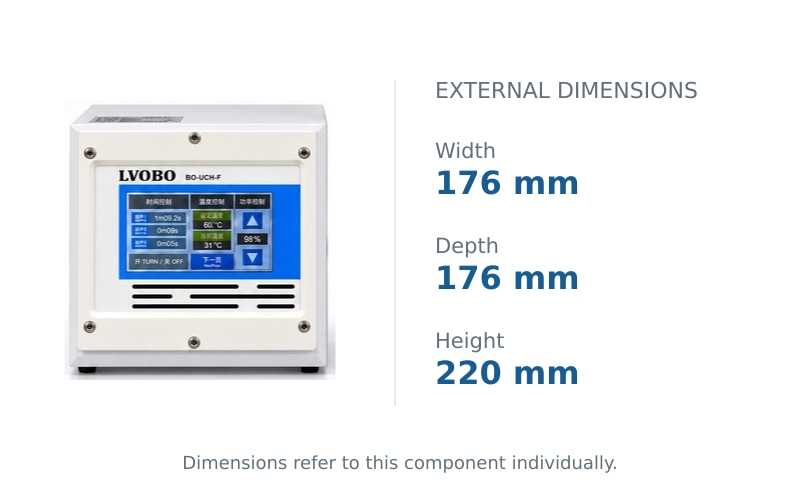

| Separate Control Unit Dimensions | 176 × 176 × 220 mm |
| Net Weight | 17 kg |
| Power Supply | AC 100–240 V, 50/60 Hz |

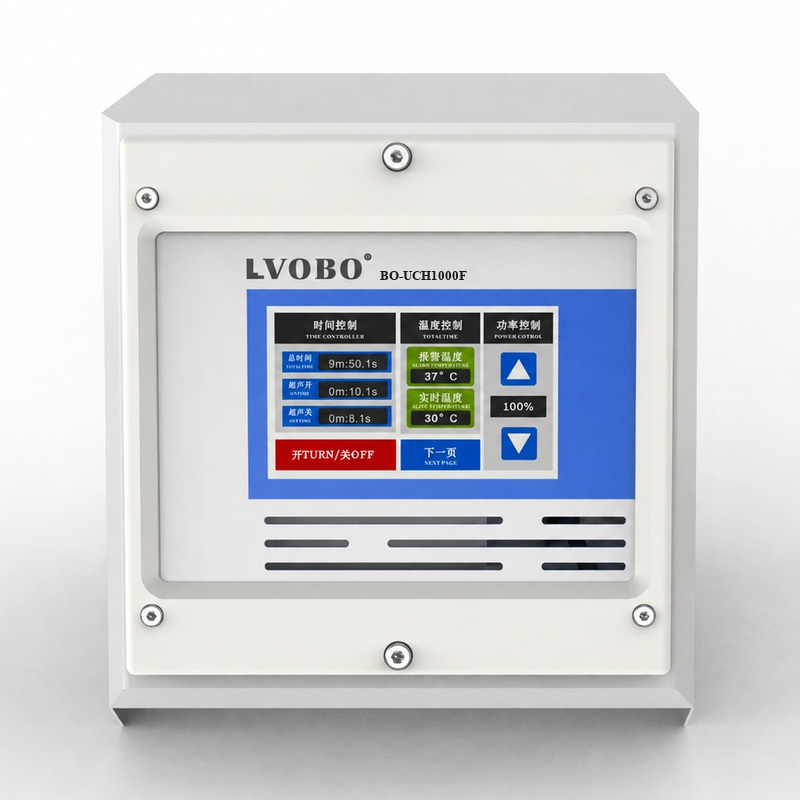

Set ultrasonic power, timing and operating parameters from the separate control unit.
Use continuous output or alternate sonication and pause periods with output and interval settings.

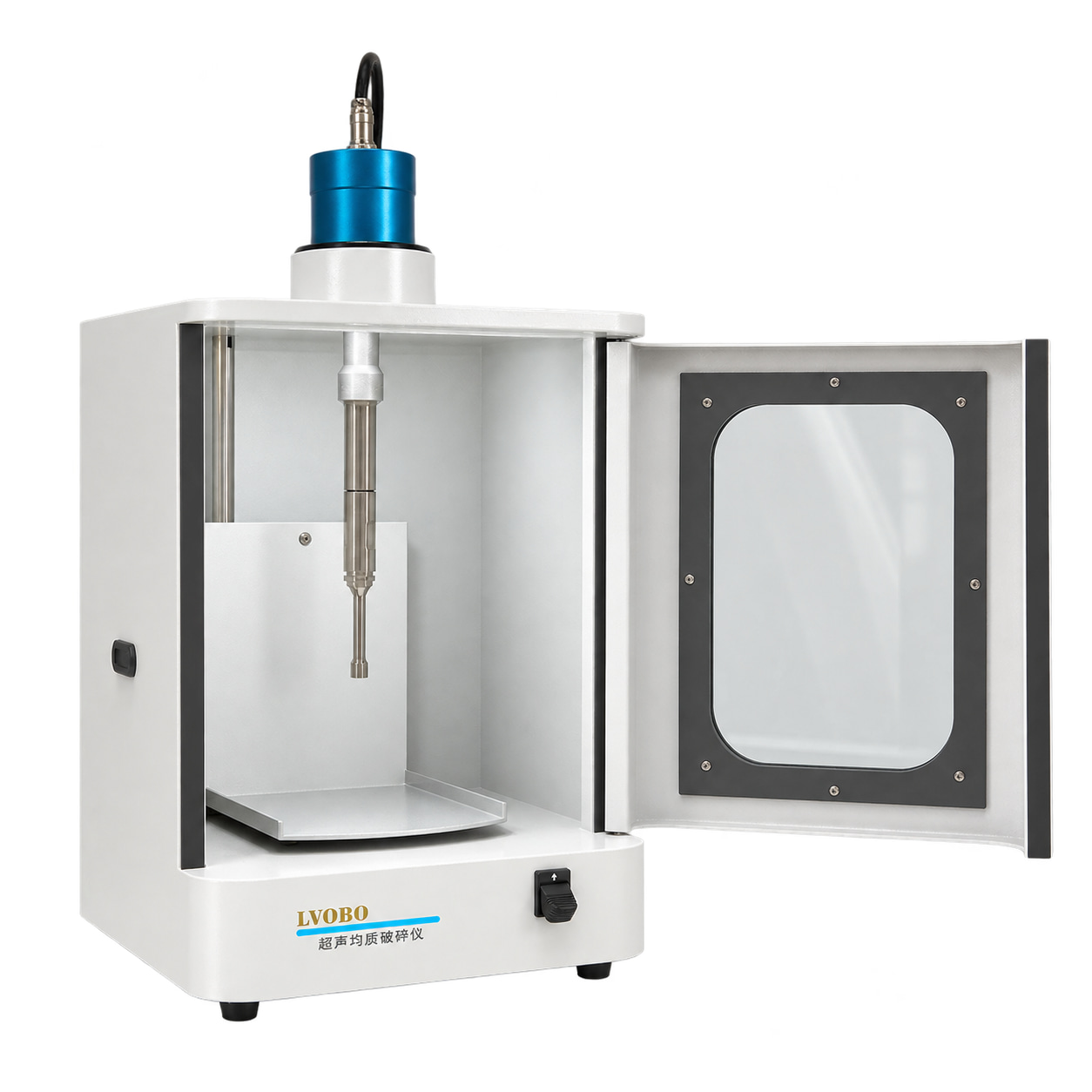

Electrically raise or lower the platform to position the vessel beneath the probe.
Monitor sample temperature and receive an automatic alarm when the configured temperature limit is reached.
Save and recall operating parameters for repeated laboratory procedures.
Includes overload protection for ultrasonic operation.
Laboratory sample preparation and liquid-phase ultrasonic processing tasks include:
These examples are not exhaustive. Suitability depends on the sample, vessel, processing conditions and selected probe.
The acoustic enclosure and control unit are separate components. Dimensions below refer to each component individually.
Other BO-UCH-F models are available for different ultrasonic power and processing-volume requirements.
Explore the BO-UCH-F Series →The processing range is 5–1000 mL with a suitable probe configuration matched to the sample and vessel.
A Φ13 mm titanium alloy probe is supplied as standard.
Optional probe diameters are Φ3 / Φ6 / Φ8 / Φ10 / Φ12 / Φ16 / Φ20 mm.
Yes. It supports continuous, pulse and intermittent operation, with adjustable output and interval times.
Yes. Temperature Monitoring & Over-Temperature Alarm is provided. The alarm setting range is 0–99°C; an automatic alarm is triggered when the configured limit is reached.
Share your sample type, sample volume, vessel dimensions and intended application. LVOBO can help recommend a suitable probe configuration for your laboratory workflow.
