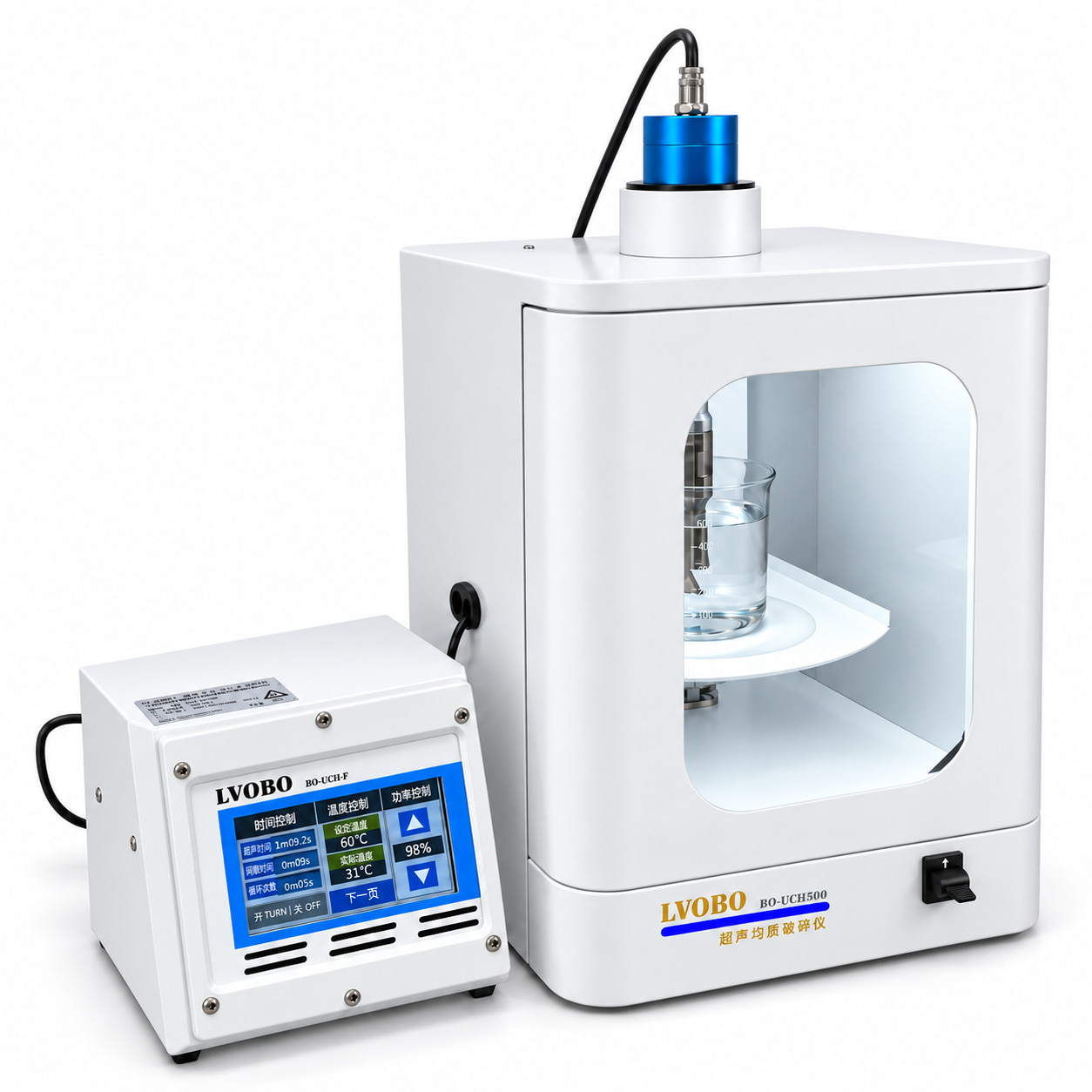

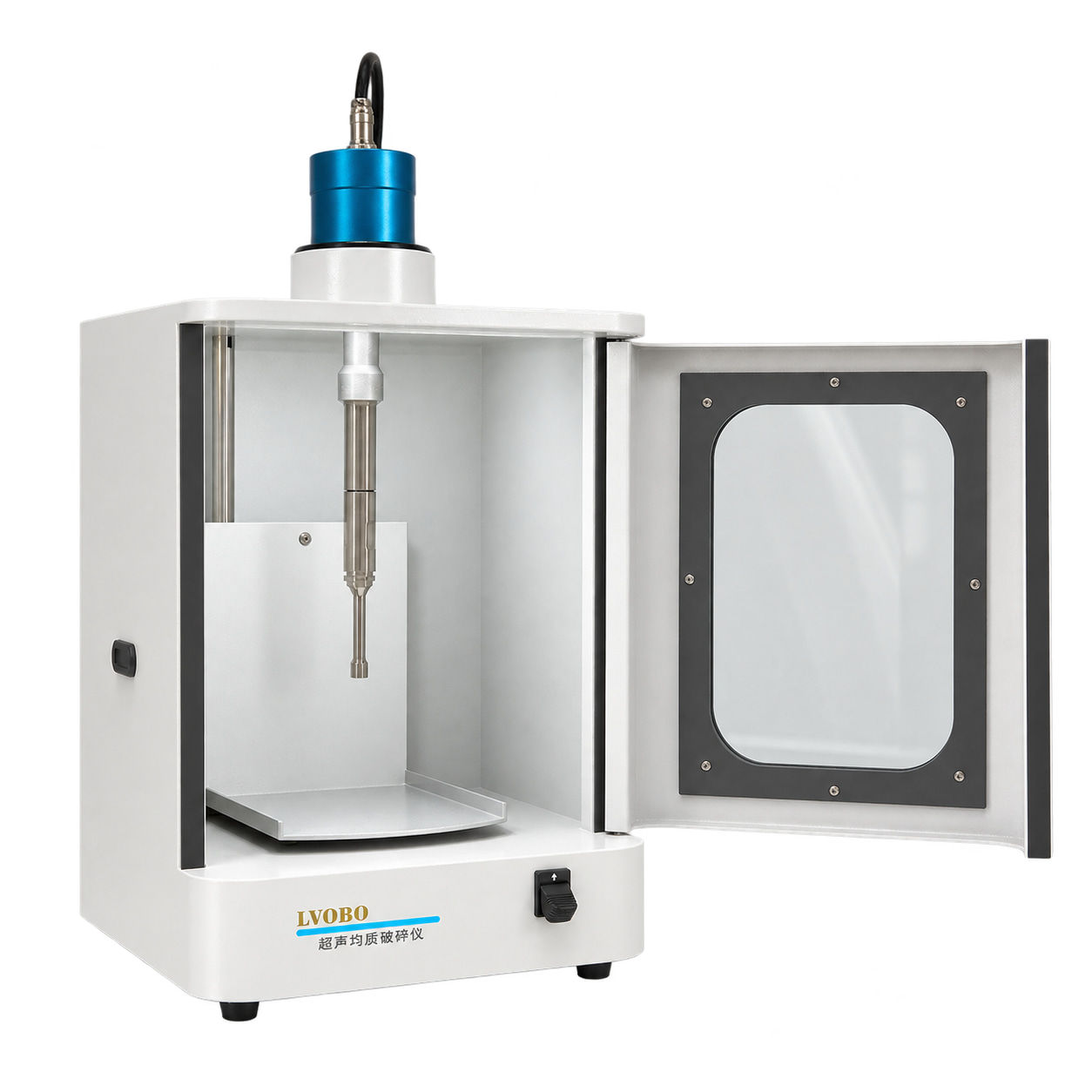

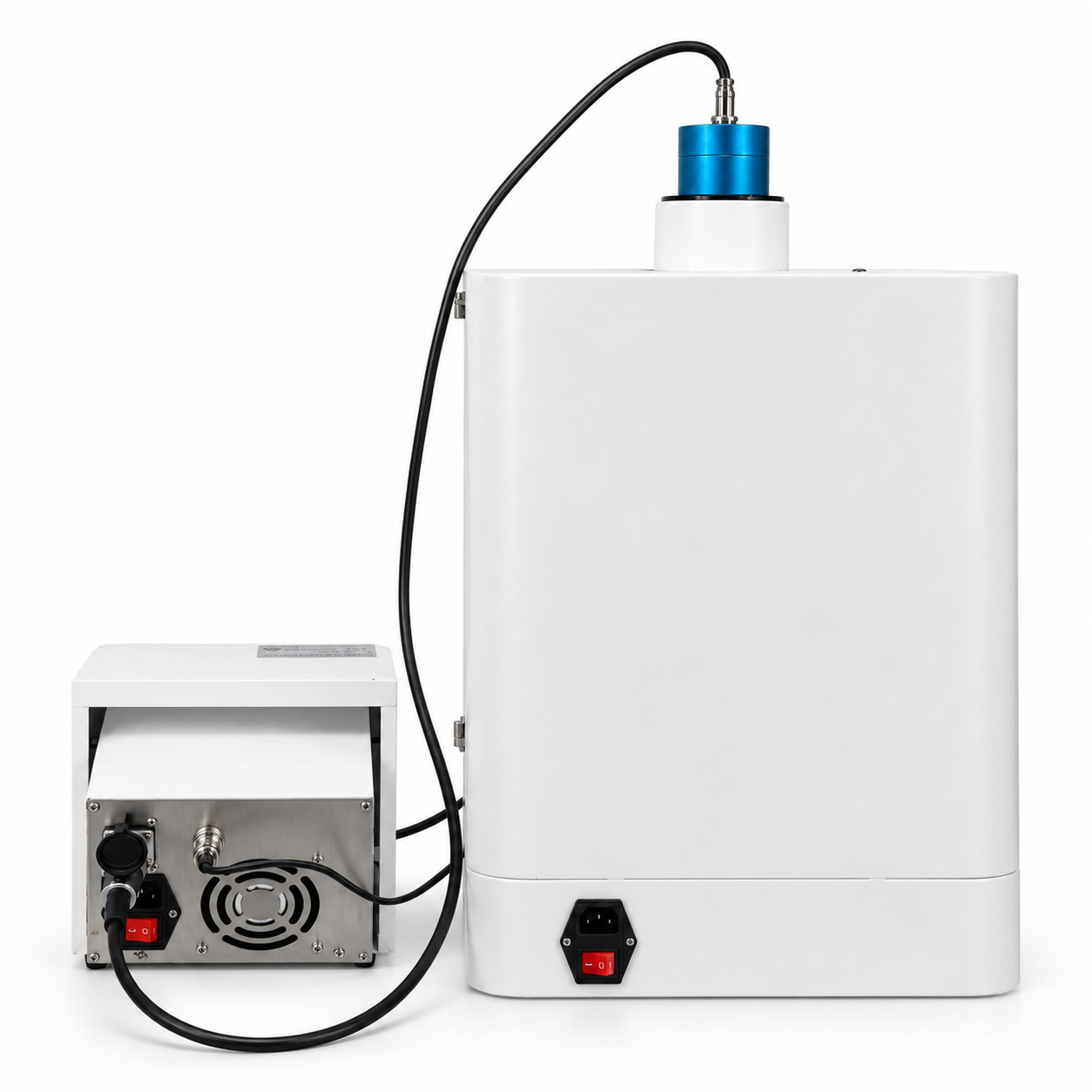

The LVOBO BO-UCH150F is the 150 W configuration in the BO-UCH-F probe sonicator series, designed for laboratory liquid sample processing from 5 to 150 mL with a suitable probe configuration. It has the lowest power rating and processing capacity in the series, supporting cell disruption, homogenization, dispersion and emulsification. A Φ3 mm titanium alloy probe is supplied as standard. The split-type system combines a separate touchscreen control unit with an enclosed sonication workspace and motorized sample lift. It shares the same enclosure and control-unit dimensions with the other BO-UCH-F models.
Item No :
BO-UCH150FOrder(MOQ) :
1Price :
$871Product Origin :
ChinaShipping Port :
XiaMenLead Time :
7 DaysWeight :
17KGPayment :
T/TBO-UCH150F at a Glance
150 W
Ultrasonic Power
5–150 mL
Processing Range
Φ3 mm
Standard Probe
20–25 kHz
Ultrasonic Frequency
The 5–150 mL processing range requires a suitable probe configuration matched to the sample and vessel.
Designed for laboratory users working with sample volumes up to 150 mL with a suitable probe configuration.
The lowest ultrasonic power configuration in the BO-UCH-F series, matched to the lower processing range of this model.

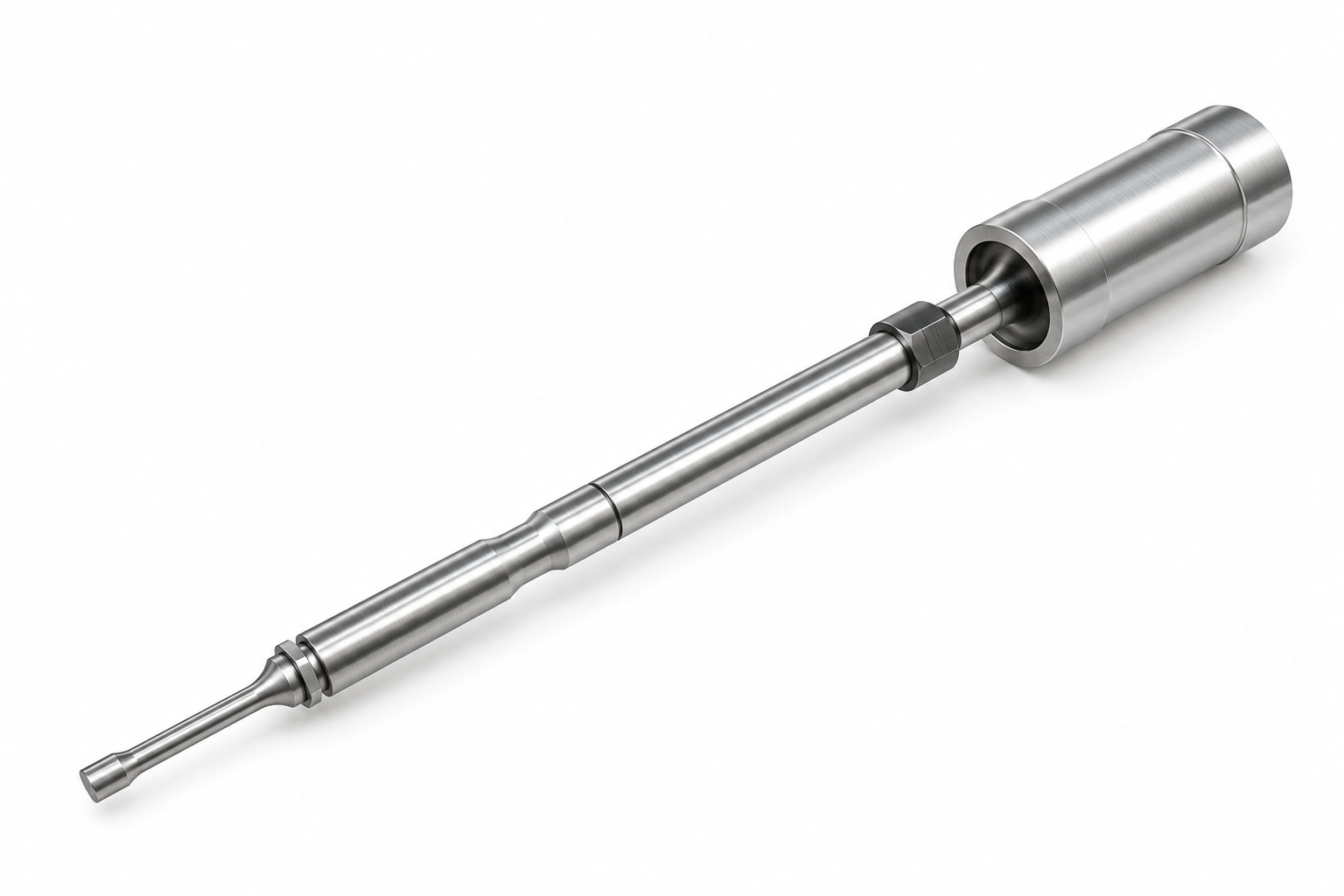

Supplied with a Φ3 mm titanium alloy probe, with Φ2 mm and Φ6 mm optional probe configurations available.
Uses the shared BO-UCH-F enclosure, dimensions and control platform, with the same core functions as higher-capacity models.
| Standard Probe | Φ3 mm |
|---|---|
| Optional Probe Sizes | Φ2 / Φ3 / Φ6 mm |
Different titanium alloy probe diameters support different sample volumes, vessel geometries and processing requirements.
Need help selecting a probe?
Share your sample type, sample volume, vessel dimensions and application.
| Parameter | Specification |
|---|---|
| Model | BO-UCH150F |
| Ultrasonic Power | 150 W |
| Processing Range | 5–150 mL |
| Power Adjustment | 0–100% |
| Ultrasonic Frequency | 20–25 kHz |
| Total Working Time | 0–999 min |
| Output Time | 0.1 s–999 min |
| Interval Time | 0.1 s–999 min |
| Sonication Modes | Continuous / Pulse / Intermittent |

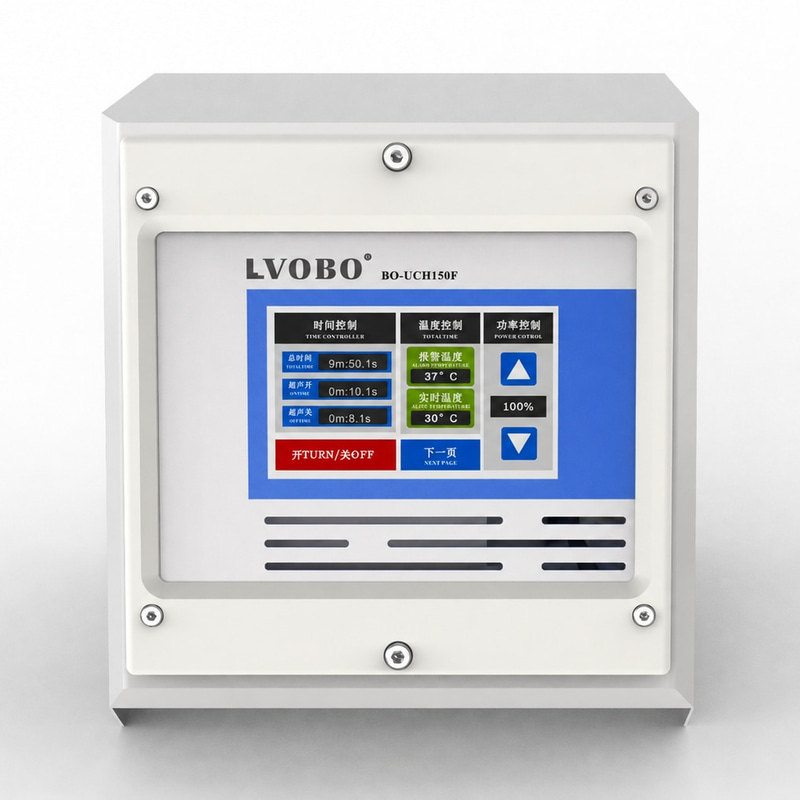

| Display / Control | Touchscreen |
| Motorized Sample Lift | Yes |
| Probe Material | Titanium Alloy |
| Standard Probe | Φ3 mm |
| Optional Probe Sizes | Φ2 / Φ3 / Φ6 mm |
| Temperature Monitoring | Yes |
| Temperature Alarm Setting | 0–99°C |
| Over-Temperature Alarm | Automatic alarm when the configured temperature limit is reached |
| Program / Recipe Memory | Yes |
| Overload Protection | Yes |

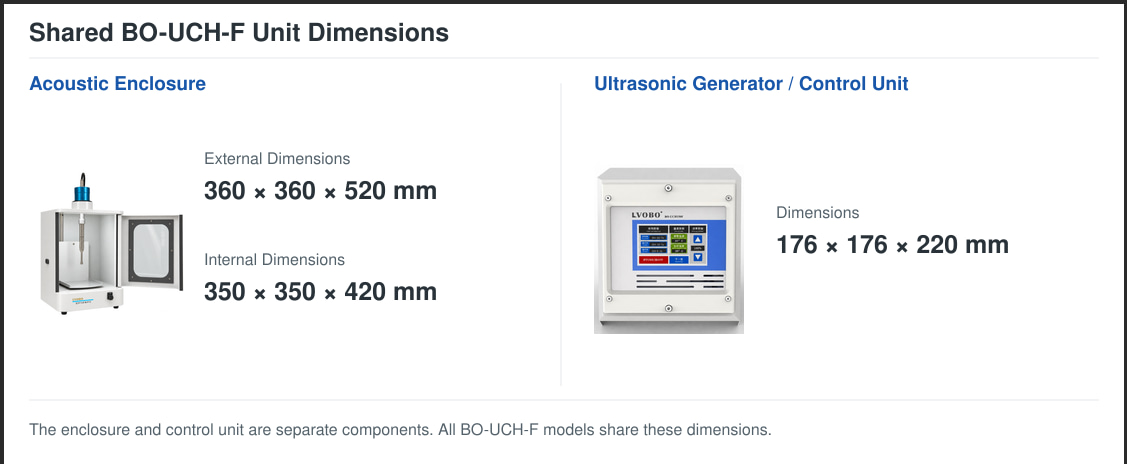

| Acoustic Enclosure External Dimensions | 360 × 360 × 520 mm |
| Acoustic Enclosure Internal Dimensions | 350 × 350 × 420 mm |
| Ultrasonic Generator / Control Unit Dimensions | 176 × 176 × 220 mm |
| Net Weight | 17 kg |
| Power Supply | AC 100–240 V, 50/60 Hz |
Processing range depends on a suitable probe configuration and the sample and vessel requirements.

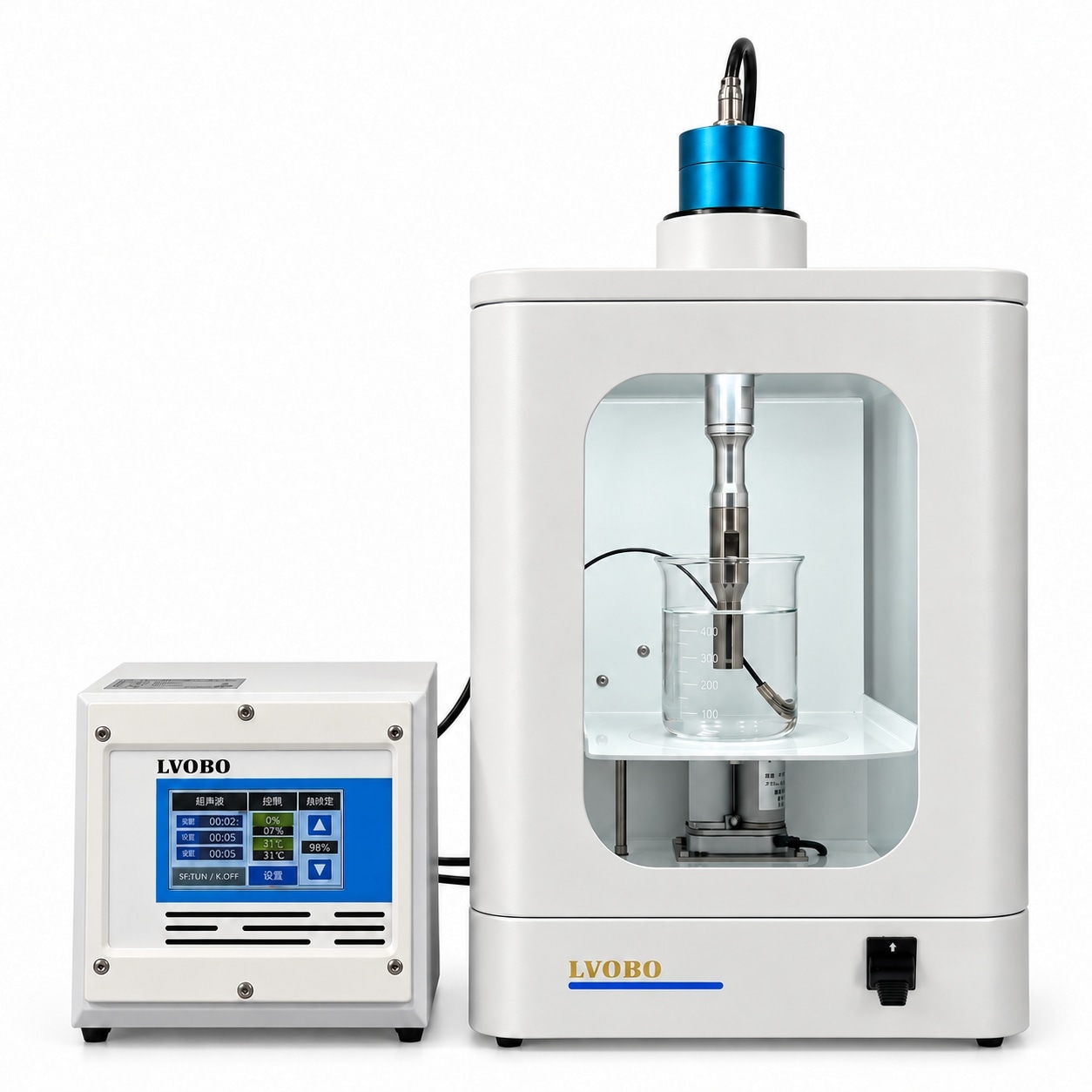

All BO-UCH-F models share the same enclosure and control-unit dimensions. Model selection is based primarily on ultrasonic power, processing range and probe configuration rather than machine size.
These are common examples. Application suitability depends on sample characteristics, processing volume, vessel geometry and probe configuration.
Explore more BO-UCH-F applications →The BO-UCH150F supports a 5–150 mL processing range with a suitable probe configuration.
A Φ3 mm titanium alloy probe is supplied as the standard configuration.
Φ2 mm, Φ3 mm and Φ6 mm probe options are available for the BO-UCH150F.
No. The BO-UCH-F models share the same enclosure and control-unit dimensions. The main differences between models are ultrasonic power, processing range and probe configuration.
BO-UCH150F has 150 W ultrasonic power, a 5–150 mL processing range and a Φ3 mm standard probe. BO-UCH300F has 250 W ultrasonic power, a 5–300 mL processing range and a Φ6 mm standard probe.
Share your sample type, sample volume, vessel dimensions and intended application. LVOBO can help recommend a suitable model and probe configuration.
WhatsApp: +86 13235024070

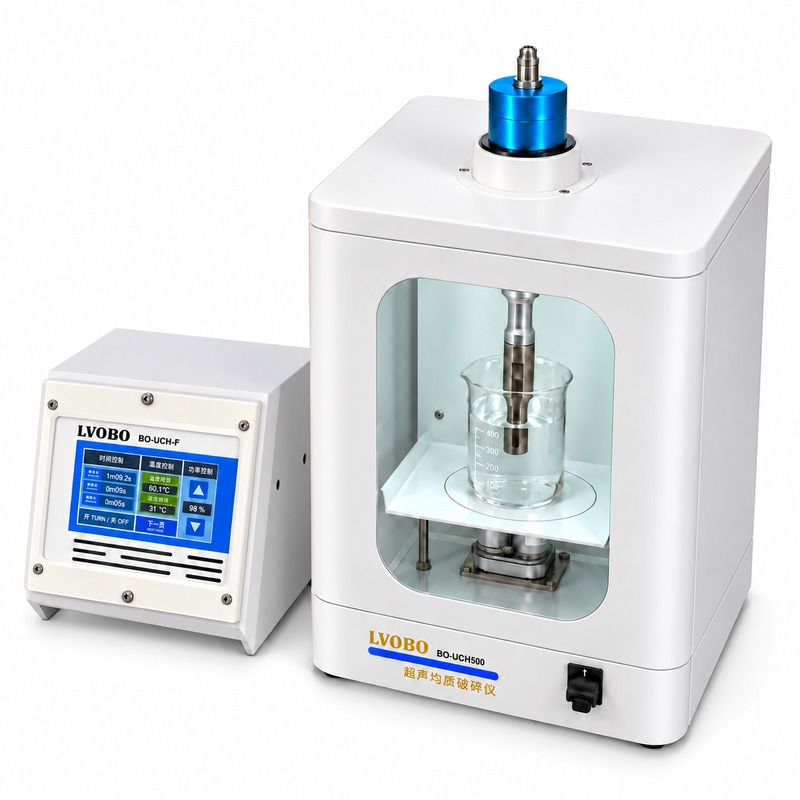

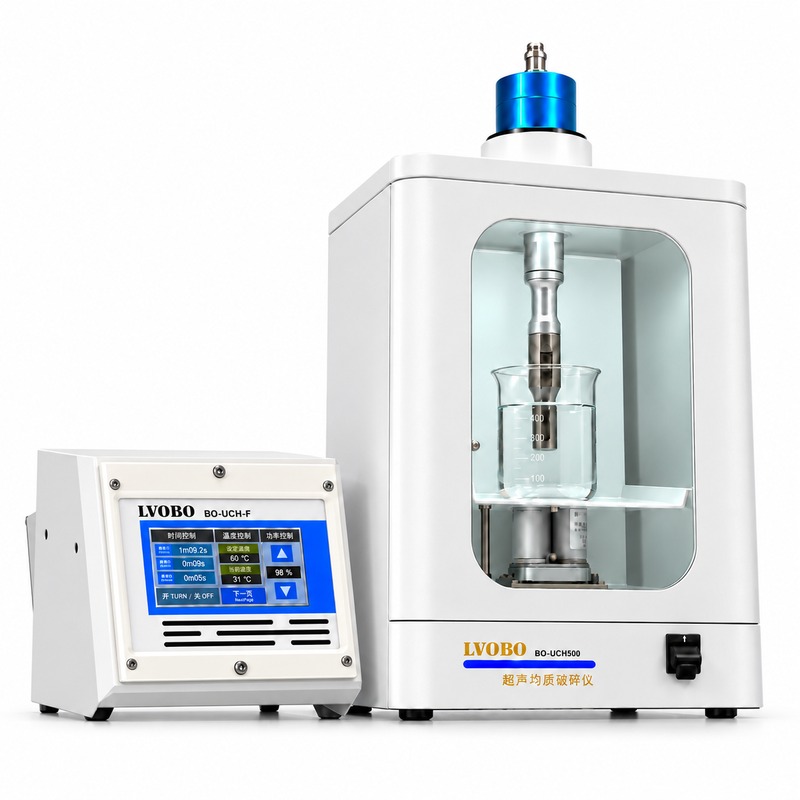

The LVOBO BO-UCH1200F is a 1000 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–1200 mL with suitable probe configurations and includes a standard Φ16 mm titanium alloy probe. The split-type system combines touchscreen control, an enclosed sonication chamber and a motorized sample lift. Adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm enable flexible control for various laboratory applications.
Details
The LVOBO BO-UCH1000F is an 800 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–1000 mL with suitable probe configurations and includes a standard Φ13 mm titanium alloy probe. The split-type system features a separate touchscreen controller, an enclosed sonication chamber and a motorized sample lift. Adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm provide flexible control for different laboratory processing requirements.
Details

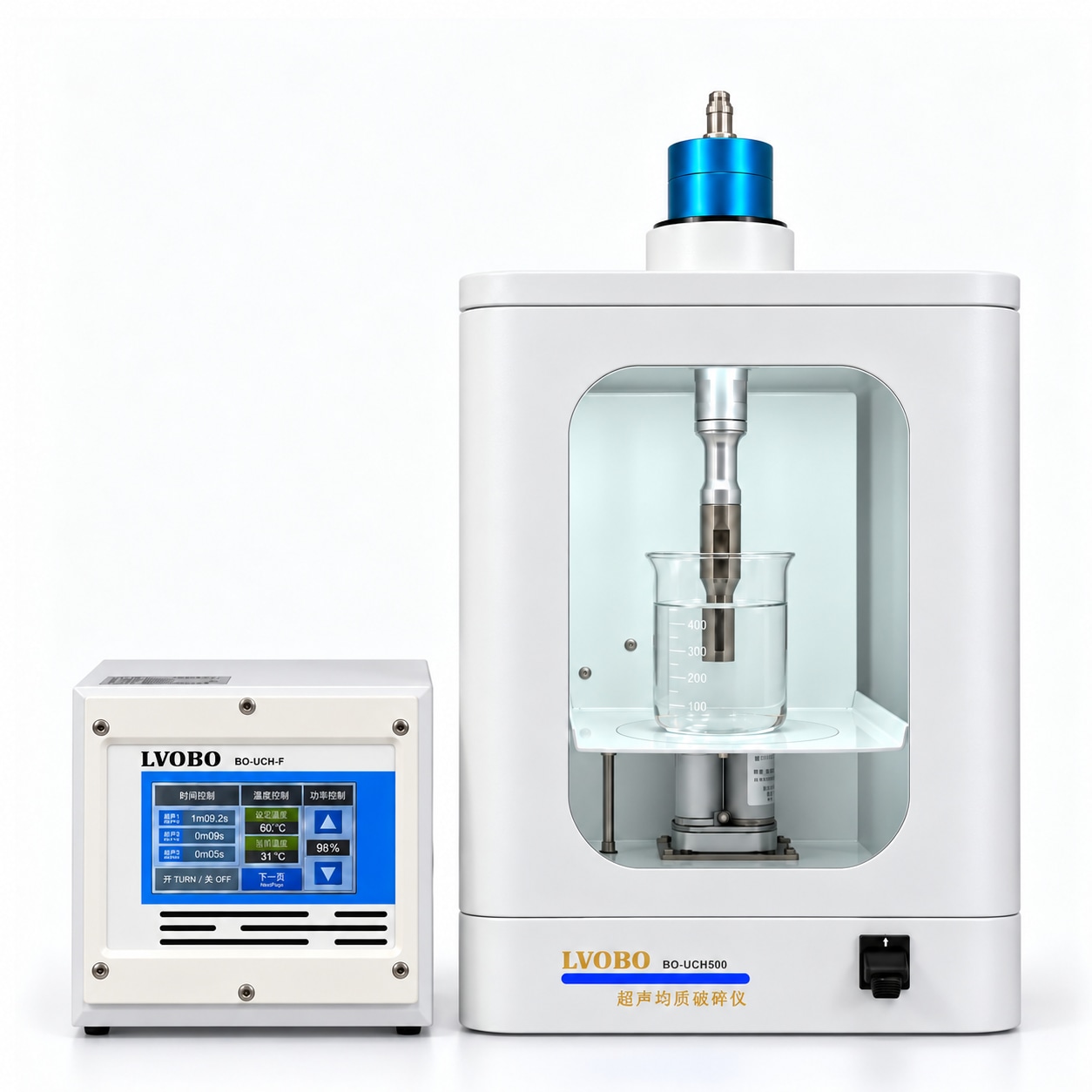

The LVOBO BO-UCH800F is a 600 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–800 mL with suitable probe configurations, including a standard Φ10 mm titanium alloy probe. The split-type system features touchscreen control, an enclosed sonication chamber and a motorized sample lift. With adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm, the BO-UCH800F provides flexible control for laboratory ultrasonic processing.
