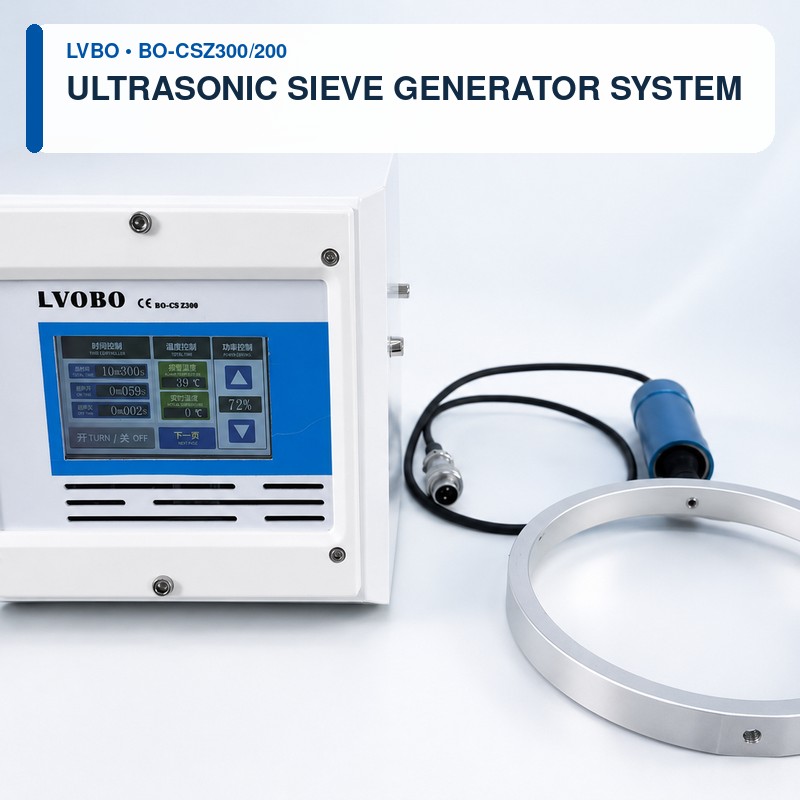

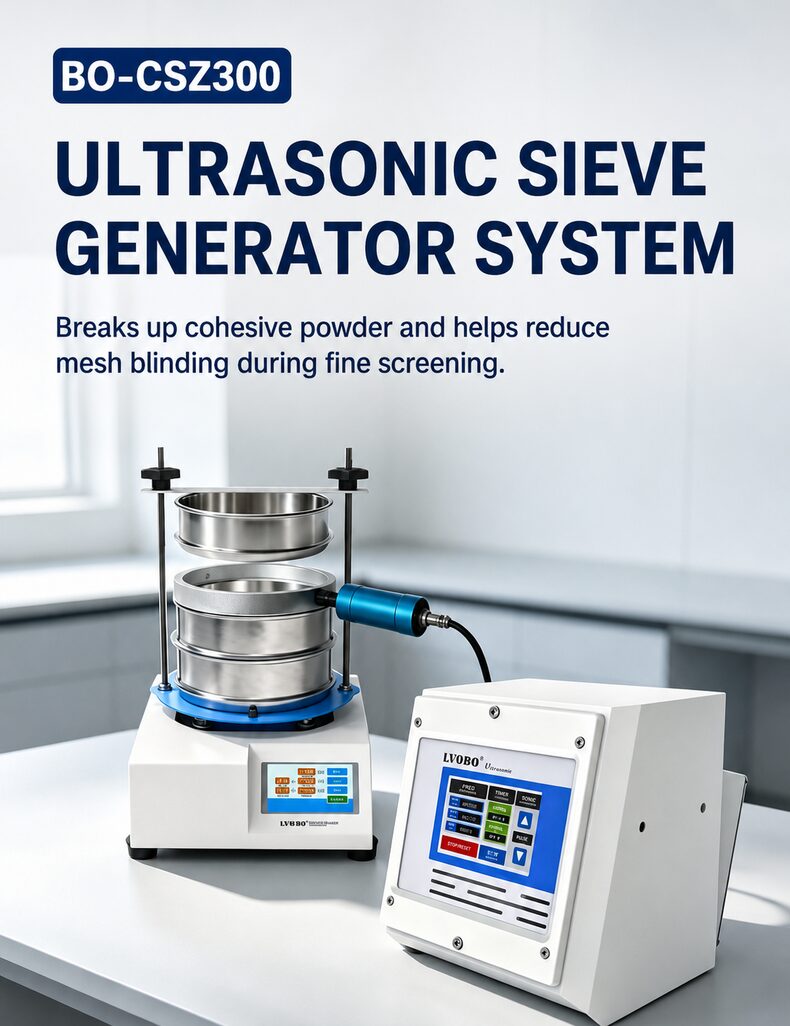

LVOBO BO-CSZ300/200 28 kHz 300 W Ultrasonic Sieve Generator System for Fine Powder Screening
The LVOBO BO-CSZ300/200 is a matched ultrasonic assistance package for laboratories and small-scale teams that already operate fine-powder screening equipment. It is intended for projects where cohesive particles, soft agglomeration or aperture buildup can interrupt ordinary screening. The package combines a controllable generator with the components needed to transfer ultrasonic energy to a selected sieve frame, while a touchscreen supports material-specific operating trials. Rather than treating every powder the same, the configuration is reviewed against the customer’s existing machine and process. Before production, LVBO checks the material, target aperture, frame interface and destination power supply. This matching step helps reduce incorrect component selection. Final screening performance should be verified with the actual powder, loading conditions and operating method.
Item No :
BO-CSZ200Order(MOQ) :
1Price :
$737Product Origin :
ChinaColor :
wWhiteShipping Port :
Xia MenLead Time :
7daysWeight :
3.5KgPayment :
T/TLVOBO Ultrasonic Screening Support

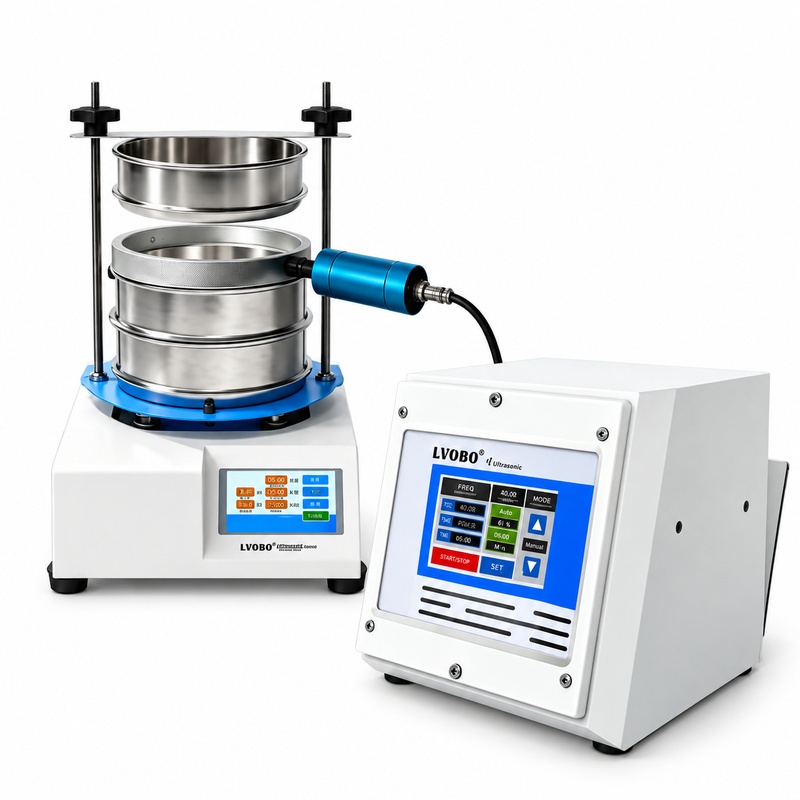

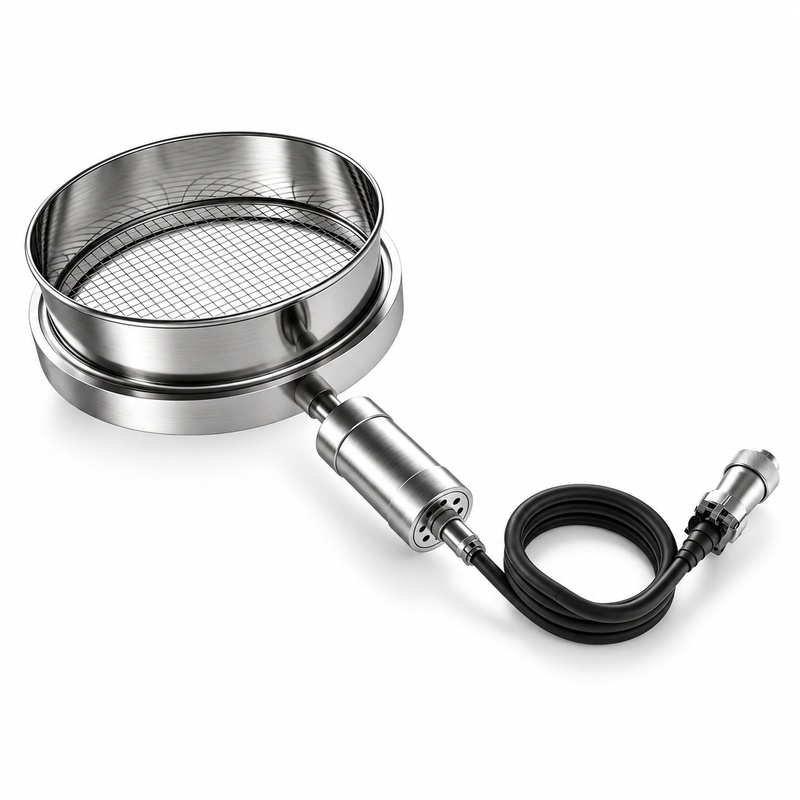

The generator, transducer and dedicated sieve frame are selected as one working path, helping equipment teams add controlled ultrasonic assistance to fine-powder screening without presenting the product as a complete sieve shaker.
Matched System Design

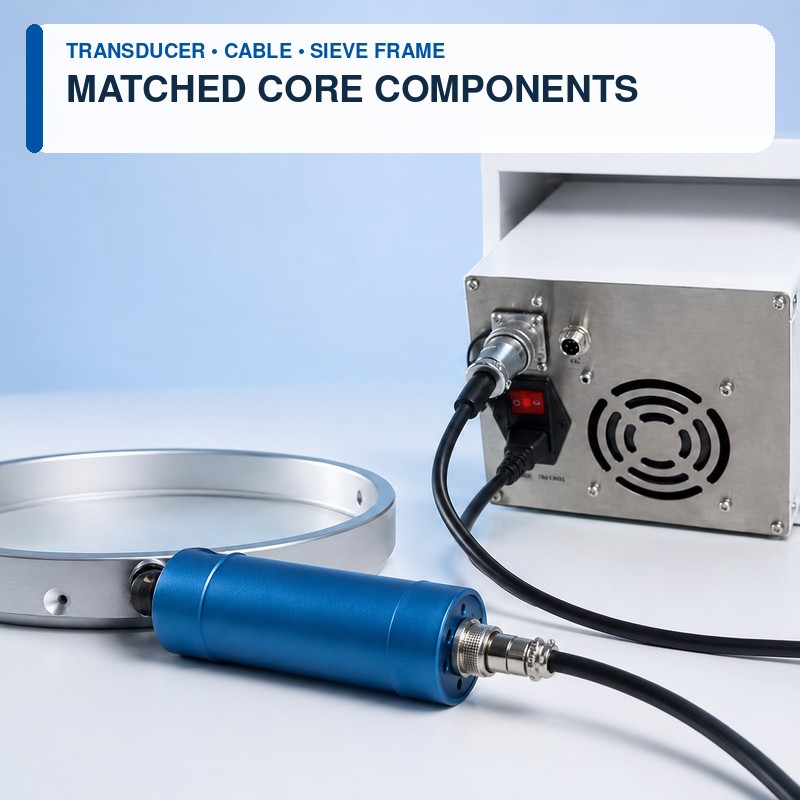

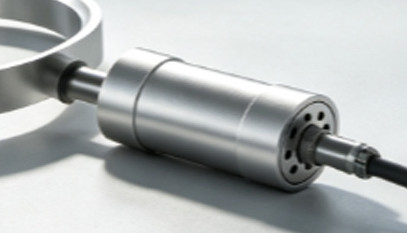

Instead of combining unrelated components, LVOBO supplies a generator, matched transducer, cable connection and dedicated ultrasonic frame as a coordinated set. This gives the buyer a clearer starting point for equipment integration and reduces avoidable mismatch between the electrical output and the mechanical interface.

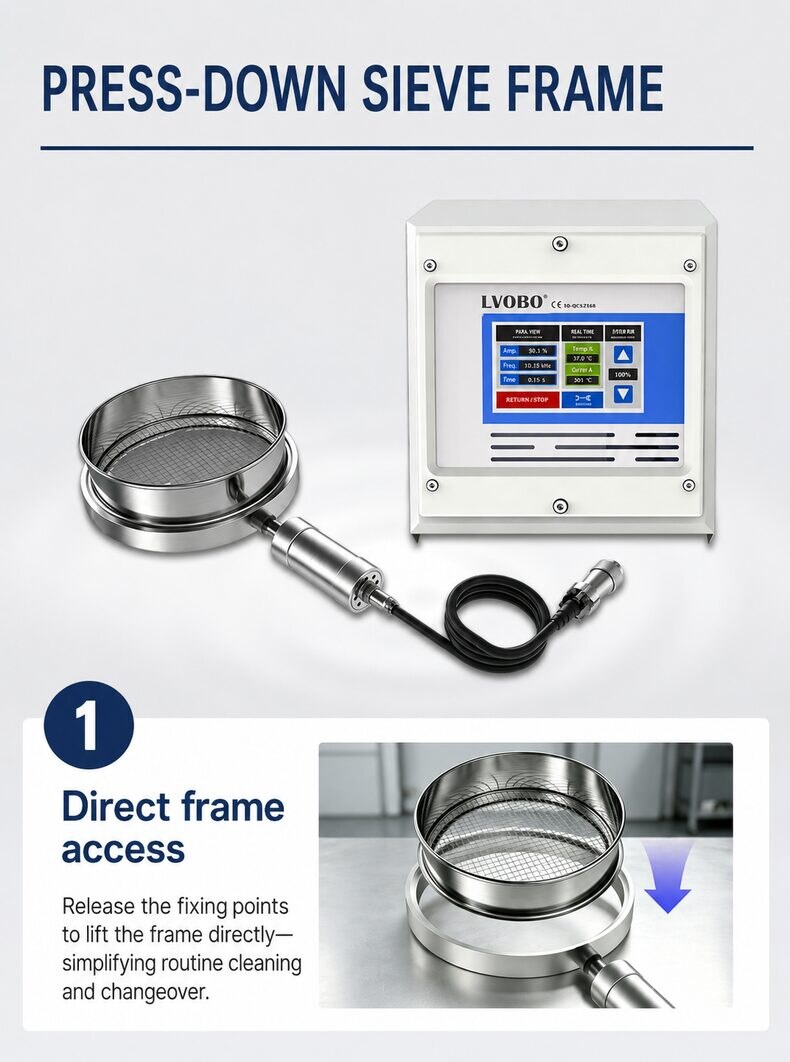

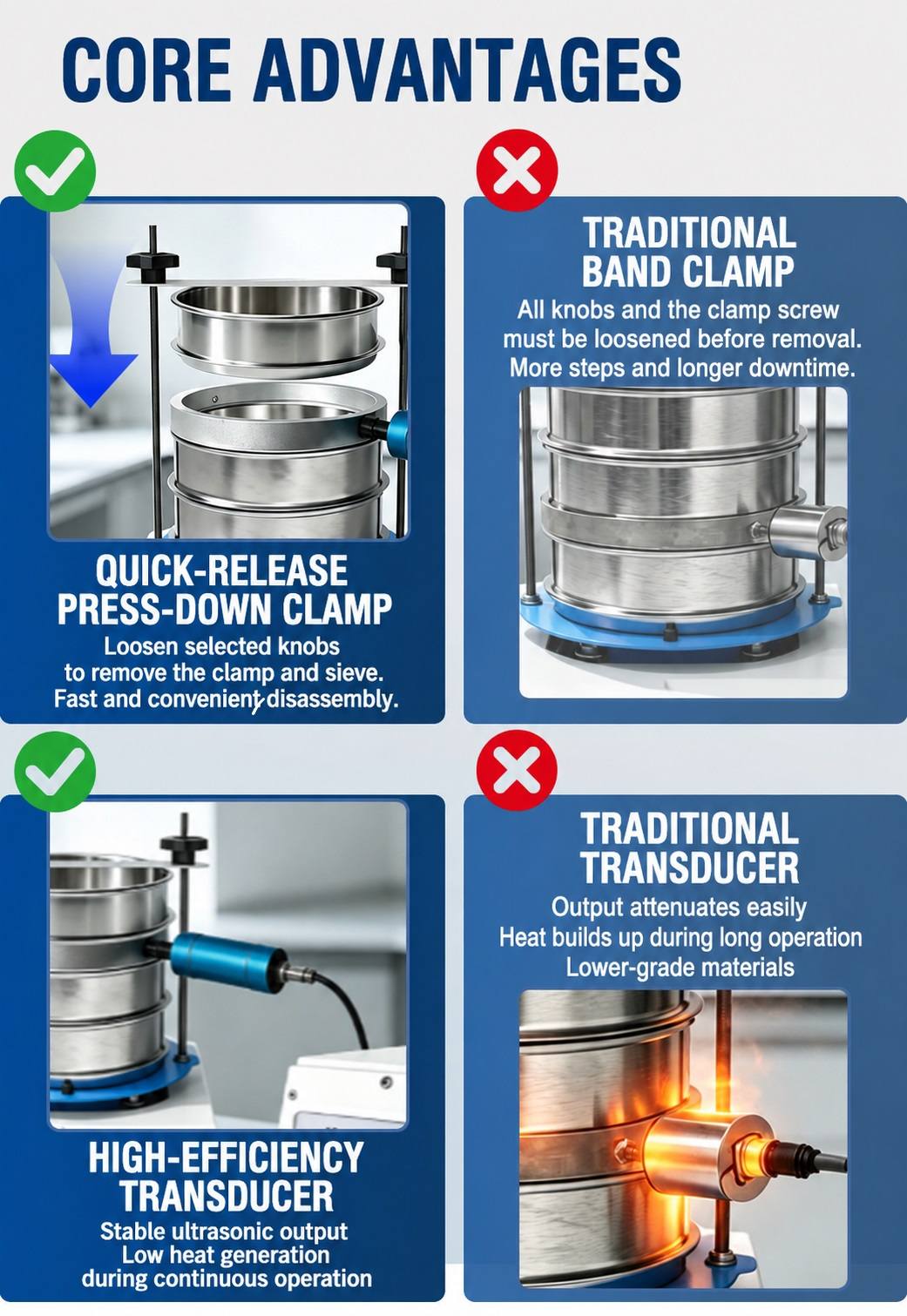

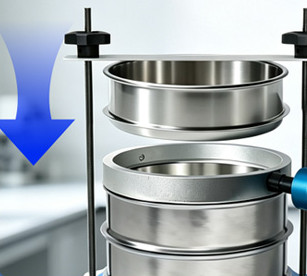

Press-Down Frame Handling
The dedicated frame uses a press-down seating concept. Operators can release the relevant fixing points and remove the frame more directly, avoiding unnecessary disassembly of a full clamping stack during routine access or product changeover.
Direct Operator Control

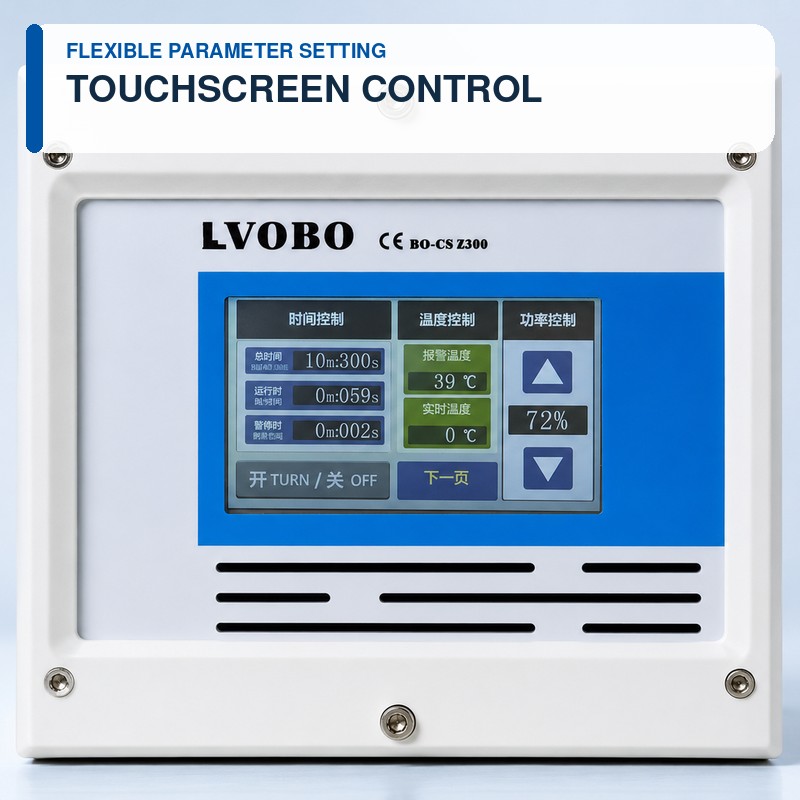

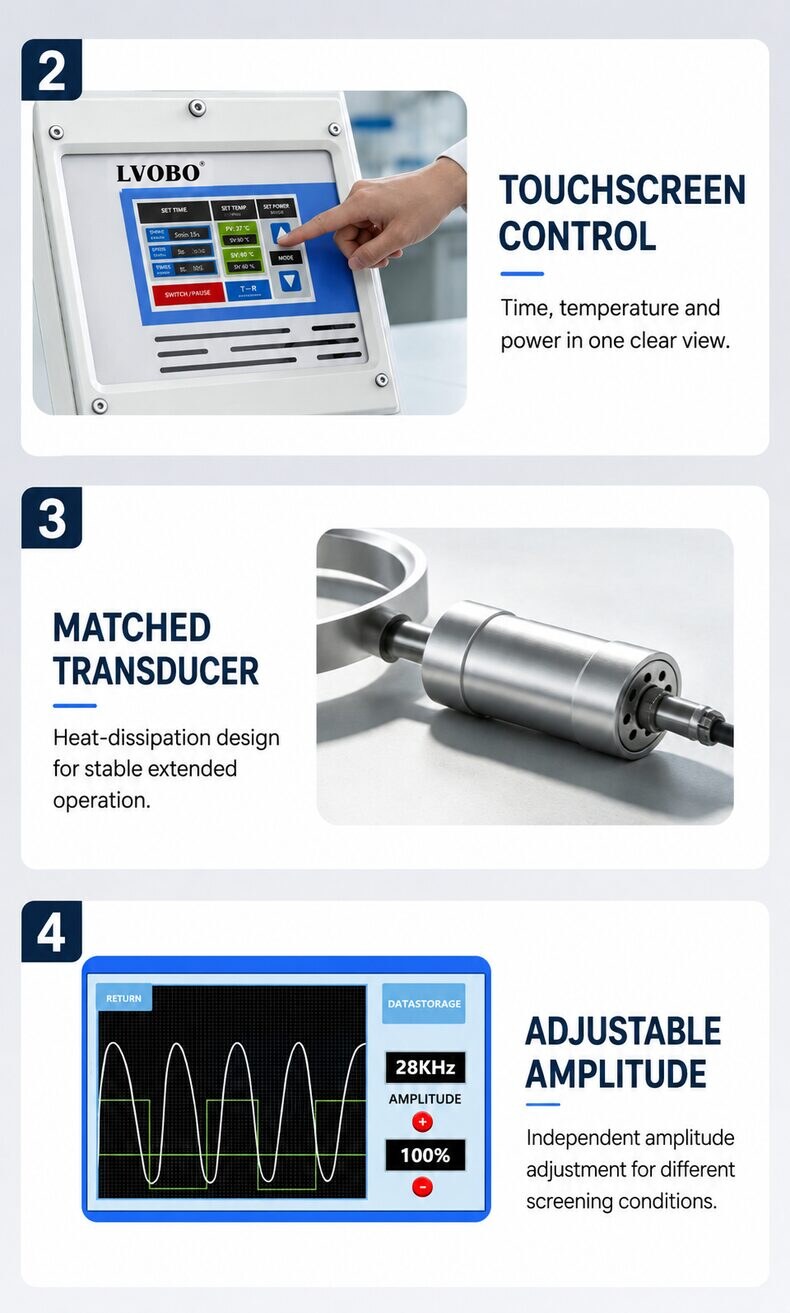

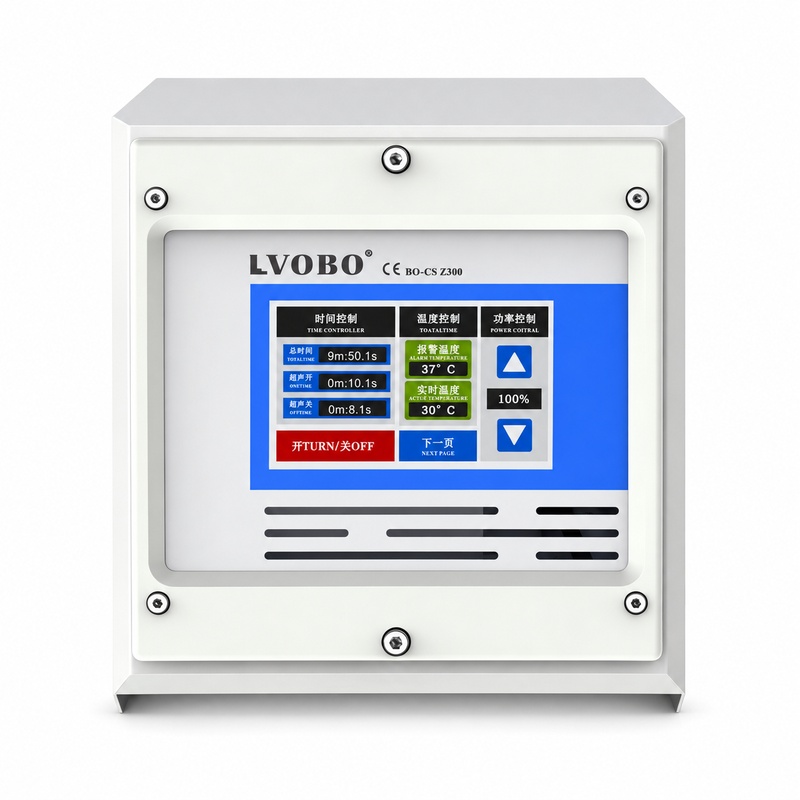

The control interface brings output adjustment and timing settings into one visual panel. Operators can evaluate continuous or intermittent operation according to the observed response of the actual powder.
Application Evaluation
Typical evaluation areas include metal powders, chemical materials, minerals, electronic and ceramic powders, and laboratory material research.

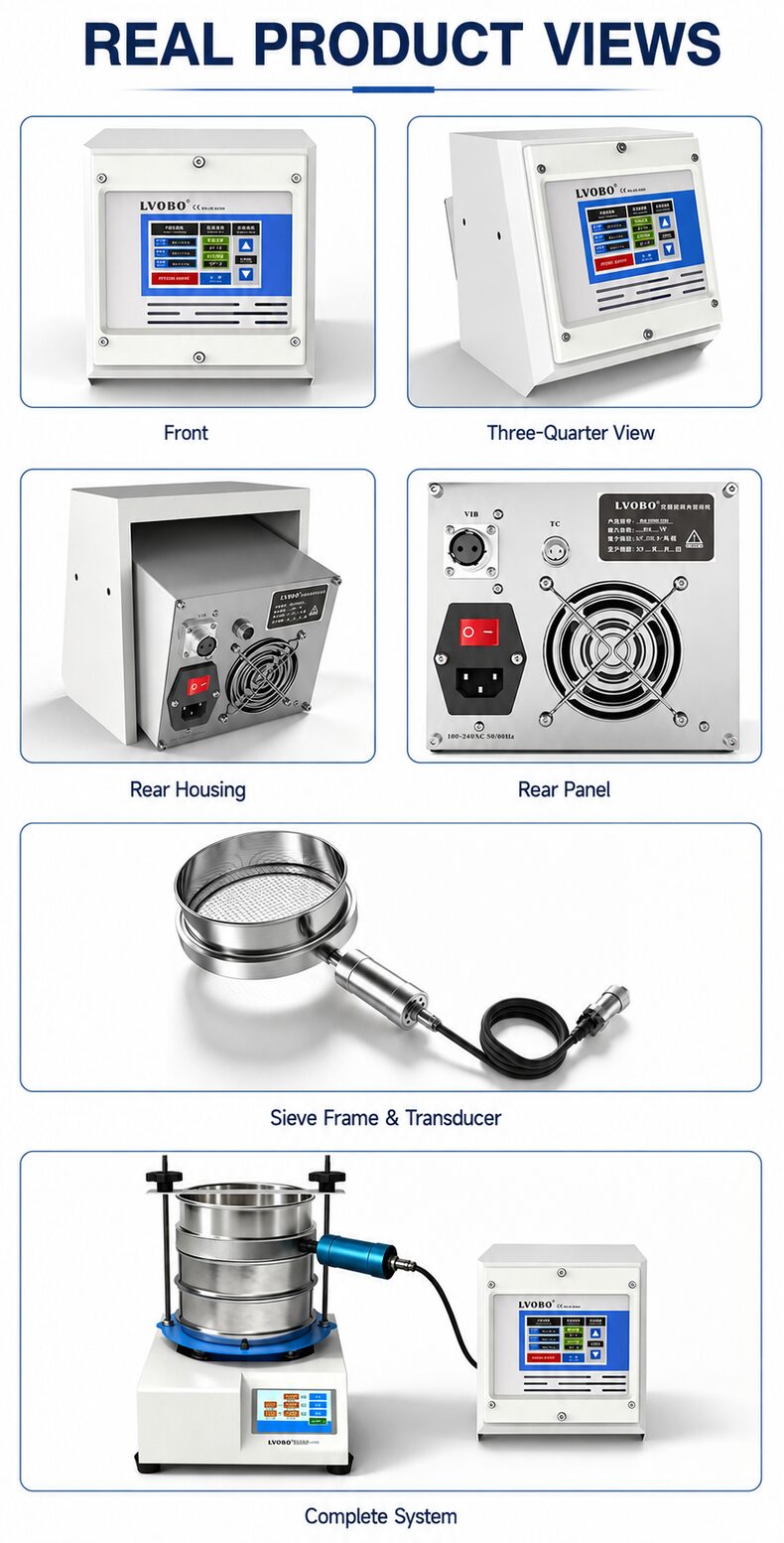

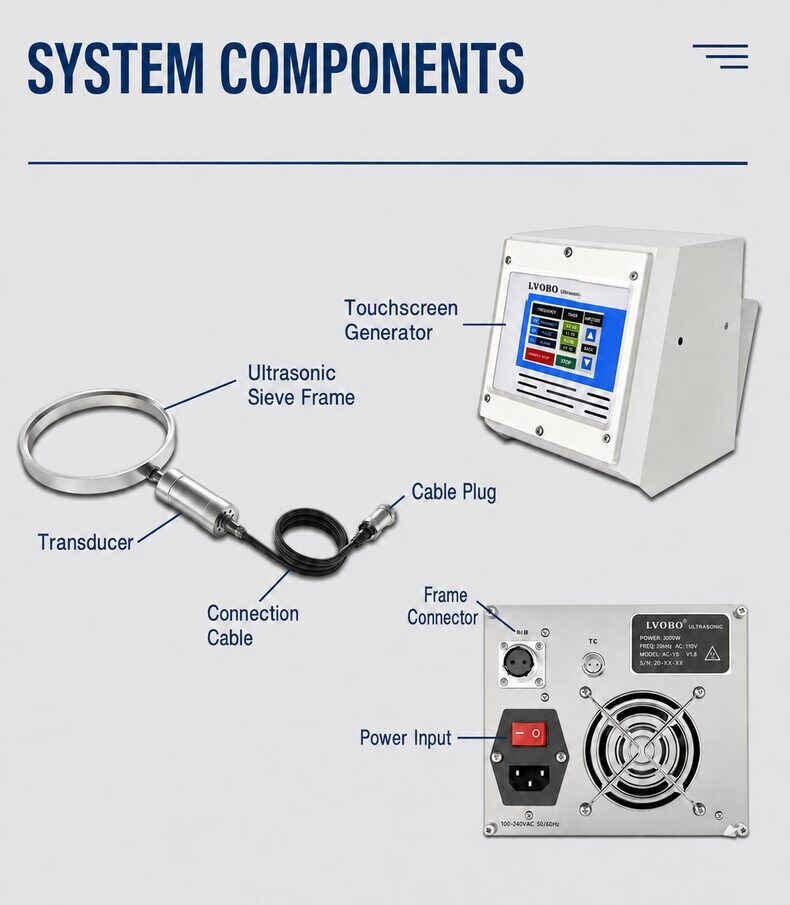

Clear System Architecture

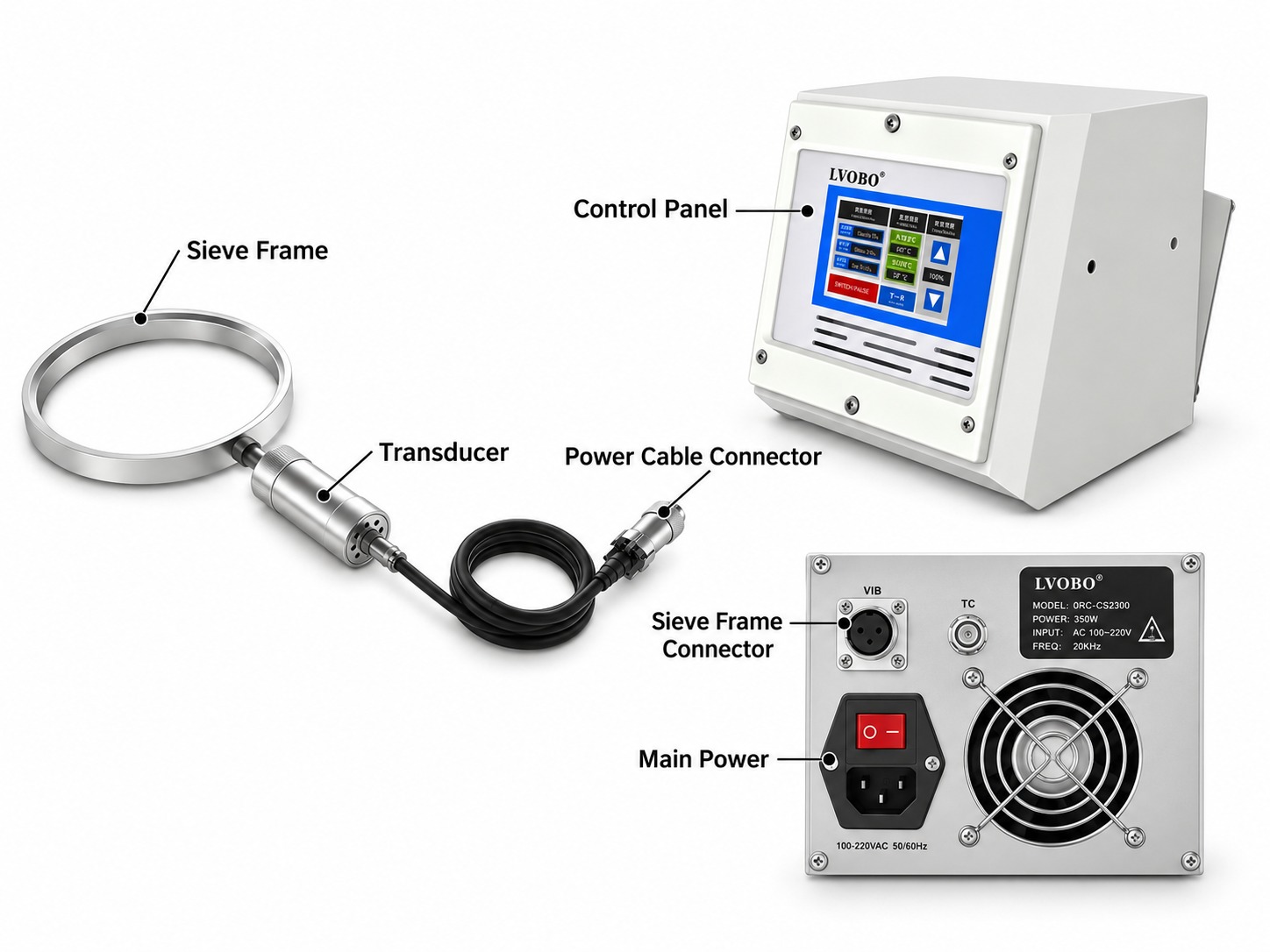

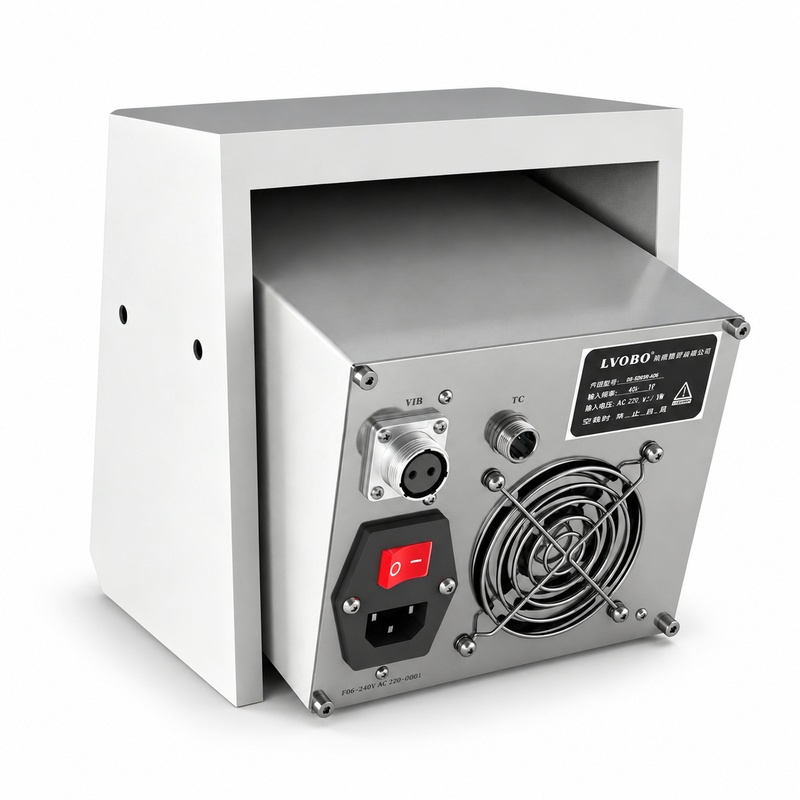

The front control panel, rear power and frame connections, transducer and dedicated sieve frame can be checked individually before installation. Sharing photos and dimensions of the existing equipment interface helps LVBO review the required connection more accurately.
Technical Reference
| Model Family | BO-CSZ200 / BO-CSZ300 |
|---|---|

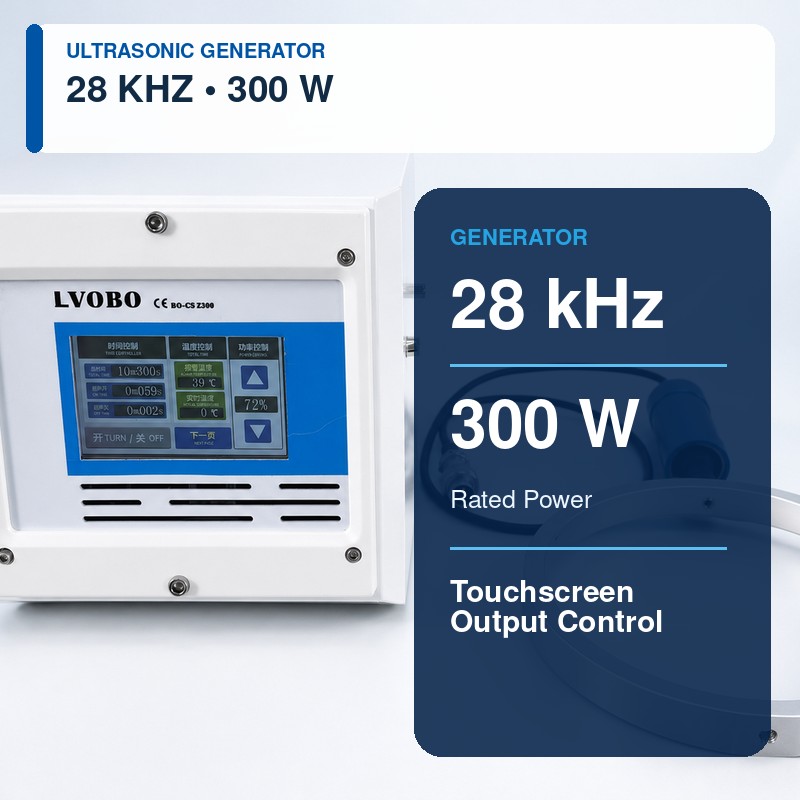

| Output Frequency | 28 kHz |
| Approx. Output Power | 300 W |
| Input Power | 350 W |
| Power Supply | AC100–220 V |

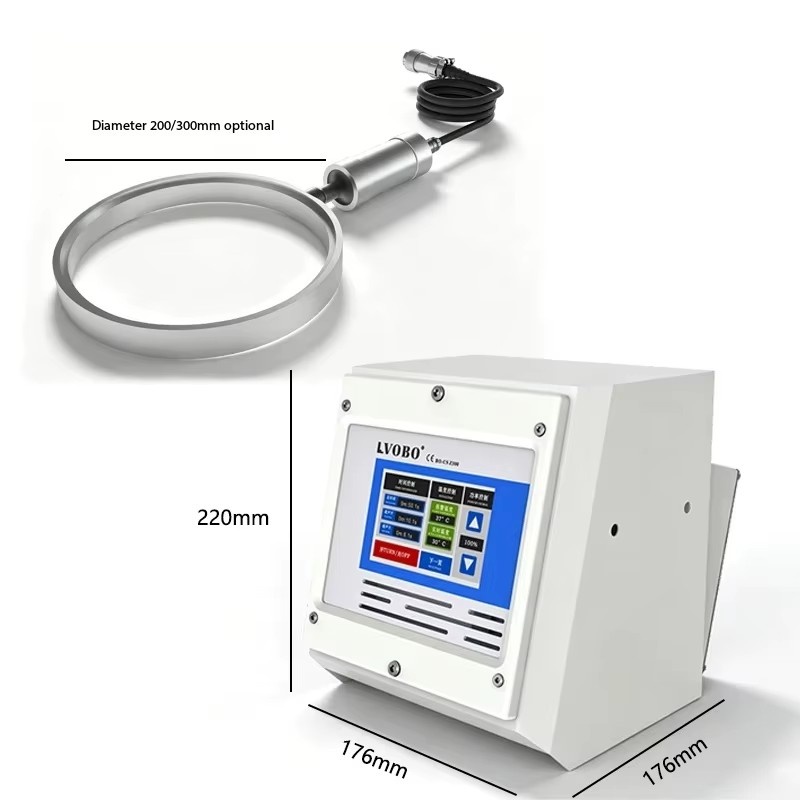

| Compatible Frame Diameter | Φ200 mm or Φ300 mm |
Standard Matched Set
One generator, one matched transducer, one connection cable, one power cable and one selected ultrasonic sieve frame are supplied as the standard set.
Sieve mesh is selected separately according to the powder and target aperture.
Send your material, target aperture and equipment-interface details for a configuration review.
