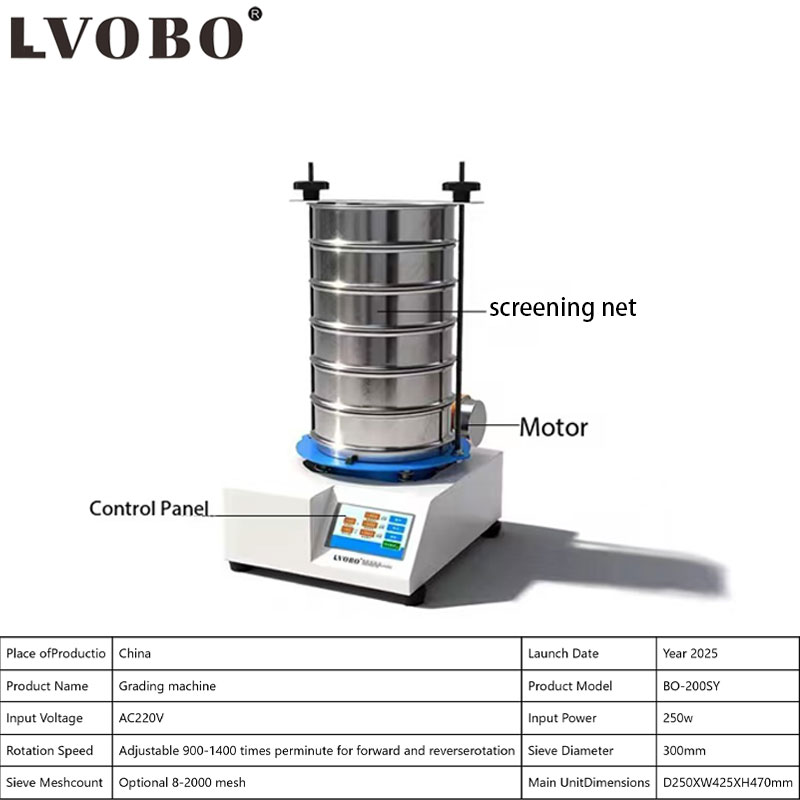

Multifunctional 200/300 Standard Laboratory Intelligent Touchscreen Vibrating Sieve
The experimental screening machine is a device used for screening, separating and classifying samples in alaboratory environment. It is widely used in chemistry, biology, medicine, food science and other fields, helpingresearchers to quickly and accurately separate samples with different particle sizes and characteristics.
Item No :
BO-200SYOrder(MOQ) :
1PCSPrice :
294$Product Origin :
ChinaColor :
customizableShipping Port :
xia menLead Time :
7 DaysWeight :
15KgPayment :
T/T
1. Particle Size Screening: It screens according to the particle size of the sample and supports a variety of screen specifications.
2. Automatic Separation: It automatically separates the samples into components of different particle sizes.
3. Timing Operation: The screening time can be set to achieve automatic operation.
4. Vibration Frequency Adjustment: It supports the adjustment of vibration frequency to meet the screening needs of different samples.
5. Noise Control: It has a low - noise design, making it suitable for the laboratory environment.
6. Mesh specifications: diameter 300mm, mesh aperture can be flexibly selected within the range of 0.1mm-5mm to meet the screening requirements of different material particle sizes.
7. Rotation frequency: range 0-108 times/minute,
3. Processing capacity: Depending on the type, particle size, and screening requirements of the materials, the processing capacity may vary between 5-100 kilograms per hour.

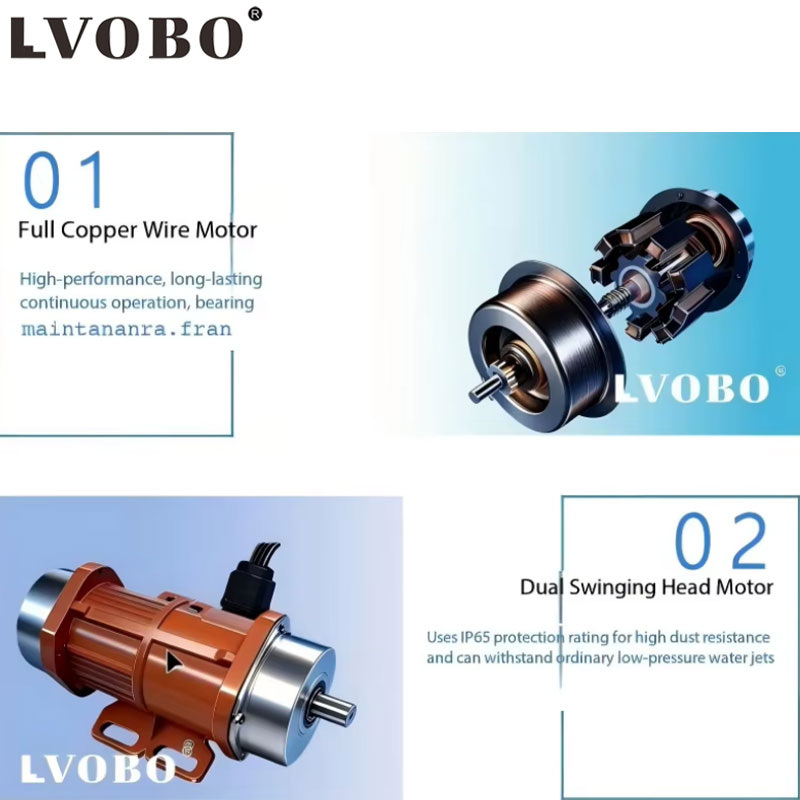

8. Motor power: The power of the vibration motor is 0.25kW, ensuring stable and sufficient power for the vibrating screen while also considering energy-saving needs.
--------------占位---------------

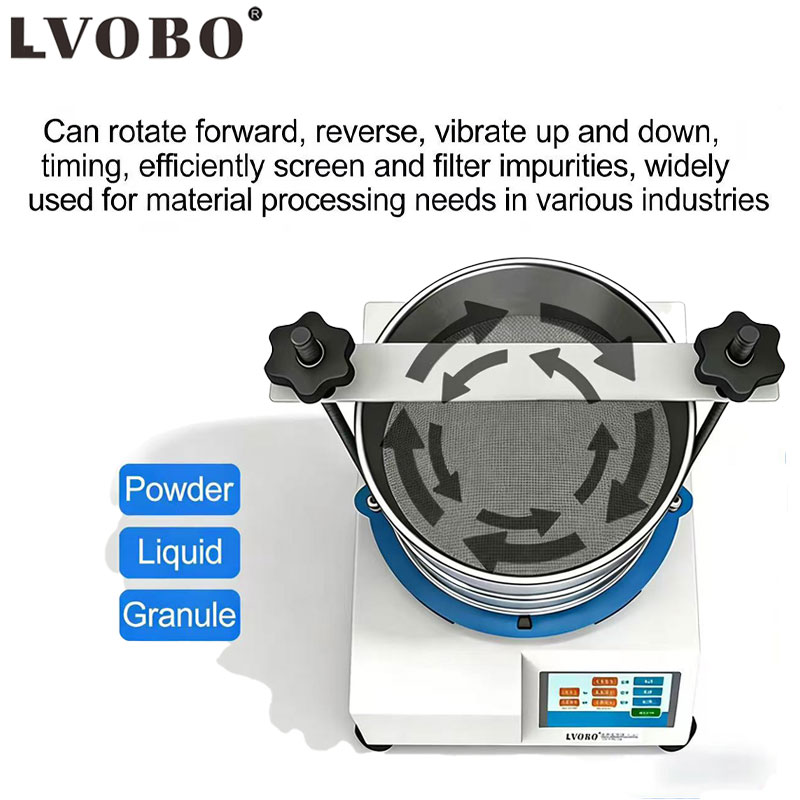

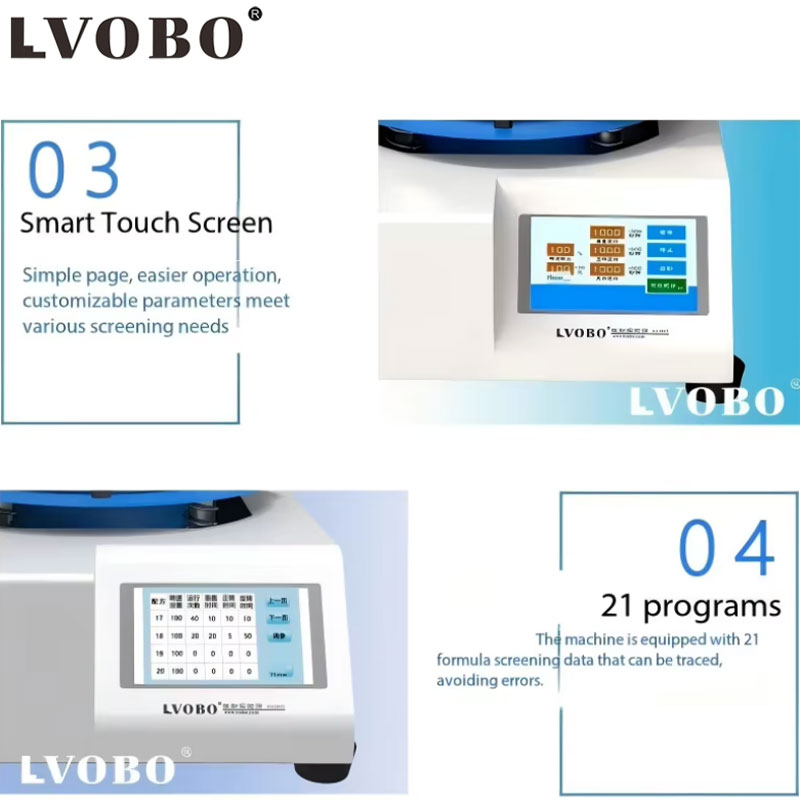

9.Microcomputer Intelligent Control enables arbitrary setting of
the forward, reverse, up and down vibration time, as well as
the forward, reverse, and vibration frequency.
--------------占位---------------

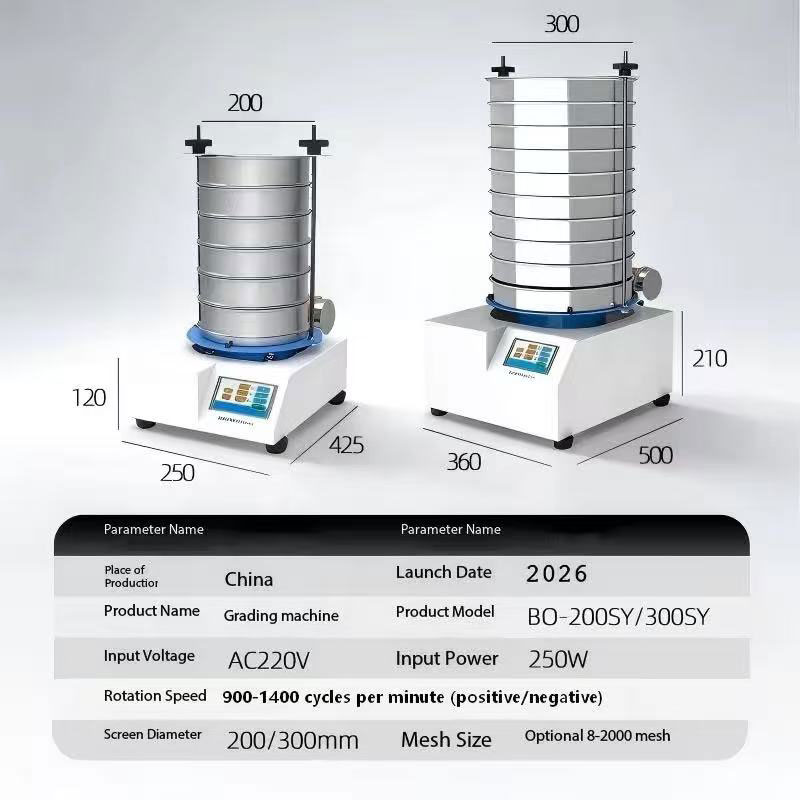

Technical Parameter:| The parameter name | Parameter details | The parameter name | Parameter details |
| Manufacturing ground | China | Time to market | In2026 |
| Product name | Graded screening machine | Product model | Bo-200/300 sy |
| Input voltage | AC110V / 220V / 380V is optional | Interiorinput power | 25w |
| Shake frequency | 0-108 times/min adjustable | Screen diameter | 300mm |

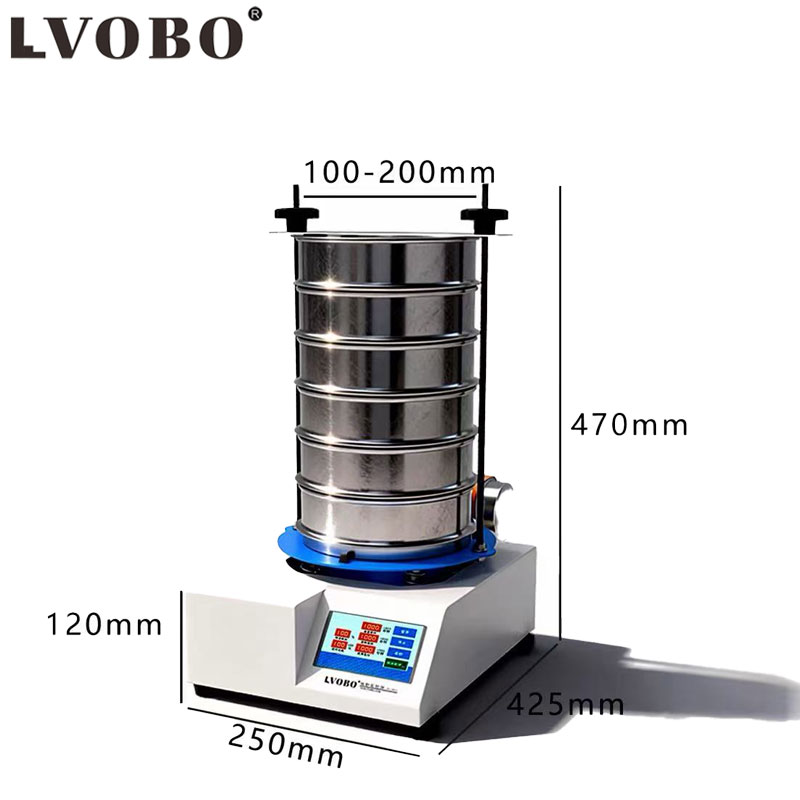

| Sieve mesh number | Optional 8-200 entries | Host size | D400×W450×H285mm |
| Description of mesh number | |||||||||
| Mesh number | |||||||||
|
|||||||||
| Screen mesh number reference | |||||||||
| food |
|
||||||||
| industrial |
|
||||||||
| Mesh number | Aperture (mm) | Mesh number | Aperture (mm) | Mesh number | Aperture (mm) |
| 2mesh | 12.5 | 45mesh | 0.4 | 220mesh | 0.065 |
| 3mesh | 8 | 50mesh | 0.355 | 240mesh | 0.063 |
| 4mesh | 6 | 55mesh | 0.315 | 250mesh | 0.061 |
| 5mesh | 5 | 60mesh | 0.28 | 280mesh | 0.055 |
| 6mesh | 4 | 65mesh | 0.25 | 300mesh | 0.05 |
| 8mesh | 3 | 70mesh | 0.224 | 320mesh | 0.045 |
| 10mesh | 2 | 75mesh | 0.2 | 325mesh | 0.043 |
| 12mesh | 1.6 | 80mesh | 0.18 | 340mesh | 0.041 |
| 14mesh | 1.43 | 90mesh | 0.16 | 360mesh | 0.04 |
| 16mesh | 1.25 | 100mesh | 0.154 | 400mesh | 0.0385 |
| 18mesh | 1 | 110mesh | 0.15 | 500mesh | 0.0308 |
| 20mesh | 0.9 | 120mesh | 0.125 | 600mesh | 0.026 |
| 24mesh | 0.8 | 130mesh | 0.112 | 800mesh | 0.022 |
| 26mesh | 0.71 | 140mesh | 0.105 | 900mesh | 0.02 |
| 28mesh | 0.68 | 150mesh | 0.1 | 1000mesh | 0.015 |
| 30mesh | 0.6 | 160mesh | 0.096 | 1800mesh | 0.01 |
| 32mesh | 0.58 | 180mesh | 0.09 | 2000mesh | 0.008 |
| 35mesh | 0.5 | 190mesh | 0.08 | 2300mesh | 0.005 |
| 40mesh | 0.45 | 200mesh | 0.074 | 2800mesh | 0.003 |
The experimental screening machine is a device used for screening, separating and classifying samples in alaboratory environment. It is widely used in chemistry, biology, medicine, food science and other fields, helpingresearchers to quickly and accurately separate samples with different particle sizes and characteristics.
