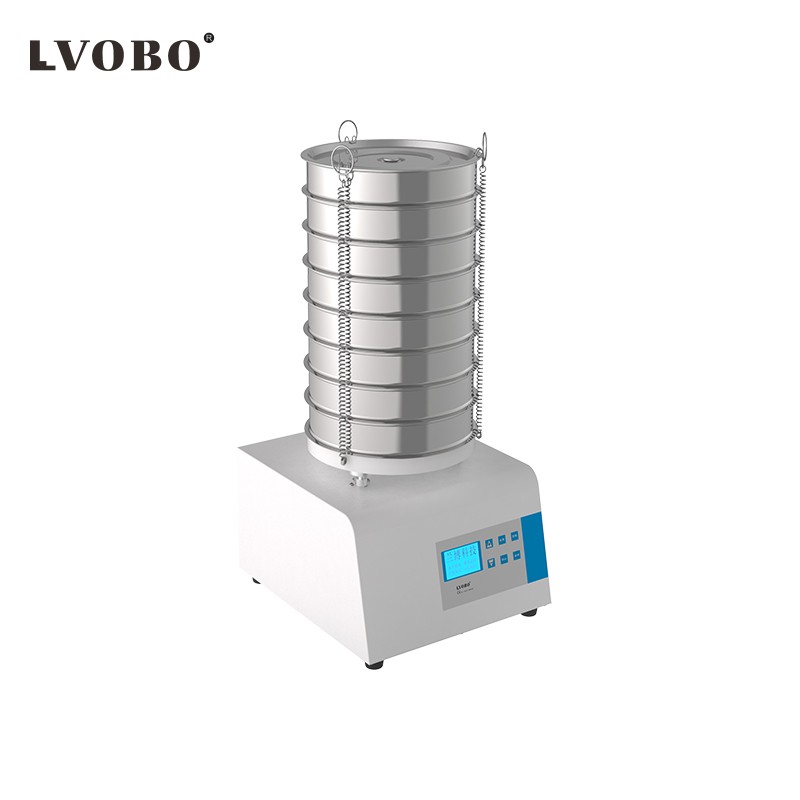

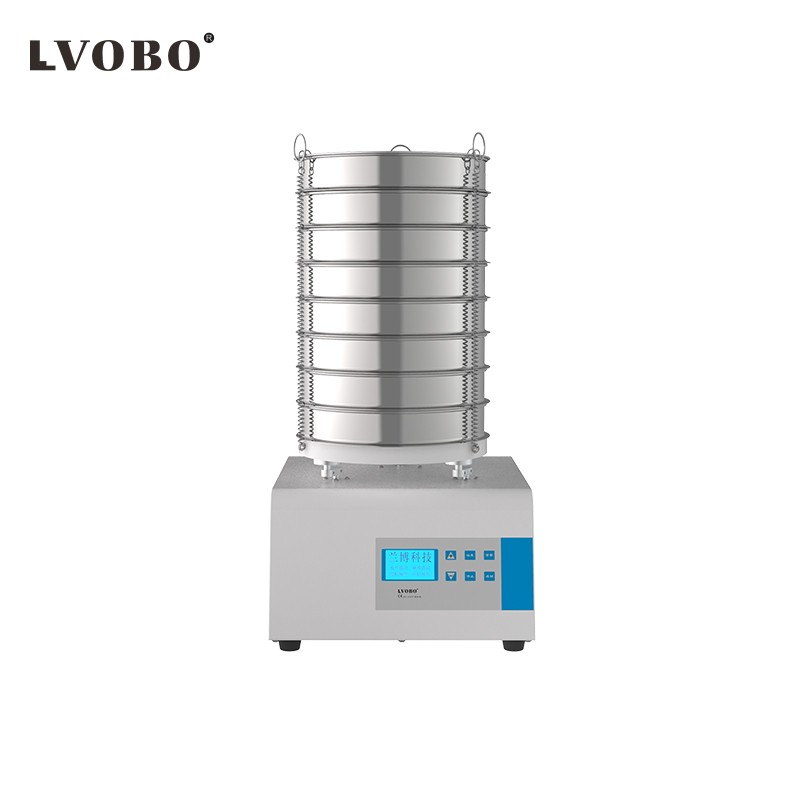

Experimental screening machine is a device used for screening, separating, and classifying samples in laboratory environments. It is widely used in fields such as chemistry, biology, medicine, and food science, helping researchers quickly and accurately separate samples with different particle sizes or characteristics.
Item No :
BO-200SYOrder(MOQ) :
1PCSPrice :
$:223Product Origin :
ChinaColor :
customizableShipping Port :
xia menLead Time :
7 DaysWeight :
22kgPayment :
T/T
Function:
Particle size screening: Screening is performed based on the particle size of the sample, supporting multiple sieve specifications.
Automatic separation: Automatically separate the sample into components of different particle sizes.
Timed operation: The filtering time can be set to achieve automated operation.
Vibration frequency adjustment: Supports the adjustment of vibration frequency to meet the screening needs of different samples.
Noise control: Low noise design, suitable for laboratory environments.

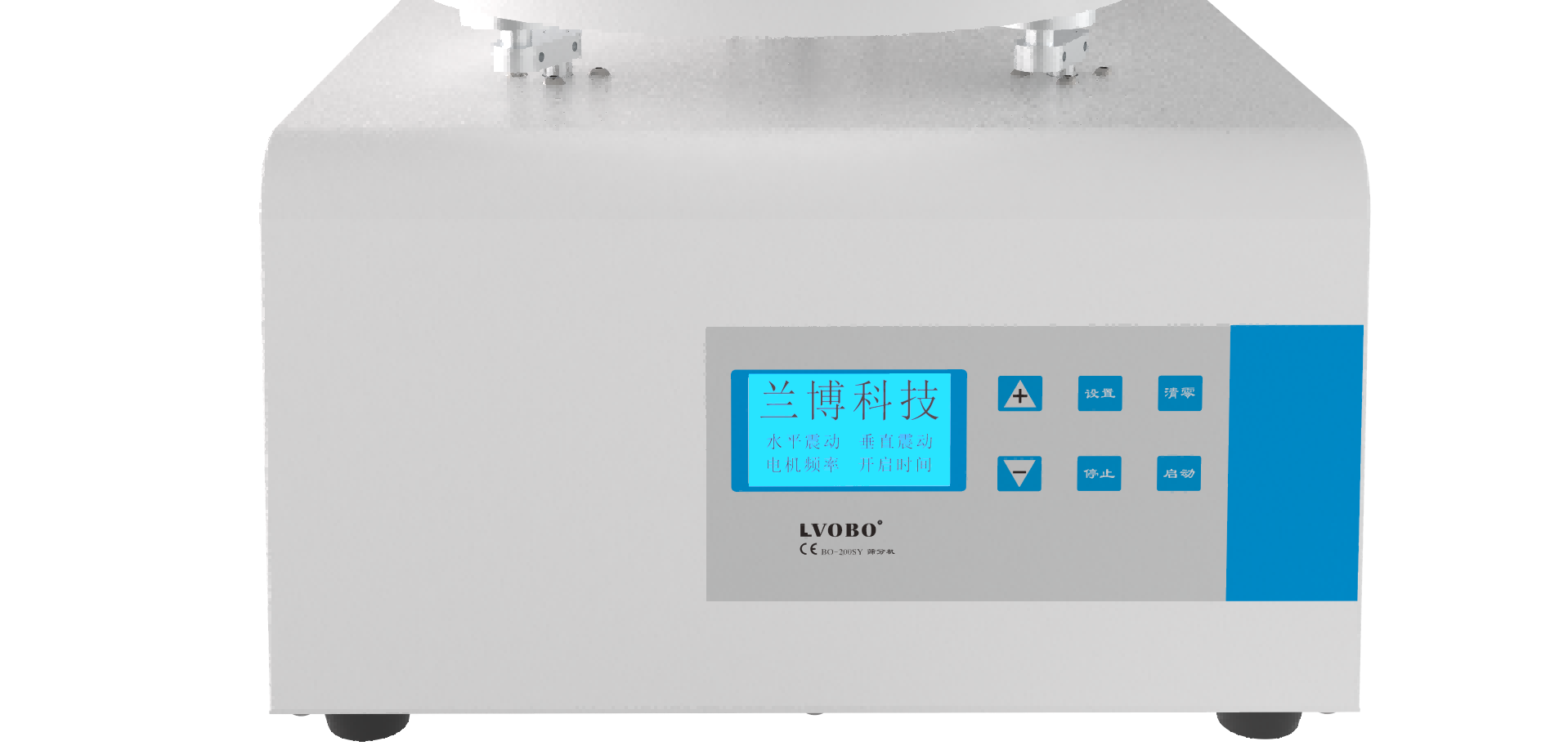

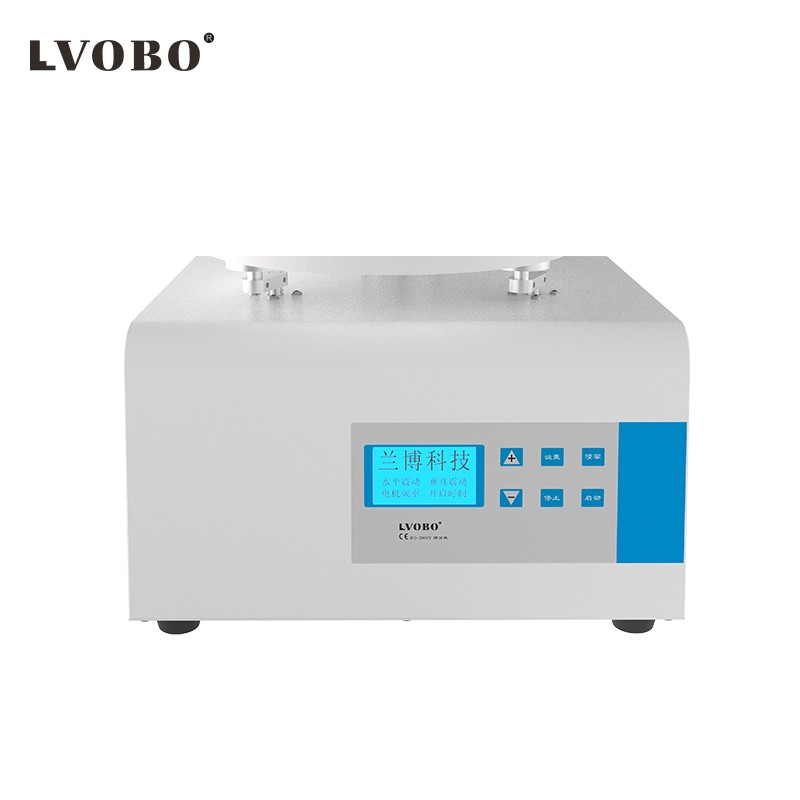

Microcomputer intelligent control can freely set forward, reverse, and vibration time, as well as forward, reverse, and vibration frequency.

Technical Specifications:
1. Mesh specifications: diameter 300mm, mesh aperture can be flexibly selected within the range of 0.1mm-5mm to meet the screening requirements of different material particle sizes.
2. Rotation frequency: range 0-108 times/minute,
3. Processing capacity: Depending on the type, particle size, and screening requirements of the materials, the processing capacity may vary between 5-100 kilograms per hour.
4. Motor power: The power of the vibration motor is 0.25kW, ensuring stable and sufficient power for the vibrating screen while also considering energy-saving needs.
|
The parameter name |
Parameter details |
The parameter name |
Parameter details |
|
Manufacturing ground |
China |
Time to market |
In 2025 |
|
Product name |
Graded screening machine |
Product model |
BO-200SY |
|
Input voltage |
AC110V / 220V / 380V is optional |
Interiorinput power |
25W |
|
Shake frequency |
0-108 times/min adjustable |
Screen diameter |
300mm |
|
Sieve mesh number |
Optional 8-200 entries |
Host size |
D400×W450×H285mm |
|
Description of mesh number |
||
|
Mesh number |
||
|
The larger the number of mesh, the smaller the material particles: |
||
|
Screen mesh number reference |
||
|
food |
Grain flour 20-50 mesh |
Chinese medicine powder 60-80 mesh |
|
Filter soy milk for 50-100 mesh |
Thread powder 100-140 mesh |
|
|
Flour 40-60 mesh |
Pearl powder 120-180 mesh |
|
|
Douhua douzhe filter 60-140 mesh |
|
|
|
industrial |
Spray plastic powder 120-140 mesh |
Ceramic mud 50-60 mesh |
|
3D printing 316 powder 300-500 mesh |
Cellulose 80-100 mesh |
|
|
Ceramic glaze material 60-80 mesh |
Paint 100-200 mesh |
|
|
Lead powder 60-120 mesh |
Beanstalk filter 140-180 mesh |
|
|
Screen size and mesh comparison table |
|||||
|
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
|
2mesh |
12.5 |
45mesh |
0.4 |
220mesh |
0.065 |
|
3mesh |
8 |
50mesh |
0.355 |
240mesh |
0.063 |
|
4mesh |
6 |
55mesh |
0.315 |
250mesh |
0.061 |
|
5mesh |
5 |
60mesh |
0.28 |
280mesh |
0.055 |
|
6mesh |
4 |
65mesh |
0.25 |
300mesh |
0.05 |
|
8mesh |
3 |
70mesh |
0.224 |
320mesh |
0.045 |
|
10mesh |
2 |
75mesh |
0.2 |
325mesh |
0.043 |
|
12mesh |
1.6 |
80mesh |
0.18 |
340mesh |
0.041 |
|
14mesh |
1.43 |
90mesh |
0.16 |
360mesh |
0.04 |
|
16mesh |
1.25 |
100mesh |
0.154 |
400mesh |
0.0385 |
|
18mesh |
1 |
110mesh |
0.15 |
500mesh |
0.0308 |
|
20mesh |
0.9 |
120mesh |
0.125 |
600mesh |
0.026 |
|
24mesh |
0.8 |
130mesh |
0.112 |
800mesh |
0.022 |
|
26mesh |
0.71 |
140mesh |
0.105 |
900mesh |
0.02 |
|
28mesh |
0.68 |
150mesh |
0.1 |
1000mesh |
0.015 |
|
30mesh |
0.6 |
160mesh |
0.096 |
1800mesh |
0.01 |
|
32mesh |
0.58 |
180mesh |
0.09 |
2000mesh |
0.008 |
|
35mesh |
0.5 |
190mesh |
0.08 |
2300mesh |
0.005 |
|
40mesh |
0.45 |
200mesh |
0.074 |
2800mesh |
0.003 |
