The LVOBO BO-UCH300F is a 250 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports 5–300 mL processing volumes with suitable probe configurations, including a standard Φ6 mm titanium alloy probe. The split-type system combines touchscreen control, an enclosed sonication chamber and a motorized sample lift. With adjustable ultrasonic power, continuous and pulse operation, temperature monitoring and alarm functions, the BO-UCH300F provides flexible control for laboratory ultrasonic processing.
Item No :
BO-UCH300FOrder(MOQ) :
1Price :
$975Product Origin :
ChinaShipping Port :
XiaMenLead Time :
7DaysWeight :
17KGPayment :
T/TThe processing range requires a suitable probe configuration.
For laboratory sample volumes up to 300 mL with a suitable probe configuration.
A mid-low power configuration for liquid-phase laboratory processing within this model’s specified volume range.

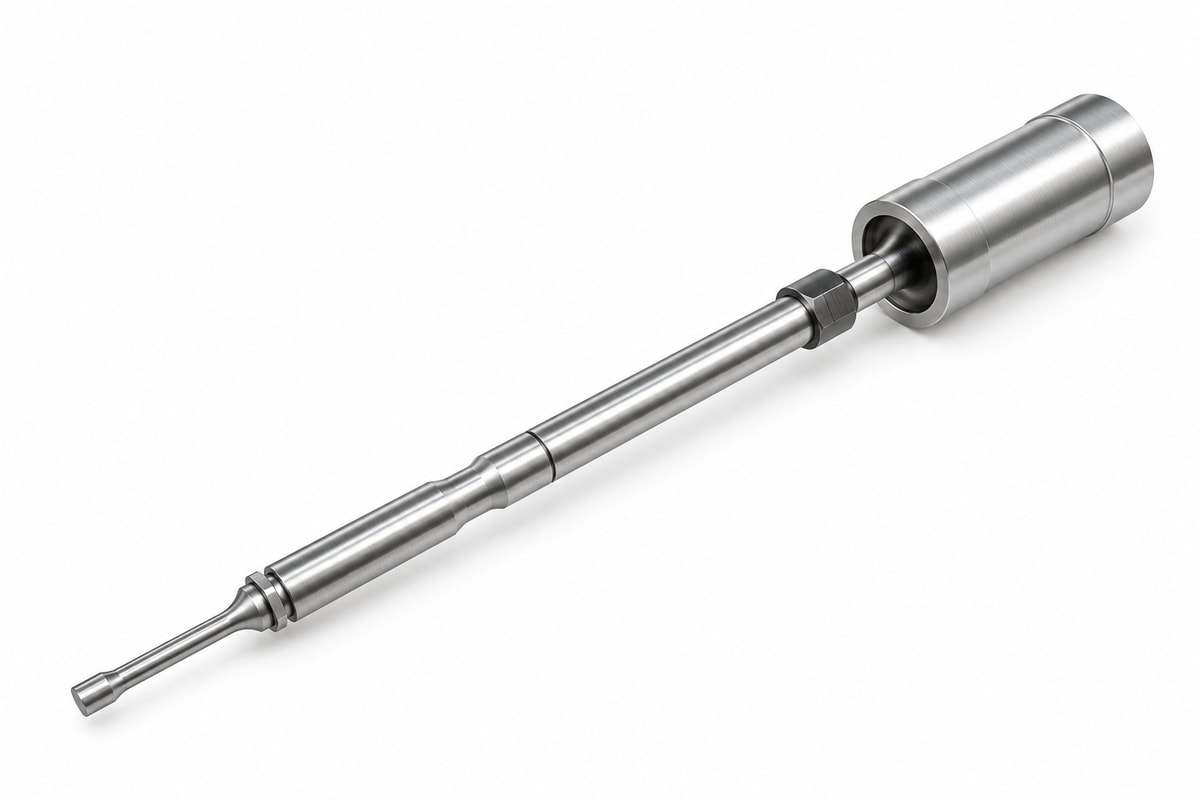

Supplied with a titanium alloy probe, with optional diameters for different vessels and processing tasks.
Shares the enclosure dimensions, separate control unit and core operating functions of the series.
Different probe diameters can be selected according to sample volume, vessel geometry and application requirements.
Need help selecting a probe?
Provide your sample type, sample volume, vessel dimensions and application.
| Parameter | Specification |
|---|---|
| Model | BO-UCH300F |
| Ultrasonic Power | 250 W |
| Processing Range | 5–300 mL |
| Power Adjustment | 0–100% |
| Ultrasonic Frequency | 20–25 kHz |
| Total Working Time | 0–999 min |
| Output Time | 0.1 s–999 min |
| Interval Time | 0.1 s–999 min |
| Sonication Modes | Continuous / Pulse / Intermittent |

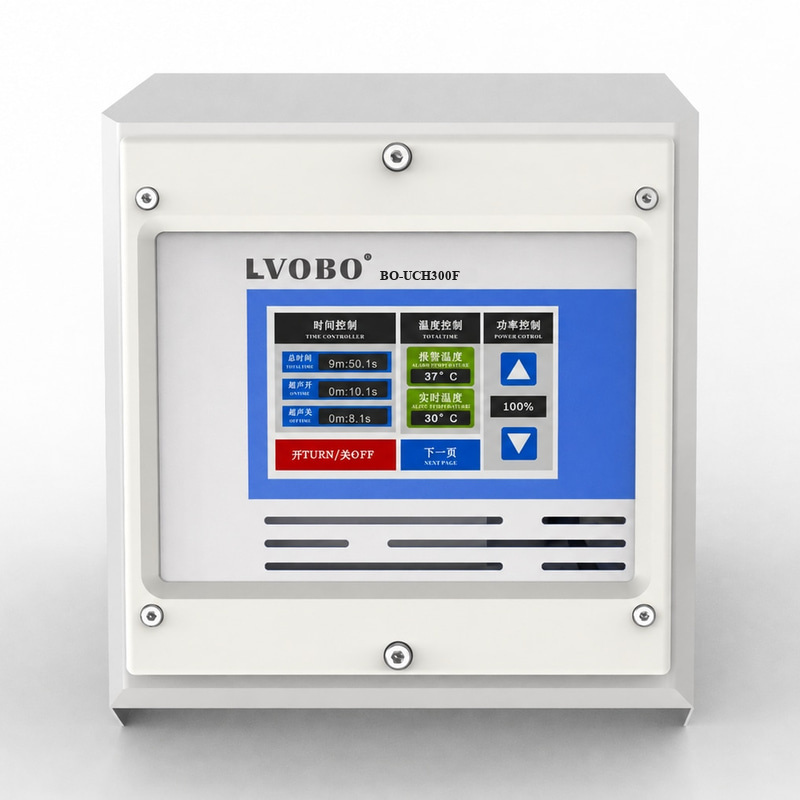

| Display / Control | Touchscreen |
| Motorized Sample Lift | Yes |
| Probe Material | Titanium Alloy |
| Standard Probe | Φ6 mm |
| Optional Probe Sizes | Φ2 / Φ3 / Φ8 / Φ10 mm |
| Temperature Monitoring | Yes |
| Temperature Alarm Setting | 0–99°C |
| Over-Temperature Alarm | Automatic alarm when the configured temperature limit is reached |
| Program / Recipe Memory | Yes |
| Overload Protection | Yes |

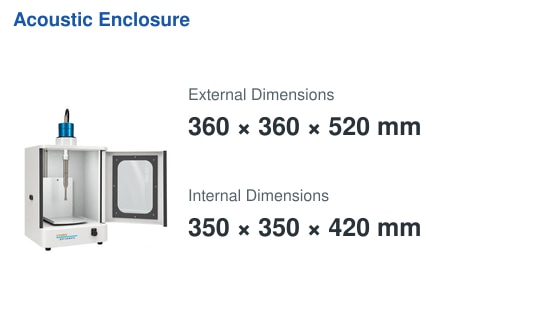

| Acoustic Enclosure External Dimensions | 360 × 360 × 520 mm |
| Acoustic Enclosure Internal Dimensions | 350 × 350 × 420 mm |

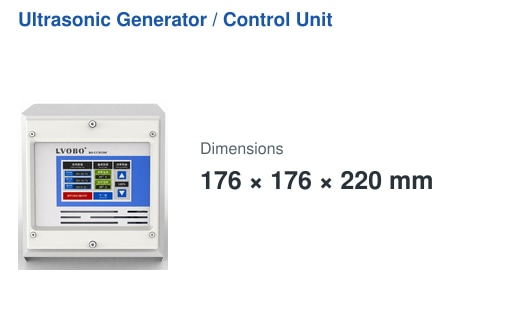

| Ultrasonic Generator / Control Unit Dimensions | 176 × 176 × 220 mm |
| Net Weight | 17 kg |
| Power Supply | AC 100–240 V, 50/60 Hz |
Processing suitability depends on the sample, vessel and selected probe configuration.
All BO-UCH-F models share the same enclosure and control-unit dimensions. Model selection is based primarily on ultrasonic power, processing range and probe configuration rather than machine size.
BO-UCH300F shares these core platform features and the same enclosure dimensions with the other BO-UCH-F models.
Other BO-UCH-F models are available for different power and processing-range requirements.
Full model selection is covered in the BO-UCH-F series overview.
Examples of laboratory processing tasks include:
Application suitability depends on sample characteristics, processing volume, vessel geometry and probe configuration.
A broader overview of applications and model selection is available in the BO-UCH-F series overview.
The BO-UCH300F supports a 5–300 mL processing range with a suitable probe configuration.
A Φ6 mm titanium alloy probe is supplied as the standard configuration.
Φ2 mm, Φ3 mm, Φ8 mm and Φ10 mm probe options are available for the BO-UCH300F.
No. The BO-UCH-F models share the same enclosure and control-unit dimensions. The main differences between models are ultrasonic power, processing range and probe configuration.
Please provide the sample type, sample volume, vessel dimensions and intended application so that LVOBO can recommend a suitable probe configuration.
Share your sample type, sample volume, vessel dimensions and intended application. LVOBO can help recommend a suitable model and probe configuration.
