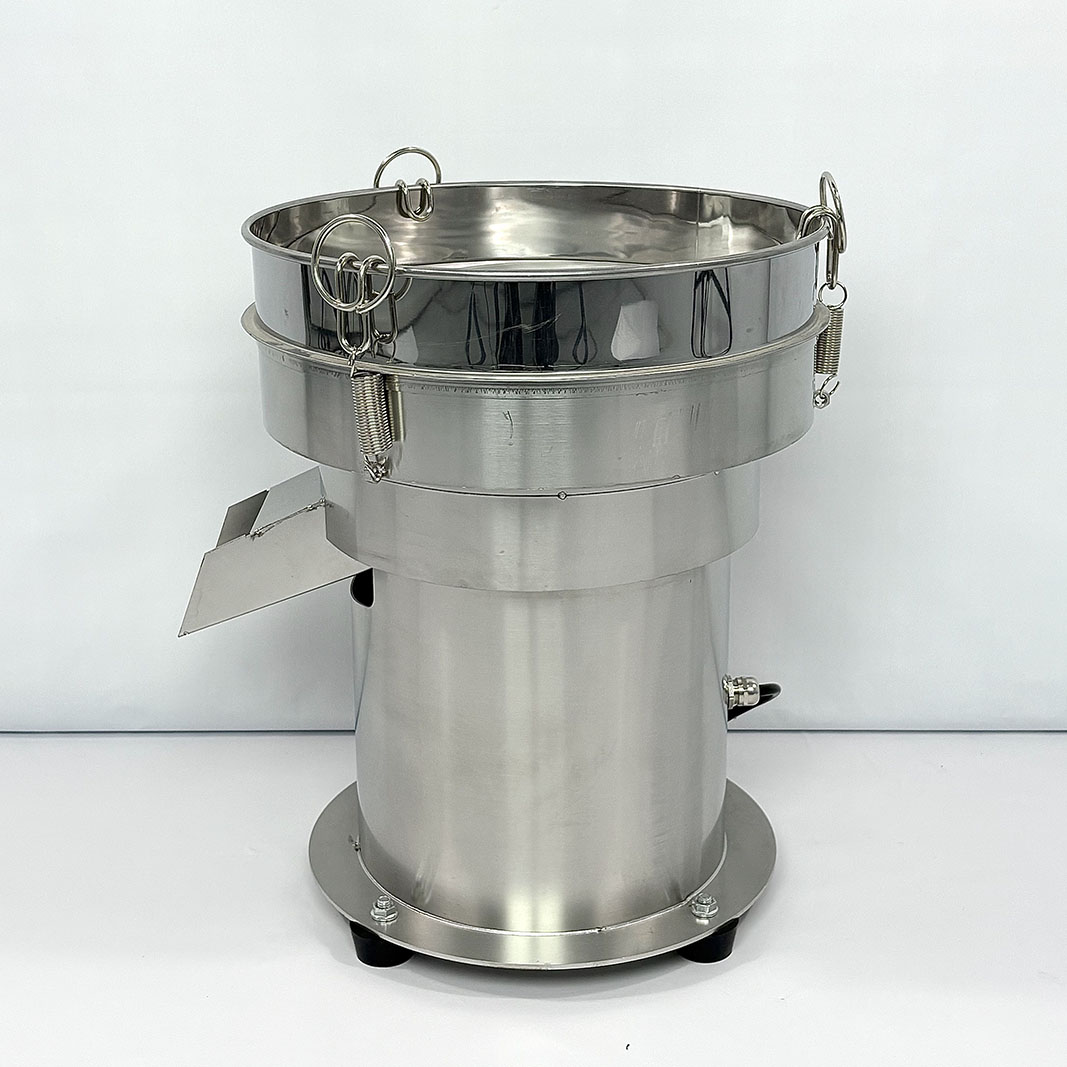

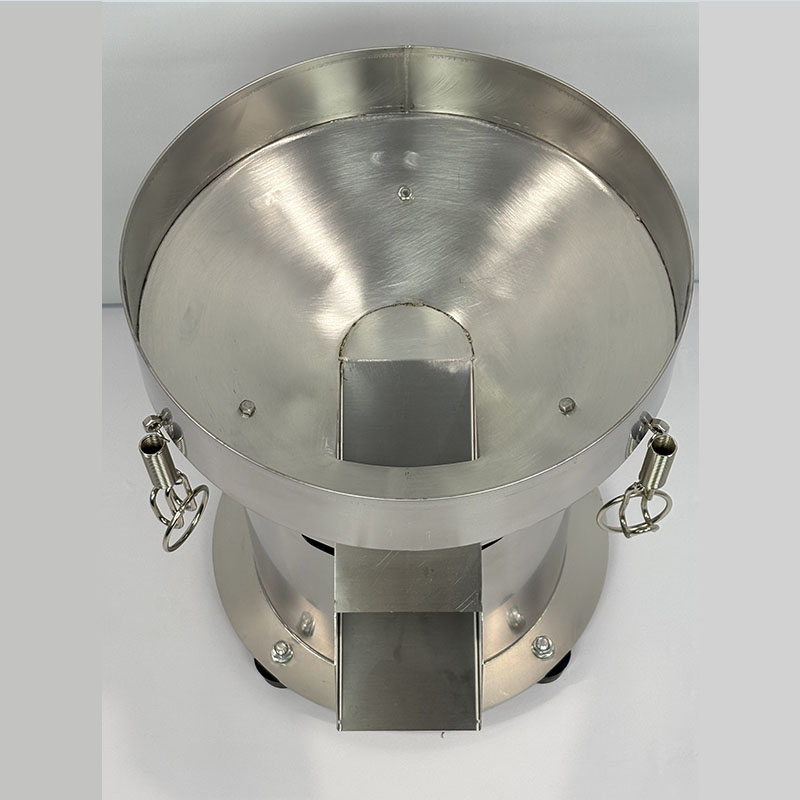

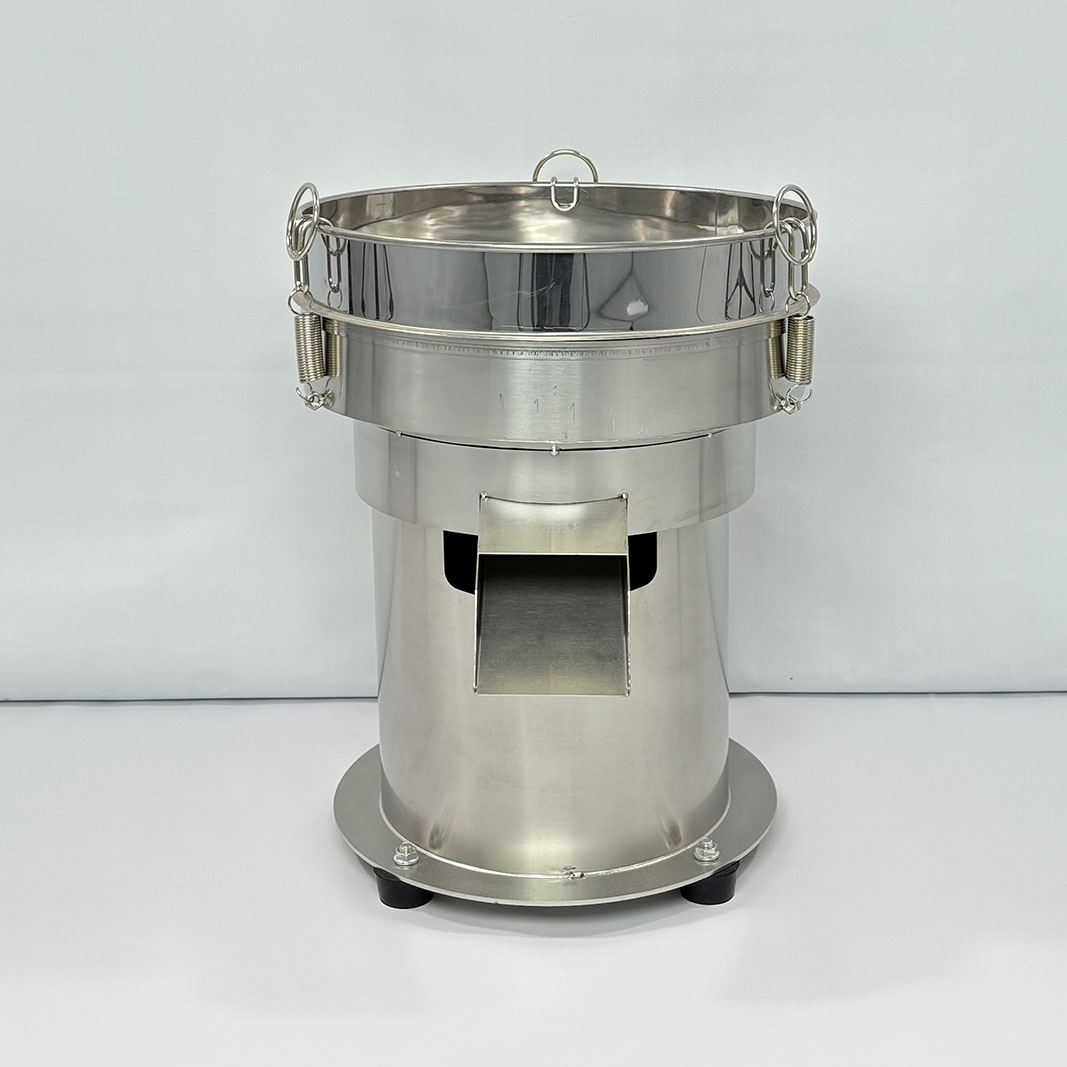

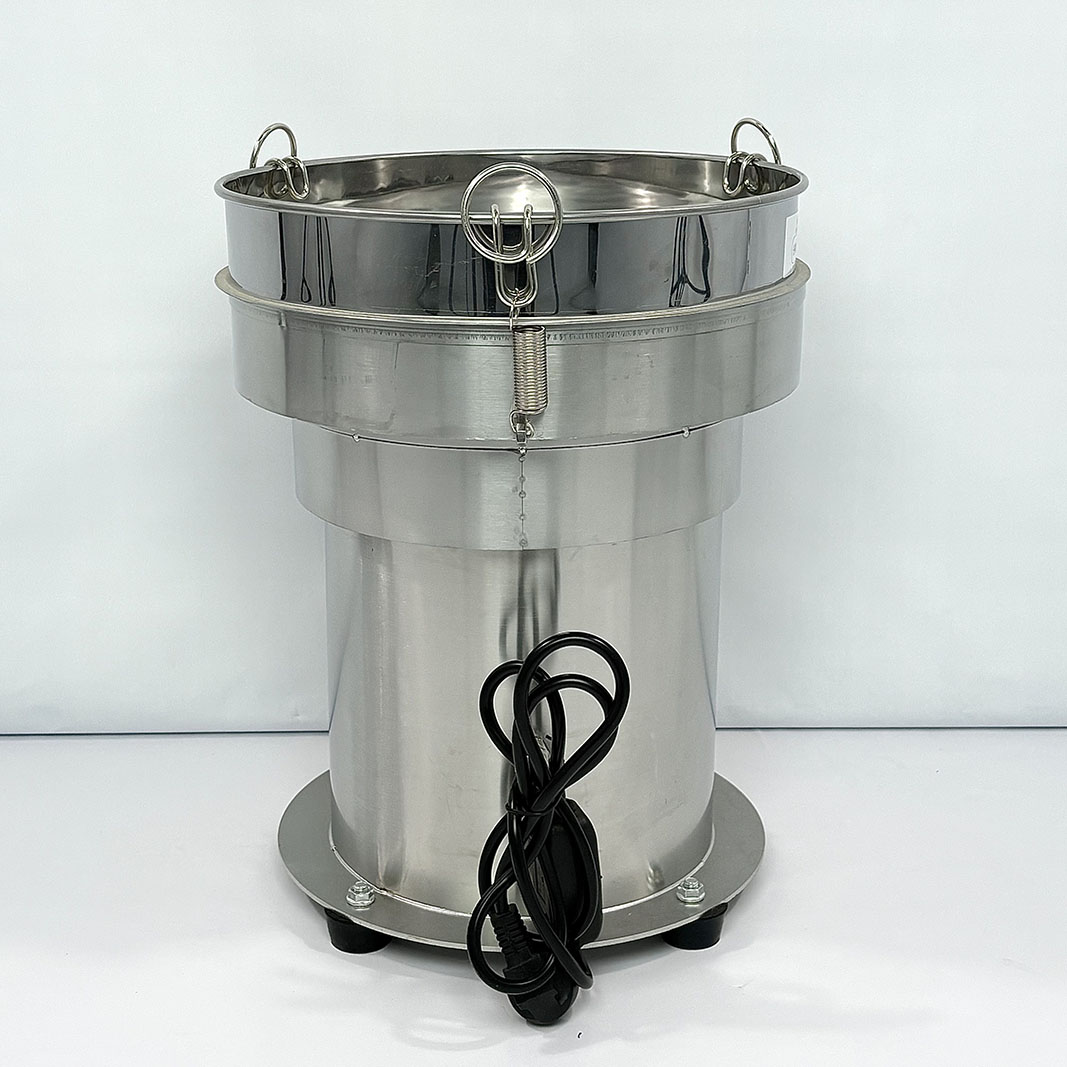

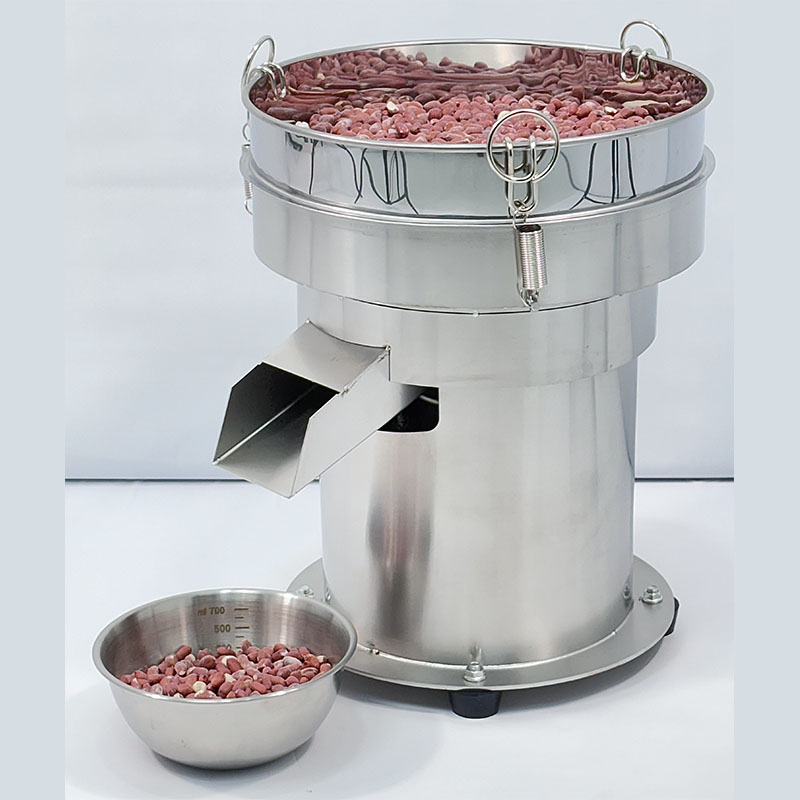

Good Price and High Efficiency Plastic Particle Carbon Steel and Stainless Steel Rotary Vibrating Screen
Our vibrating screen equipment is a top-notch choice within the industrial screening domain, as it incorporates a multitude of advanced designs and refined processes.
The equipment's main body is crafted from stainless steel. This material endows it with robustness and durability, along with outstanding corrosion resistance. Thanks to these qualities, it can readily adjust to diverse and complex working conditions, thereby guaranteeing stable operation over an extended period. Moreover, its round steel structure plays a significant role in bolstering the strength of the entire structure, offering dependable support for the screening operations.
Item No :
BO-300DOrder(MOQ) :
1PCSPrice :
$:100Product Origin :
ChinaColor :
customizableShipping Port :
Guang DongLead Time :
7DaysWeight :
9kgPayment :
T/T1. The details of the screen specifications are as follows: The diameter is accurately measured as 300mm, and the screen aperture can be selected flexibly in the range of 0.1mm to 5mm, which can effectively meet the screening requirements of different materials.
2. Vibration Frequency: Generally speaking, it ranges at around 1,400 times per minute.
3. Processing Capacity:
It is subject to change based on the specific types of materials, their particle sizes, as well as the screening requirements. Roughly speaking, the processing capacity falls within the range of 5 to 100 kilograms per hour.
4. Motor Power:
The power of the vibration motor is 0.15kW. This power level not only guarantees that the vibration screen can operate stably with sufficient power supply but also takes into account the requirement for energy conservation.
Material and Process:
Material:The contact surface that mainly comes into contact with materials is fabricated from 304 stainless steel. This type of stainless steel boasts excellent corrosion resistance and high strength. As a result, it is well-suited for making contact with a wide variety of materials, and it is particularly applicable in industries where high hygiene standards are demanded, like the food and medicine industries.
The screen is crafted by weaving high-strength and high-precision stainless steel wire. It features a uniform mesh structure and remarkable wear resistance. Thanks to these characteristics, it can maintain the accuracy of the screening process over a long period of time.
Process:
The entire manufacturing process is highly refined. Every single part undergoes meticulous processing and assembly, and the surface of the equipment is made smooth. Such meticulous manufacturing guarantees the seamless operation of the equipment and minimizes the occurrences of material residue and blockage.
Technical Parameter:
The parameter name |
Parameter details |
The parameter name |
Parameter details |
Manufacturing ground |
China |
Time to market |
In 2022 |
Product name |
sifting machine |
Product model |
BO-300D |
Input voltage |
AC110V / 220V / 380V is optional |
Interiorinput power |
150W |
Shake frequency |
And 1,400 beats / min |
Screen diameter |
300mm |
Sieve mesh number |
Optional 8-200 entries |
Host size |
D340×W340×H380mm |
Description of Mesh Number |
||
Mesh Number |
||
The Larger the Number of Mesh, the Smaller the Material Particles: The Smaller the Mesh Number, the Larger the Particle Size of the Material. The Sieve Size is the Size of the Opening in the Screen Frame Through Which the Particles Can Pass. It is Expressed as the Number of Holes in a 1-Inch (2.54 cm) Wide Screen, and It is Therefore Called the Number of Eyes. |
||
Screen Mesh Number Reference |
||
food |
Grain flour 20-50 mesh |
Chinese medicine powder 60-80 mesh |
Filter soy milk for 50-100 mesh |
Thread powder 100-140 mesh |
|
Flour 40-60 mesh |
Pearl powder 120-180 mesh |
|
Douhua douzhe filter 60-140 mesh |
|
|
industrial |
Spray plastic powder 120-140 mesh |
Ceramic mud 50-60 mesh |
3D printing 316 powder 300-500 mesh |
Cellulose 80-100 mesh |
|
Ceramic glaze material 60-80 mesh |
Paint 100-200 mesh |
|
Lead powder 60-120 mesh |
Beanstalk filter 140-180 mesh |
Screen Size and Mesh Comparison Table |
|||||
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
2mesh |
12.5 |
45mesh |
0.4 |
220mesh |
0.065 |
3mesh |
8 |
50mesh |
0.355 |
240mesh |
0.063 |
4mesh |
6 |
55mesh |
0.315 |
250mesh |
0.061 |
5mesh |
5 |
60mesh |
0.28 |
280mesh |
0.055 |
6mesh |
4 |
65mesh |
0.25 |
300mesh |
0.05 |
8mesh |
3 |
70mesh |
0.224 |
320mesh |
0.045 |
10mesh |
2 |
75mesh |
0.2 |
325mesh |
0.043 |
12mesh |
1.6 |
80mesh |
0.18 |
340mesh |
0.041 |
14mesh |
1.43 |
90mesh |
0.16 |
360mesh |
0.04 |
16mesh |
1.25 |
100mesh |
0.154 |
400mesh |
0.0385 |
18mesh |
1 |
110mesh |
0.15 |
500mesh |
0.0308 |
20mesh |
0.9 |
120mesh |
0.125 |
600mesh |
0.026 |
24mesh |
0.8 |
130mesh |
0.112 |
800mesh |
0.022 |
26mesh |
0.71 |
140mesh |
0.105 |
900mesh |
0.02 |
28mesh |
0.68 |
150mesh |
0.1 |
1000mesh |
0.015 |
30mesh |
0.6 |
160mesh |
0.096 |
1800mesh |
0.01 |
32mesh |
0.58 |
180mesh |
0.09 |
2000mesh |
0.008 |
35mesh |
0.5 |
190mesh |
0.08 |
2300mesh |
0.005 |
40mesh |
0.45 |
200mesh |
0.074 |
2800mesh |
0.003 |
