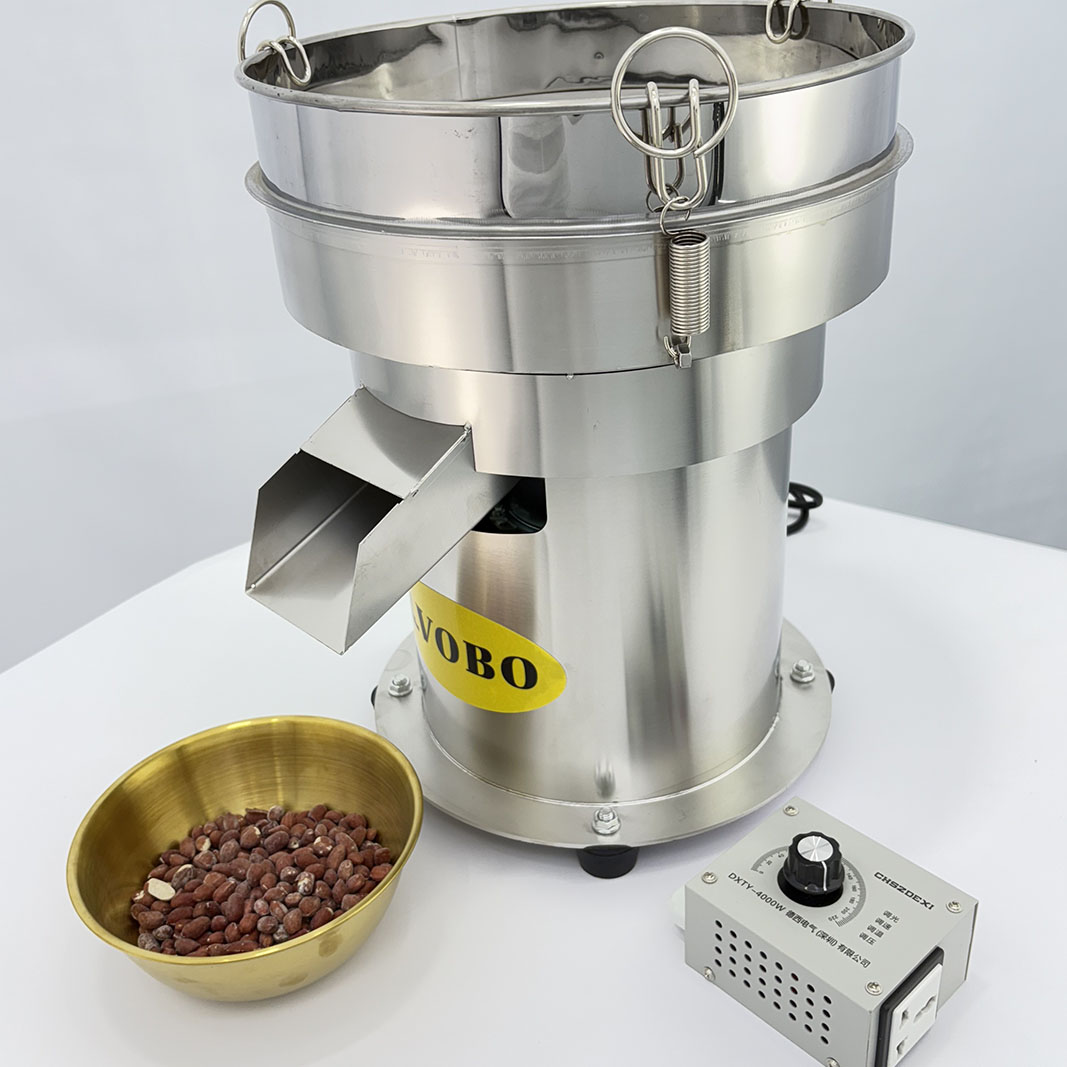

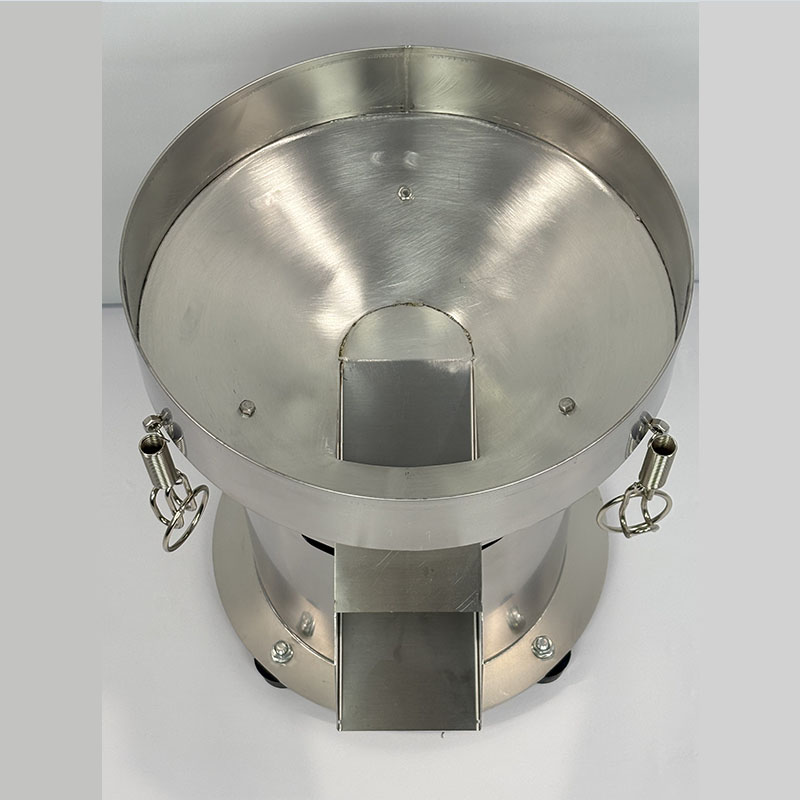

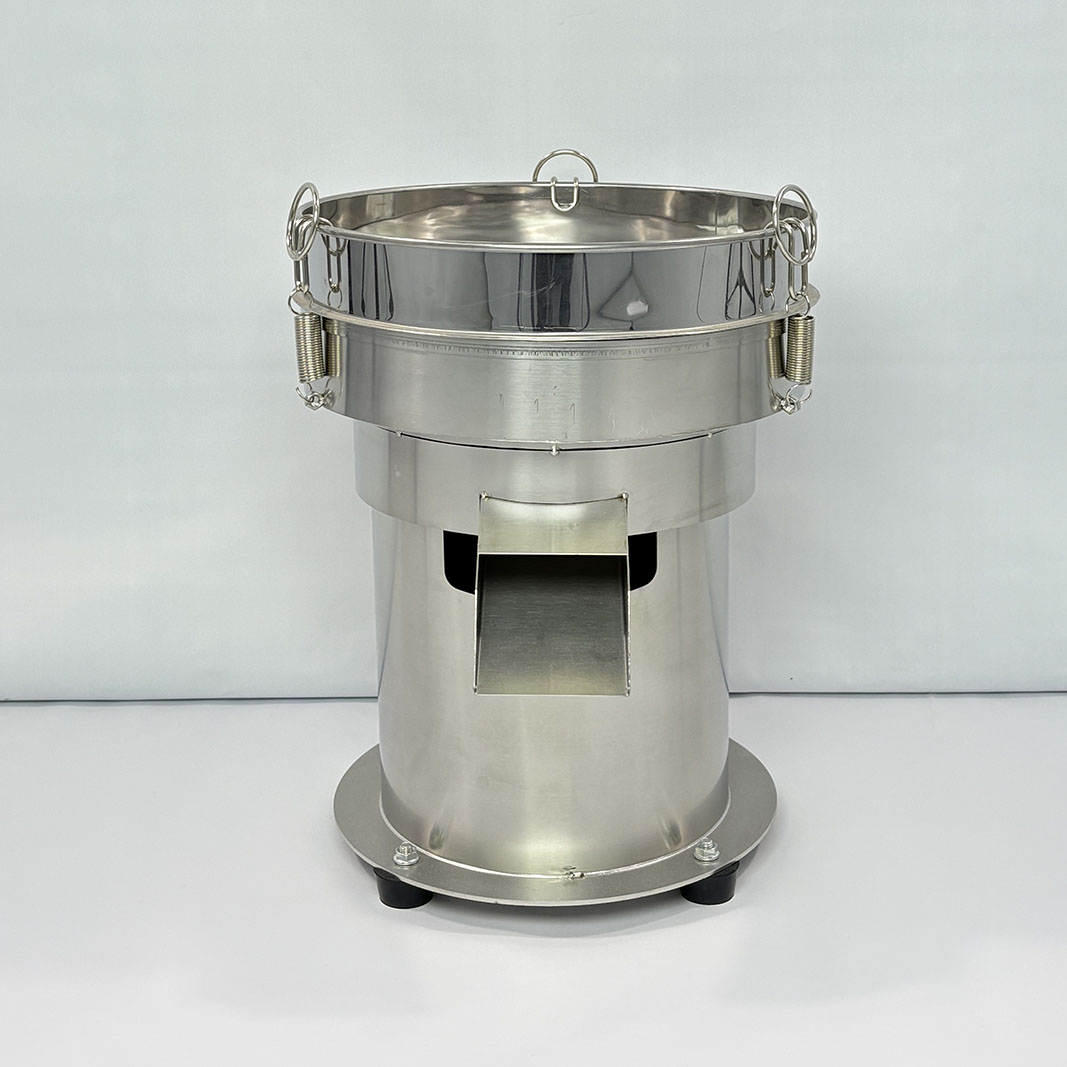

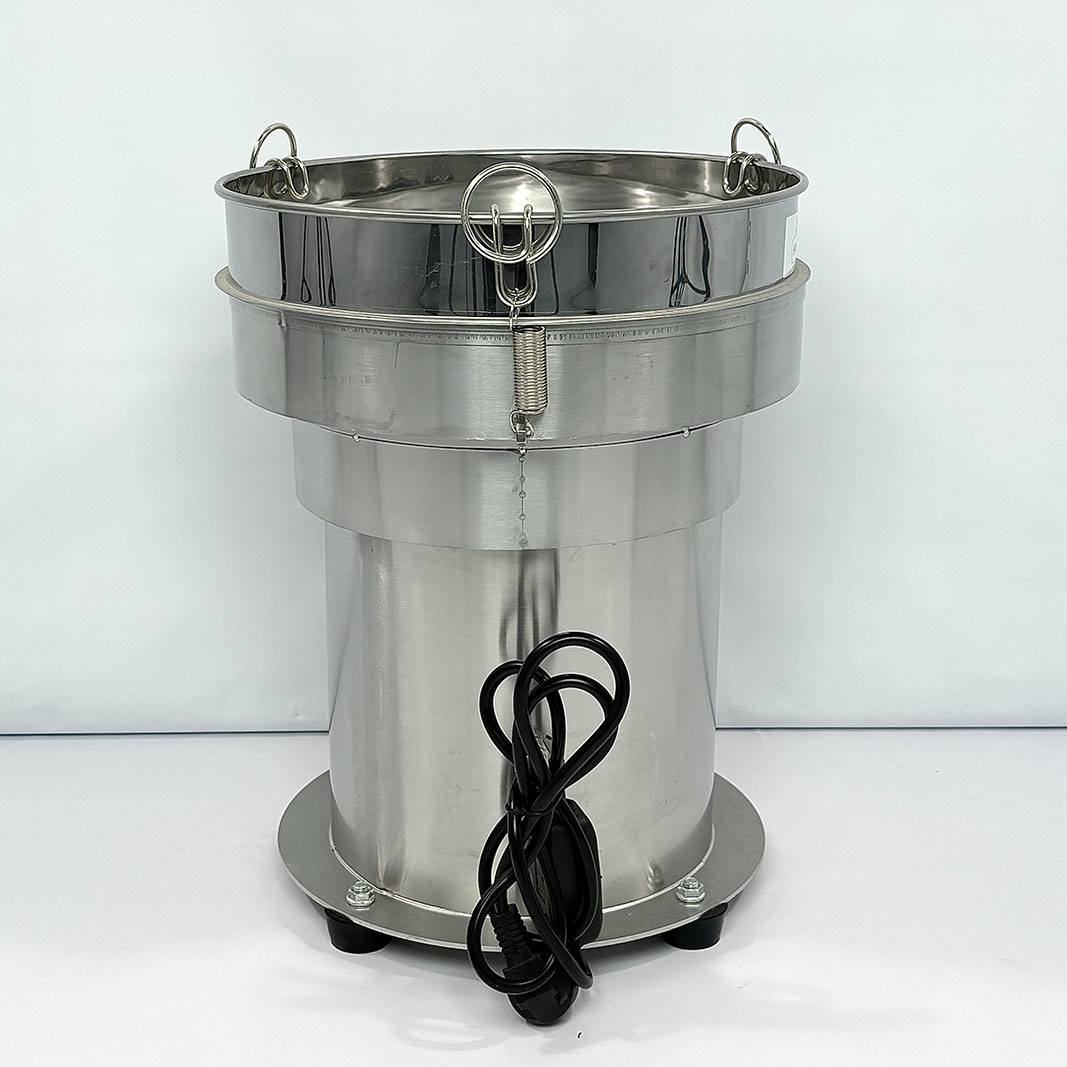

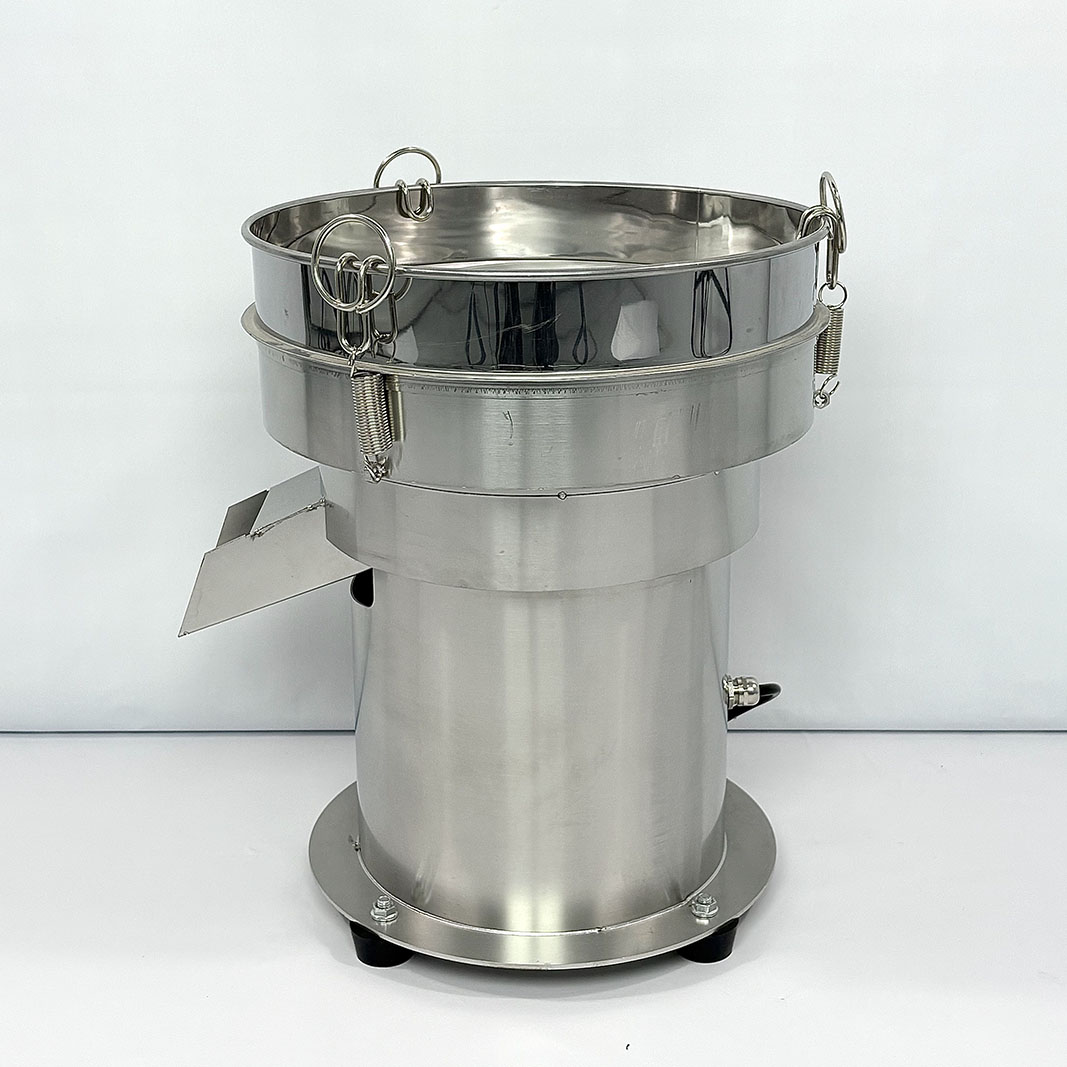

Stainless steel round steel vibrating screen rotary vibrating screen fine screen vibrating screen
Our vibrating screen equipment is an outstanding choice within the industrial screening field. It incorporates numerous advanced designs and refined processes, making it stand out among others.
The main body of this equipment is constructed from stainless steel. This material is not only tough and long-lasting but also possesses remarkable corrosion resistance. Thanks to these qualities, it can easily cope with various intricate working conditions and guarantee stable operation over an extended period of time. Moreover, the round steel structure of the equipment plays a vital role in strengthening the overall structure, thus offering dependable support for the screening operations that take place.
Item No :
BO-300DOrder(MOQ) :
1PCSPrice :
$:100Product Origin :
ChinaColor :
customizableShipping Port :
Guang DongLead Time :
7DaysWeight :
9kgPayment :
T/T1. Screen Specification
The diameter of the screen is exactly 300mm. When it comes to the screen aperture, it has the flexibility to be selected within the range of 0.1mm to 5mm, enabling it to meet the screening needs of different materials effectively.
2. Vibration Frequency
Typically, the vibration frequency is about 1,400 times per minute.
3. Processing Capacity
The processing capacity varies in line with different material types, particle sizes, and screening requirements. Approximately, it lies within the range of 5 to 100 kilograms per hour.
4. Motor Power
The vibration motor has a power of 0.15kW. This power level ensures that the vibration screen can operate stably with a sufficient power supply while also considering the requirement for energy saving.
Material and Process:
In terms of the material, the main contact surface with materials is made of 304 stainless steel. This 304 stainless steel features good corrosion resistance and high strength, so it's suitable for coming into contact with diverse materials. It's especially well-suited for industries with high health standards like the food and medicine industries.
The screen is made by weaving high-strength and high-precision stainless steel wire. It has a mesh that is uniform and shows good wear resistance, which enables it to maintain the screening accuracy for a long period.
Process:
The entire manufacturing process is carried out with great sophistication. Every single part undergoes meticulous processing and assembly procedures, and as a result, the surface of the equipment turns out to be smooth. Such a smooth surface and precise manufacturing not only guarantee that the equipment can operate without any glitches but also effectively minimize the occurrences of material residue and blockage.
Technical Parameter:
The parameter name |
Parameter details |
The parameter name |
Parameter details |
Manufacturing ground |
China |
Time to market |
In 2022 |
Product name |
sifting machine |
Product model |
BO-300D |
Input voltage |
AC110V / 220V / 380V is optional |
Interiorinput power |
150W |
Shake frequency |
And 1,400 beats / min |
Screen diameter |
300mm |
Sieve mesh number |
Optional 8-200 entries |
Host size |
D340×W340×H380mm |
Description of Mesh Number |
||
Mesh Number |
||
The Larger the Number of Mesh, the Smaller the Material Particles: The Smaller the Mesh Number, the Larger the Particle Size of the Material. The Sieve Size is the Size of the Opening in the Screen Frame Through Which the Particles Can Pass. It is Expressed as the Number of Holes in a 1-Inch (2.54 cm) Wide Screen, and It is Therefore Called the Number of Eyes. |
||
Screen Mesh Number Reference |
||
food |
Grain flour 20-50 mesh |
Chinese medicine powder 60-80 mesh |
Filter soy milk for 50-100 mesh |
Thread powder 100-140 mesh |
|
Flour 40-60 mesh |
Pearl powder 120-180 mesh |
|
Douhua douzhe filter 60-140 mesh |
|
|
industrial |
Spray plastic powder 120-140 mesh |
Ceramic mud 50-60 mesh |
3D printing 316 powder 300-500 mesh |
Cellulose 80-100 mesh |
|
Ceramic glaze material 60-80 mesh |
Paint 100-200 mesh |
|
Lead powder 60-120 mesh |
Beanstalk filter 140-180 mesh |
Screen Size and Mesh Comparison Table |
|||||
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
2mesh |
12.5 |
45mesh |
0.4 |
220mesh |
0.065 |
3mesh |
8 |
50mesh |
0.355 |
240mesh |
0.063 |
4mesh |
6 |
55mesh |
0.315 |
250mesh |
0.061 |
5mesh |
5 |
60mesh |
0.28 |
280mesh |
0.055 |
6mesh |
4 |
65mesh |
0.25 |
300mesh |
0.05 |
8mesh |
3 |
70mesh |
0.224 |
320mesh |
0.045 |
10mesh |
2 |
75mesh |
0.2 |
325mesh |
0.043 |
12mesh |
1.6 |
80mesh |
0.18 |
340mesh |
0.041 |
14mesh |
1.43 |
90mesh |
0.16 |
360mesh |
0.04 |
16mesh |
1.25 |
100mesh |
0.154 |
400mesh |
0.0385 |
18mesh |
1 |
110mesh |
0.15 |
500mesh |
0.0308 |
20mesh |
0.9 |
120mesh |
0.125 |
600mesh |
0.026 |
24mesh |
0.8 |
130mesh |
0.112 |
800mesh |
0.022 |
26mesh |
0.71 |
140mesh |
0.105 |
900mesh |
0.02 |
28mesh |
0.68 |
150mesh |
0.1 |
1000mesh |
0.015 |
30mesh |
0.6 |
160mesh |
0.096 |
1800mesh |
0.01 |
32mesh |
0.58 |
180mesh |
0.09 |
2000mesh |
0.008 |
35mesh |
0.5 |
190mesh |
0.08 |
2300mesh |
0.005 |
40mesh |
0.45 |
200mesh |
0.074 |
2800mesh |
0.003 |
