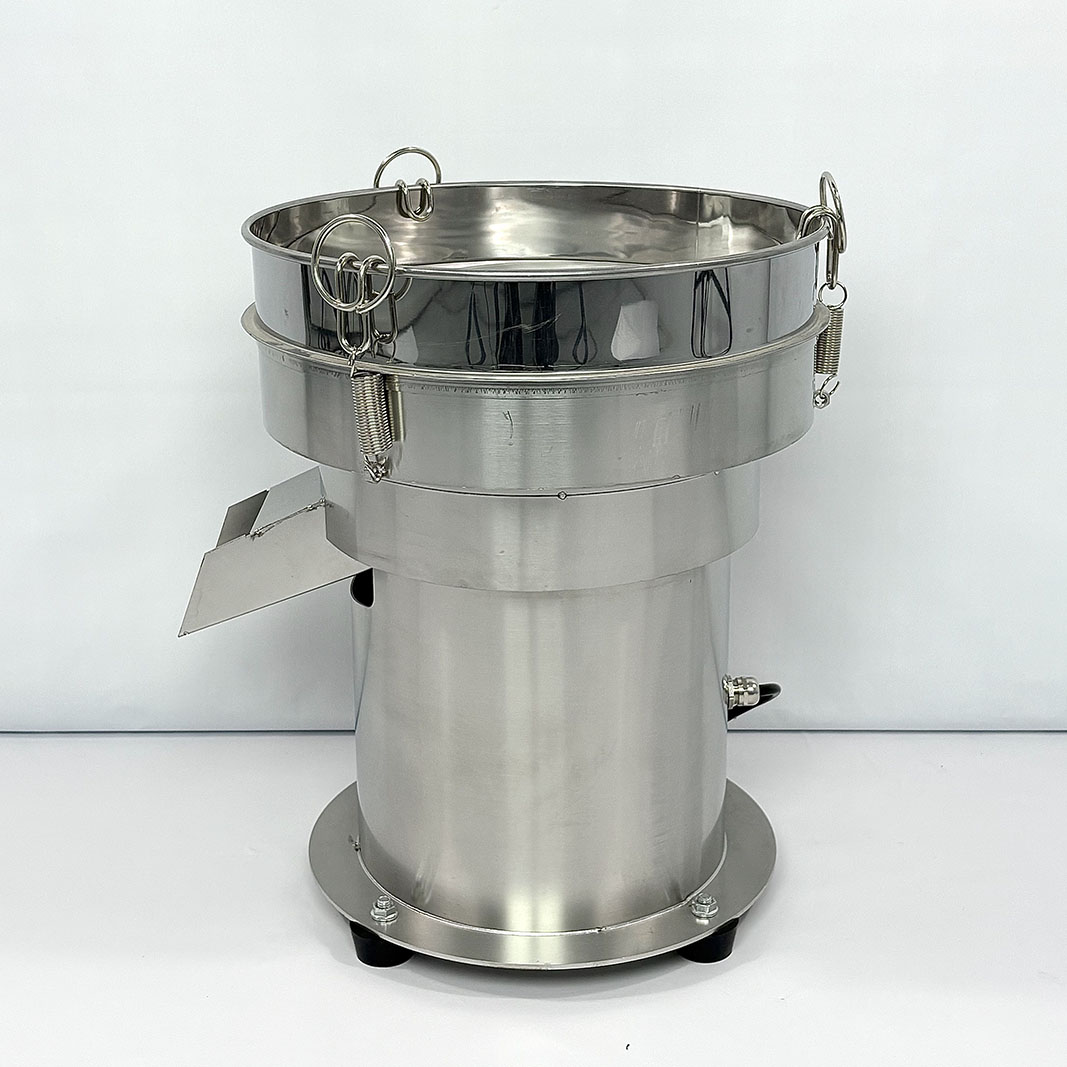

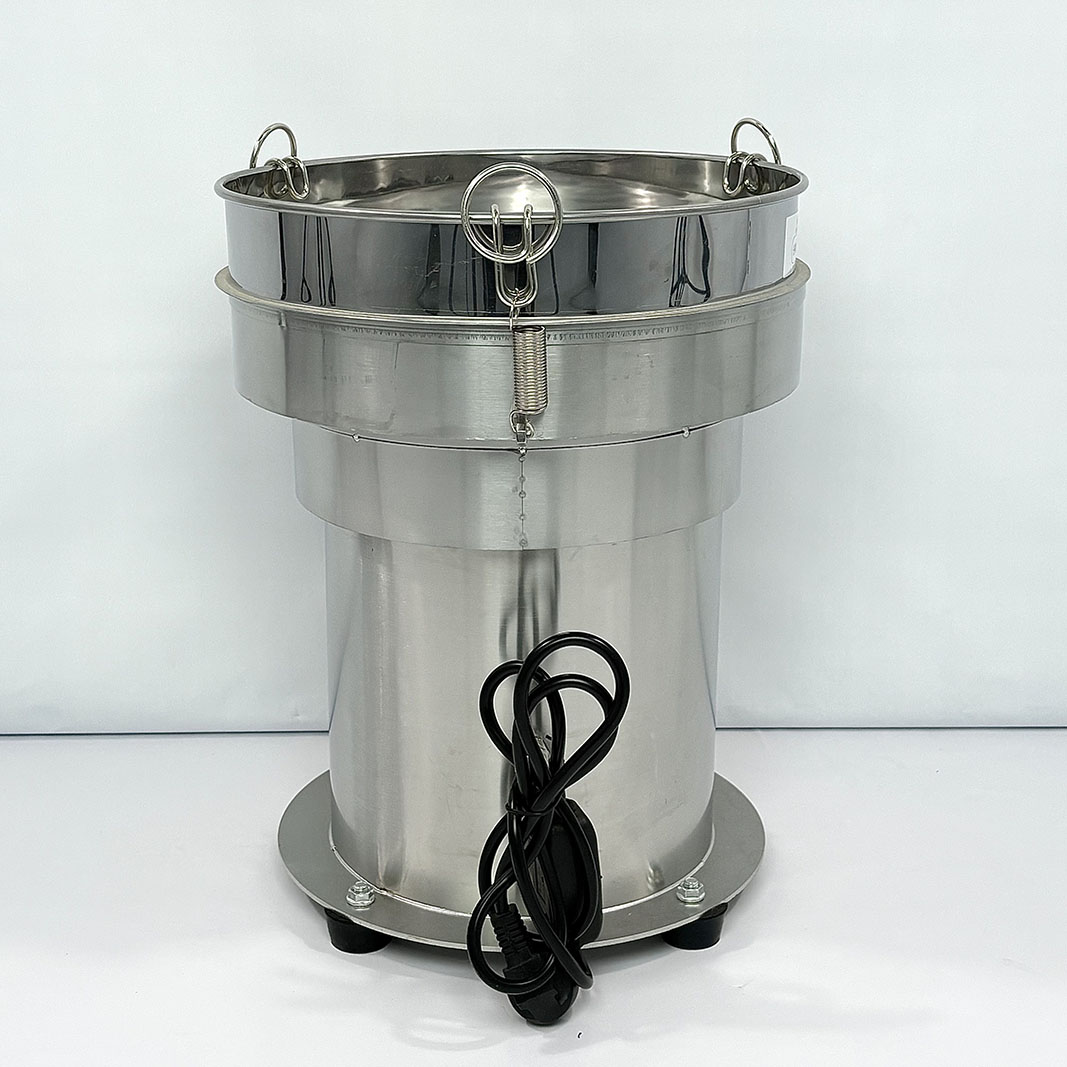

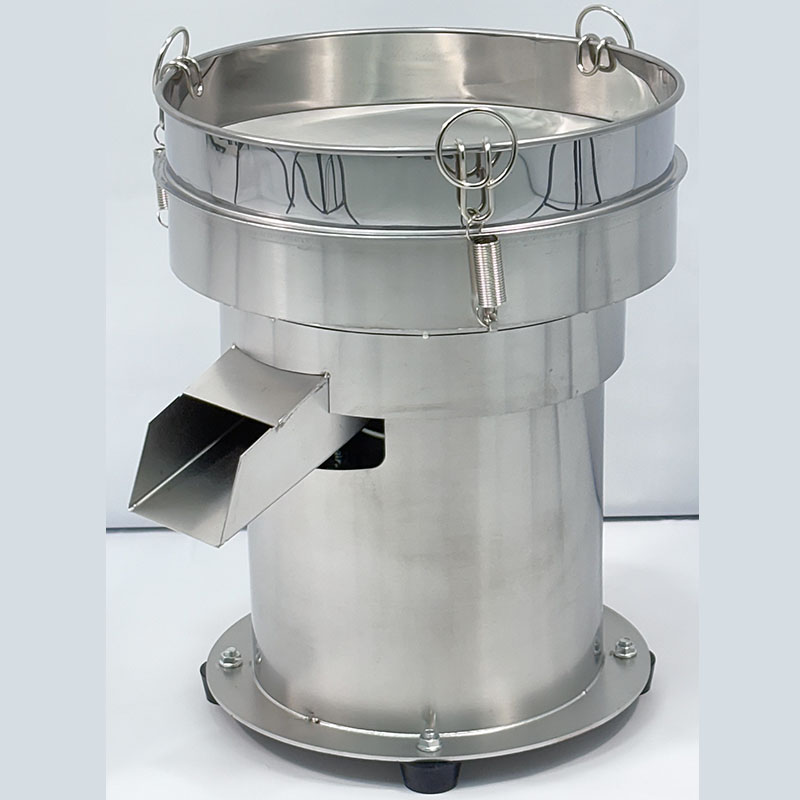

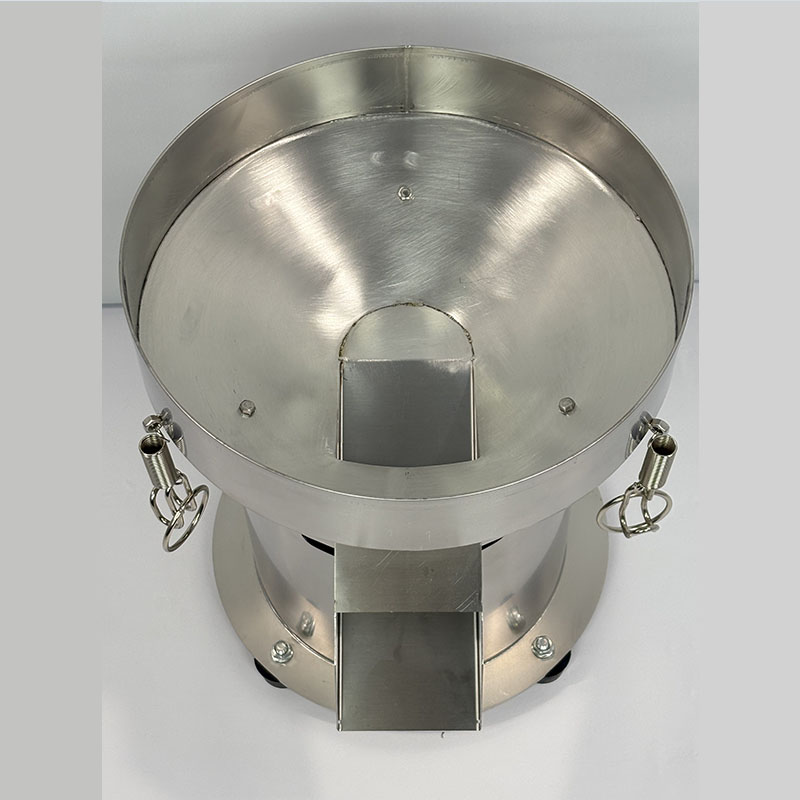

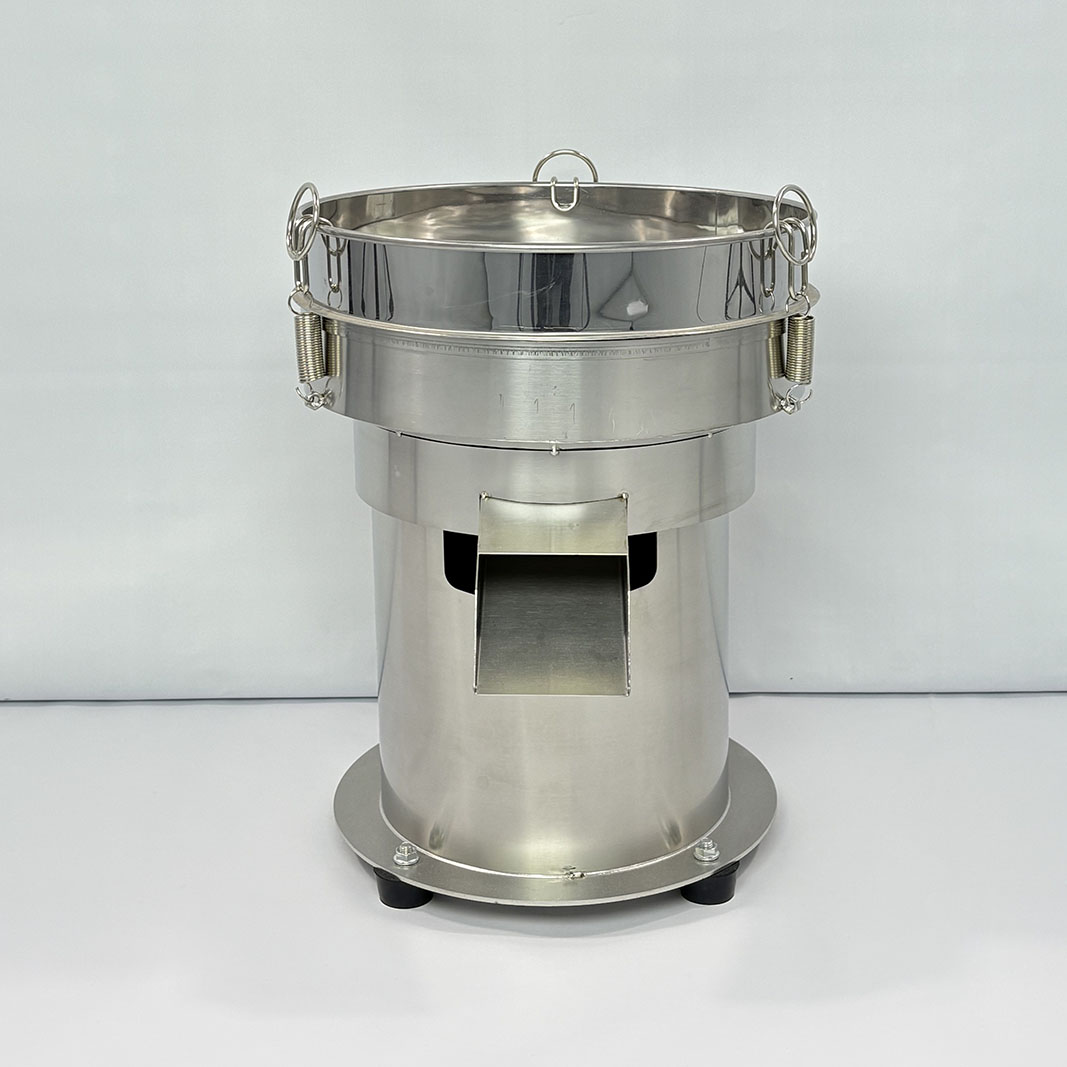

In the realm of industrial screening, our vibrating screen equipment is a high-quality option. It brings together a wide range of advanced designs and delicate processes.
The main body of the equipment is made from stainless steel. This kind of stainless steel is robust, durable, and has outstanding corrosion resistance. As a result, it can adapt well to all sorts of complicated working environments and ensure stable operation for a long time. Besides, the round steel structure of the equipment further boosts the strength of the whole structure, providing solid support for the screening work.
Item No :
BO-300DOrder(MOQ) :
1PCSPrice :
$:100Product Origin :
ChinaColor :
customizableShipping Port :
Guang DongLead Time :
7DaysWeight :
9kgPayment :
T/T1. Screen Specification:Its diameter measures 300mm. As for the screen aperture, it offers flexibility in selection, which can be chosen within the range from 0.1mm to 5mm. This way, it can effectively meet the screening requirements of various materials.
2. Vibration Frequency:Generally, the vibration frequency ranges at around 1,400 times per minute.
3. Processing Capacity:The processing capacity is subject to change depending on different material types, particle sizes as well as screening requirements. Roughly speaking, it falls between 5 and 100 kilograms per hour.
4. Motor Power: The power of the vibration motor is 0.15kW. This not only guarantees stable and sufficient power supply for the vibration screen but also takes into account the need for energy conservation.
Material and Process:
Regarding the material, the surface that mainly comes into contact with materials is constructed from 304 stainless steel. This 304 stainless steel possesses excellent corrosion resistance and high strength, making it appropriate for making contact with a wide variety of materials. It is particularly ideal for use in industries that have strict health requirements, like the food and medicine industries.
The screen is crafted by weaving stainless steel wire that is both high-strength and high-precision. With a uniformly distributed mesh and remarkable wear resistance, it can guarantee the screening accuracy over an extended period of time.
Process:
The overall manufacturing process is highly refined. Each part is processed and assembled with great care, which makes the surface of the equipment smooth. Thanks to this, the equipment can operate smoothly and the issues of material residue and blockage are less likely to occur.
Technical Parameter:
The parameter name |
Parameter details |
The parameter name |
Parameter details |
Manufacturing ground |
China |
Time to market |
In 2022 |
Product name |
sifting machine |
Product model |
BO-300D |
Input voltage |
AC110V / 220V / 380V is optional |
Interiorinput power |
150W |
Shake frequency |
And 1,400 beats / min |
Screen diameter |
300mm |
Sieve mesh number |
Optional 8-200 entries |
Host size |
D340×W340×H380mm |
Description of Mesh Number |
||
Mesh Number |
||
The Larger the Number of Mesh, the Smaller the Material Particles: The Smaller the Mesh Number, the Larger the Particle Size of the Material. The Sieve Size is the Size of the Opening in the Screen Frame Through Which the Particles Can Pass. It is Expressed as the Number of Holes in a 1-Inch (2.54 cm) Wide Screen, and It is Therefore Called the Number of Eyes. |
||
Screen Mesh Number Reference |
||
food |
Grain flour 20-50 mesh |
Chinese medicine powder 60-80 mesh |
Filter soy milk for 50-100 mesh |
Thread powder 100-140 mesh |
|
Flour 40-60 mesh |
Pearl powder 120-180 mesh |
|
Douhua douzhe filter 60-140 mesh |
|
|
industrial |
Spray plastic powder 120-140 mesh |
Ceramic mud 50-60 mesh |
3D printing 316 powder 300-500 mesh |
Cellulose 80-100 mesh |
|
Ceramic glaze material 60-80 mesh |
Paint 100-200 mesh |
|
Lead powder 60-120 mesh |
Beanstalk filter 140-180 mesh |
Screen Size and Mesh Comparison Table |
|||||
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
2mesh |
12.5 |
45mesh |
0.4 |
220mesh |
0.065 |
3mesh |
8 |
50mesh |
0.355 |
240mesh |
0.063 |
4mesh |
6 |
55mesh |
0.315 |
250mesh |
0.061 |
5mesh |
5 |
60mesh |
0.28 |
280mesh |
0.055 |
6mesh |
4 |
65mesh |
0.25 |
300mesh |
0.05 |
8mesh |
3 |
70mesh |
0.224 |
320mesh |
0.045 |
10mesh |
2 |
75mesh |
0.2 |
325mesh |
0.043 |
12mesh |
1.6 |
80mesh |
0.18 |
340mesh |
0.041 |
14mesh |
1.43 |
90mesh |
0.16 |
360mesh |
0.04 |
16mesh |
1.25 |
100mesh |
0.154 |
400mesh |
0.0385 |
18mesh |
1 |
110mesh |
0.15 |
500mesh |
0.0308 |
20mesh |
0.9 |
120mesh |
0.125 |
600mesh |
0.026 |
24mesh |
0.8 |
130mesh |
0.112 |
800mesh |
0.022 |
26mesh |
0.71 |
140mesh |
0.105 |
900mesh |
0.02 |
28mesh |
0.68 |
150mesh |
0.1 |
1000mesh |
0.015 |
30mesh |
0.6 |
160mesh |
0.096 |
1800mesh |
0.01 |
32mesh |
0.58 |
180mesh |
0.09 |
2000mesh |
0.008 |
35mesh |
0.5 |
190mesh |
0.08 |
2300mesh |
0.005 |
40mesh |
0.45 |
200mesh |
0.074 |
2800mesh |
0.003 |
