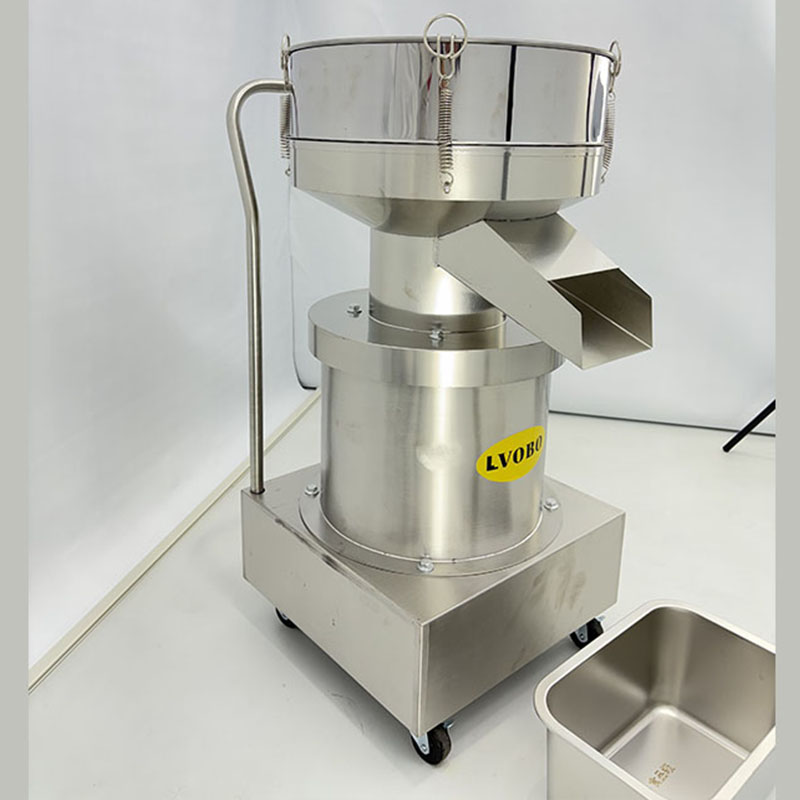

Small Circular Vibrating Screen Machine is an efficient and practical electric screening equipment. Its compact circular design and accurate screening ability allow it to efficiently screen out foreign bodies, filter impurities, and grade materials, thus ensuring the high - quality of products. It is widely used to meet various material - processing requirements in industries. Equipped with an advanced vibration system, it can generate stable and appropriate vibration frequencies, which promote the rapid and uniform movement of materials on the screening network, achieve an efficient screening process, and effectively separate materials of different particle sizes. The screen network has high accuracy and can be customized with different pore sizes according to specific needs, enabling the accurate selection of materials that meet specific particle - size requirements and ensuring the consistency of product quality.
Item No :
BO-Z28BOrder(MOQ) :
1PCSPrice :
$:303Product Origin :
ChinaColor :
customizableShipping Port :
xia menLead Time :
30 DaysWeight :
30kgPayment :
T/TTechnical Parameter:
1. Screen Specification: The diameter is 400mm, and the screen aperture can be flexibly selected within the range of 0.1mm - 5mm to meet the screening requirements of different materials.
2. Vibration Frequency: The range is generally 1,400 times per minute.
3. Processing Capacity: It varies according to different material types, particle sizes, and screening requirements. The approximate processing capacity is between 5 - 100 kg per hour.
4. Motor Power: The vibration motor power is 0.35kW, ensuring stable and sufficient power for the vibration screen while taking into account energy - saving needs.
Material And Process
Material: The main material contact surface is 304 stainless steel, which has good corrosion resistance and high strength. It is suitable for contacting all kinds of materials, especially in industries like food and medicine that have high health requirements. The screen is made of high - strength, high - precision stainless - steel wire weaving. It has a uniform mesh and good wear resistance, ensuring the long - term accuracy of screening.
Process: The overall manufacturing process is exquisite. All parts are carefully processed and assembled. The smooth surface ensures the smooth operation of the equipment, reducing material residue and blockage phenomena.
Efficient Separation of Liquid and Powder: It features a unique design, a convenient cart style, and strong power.
Technical Parameter:
The parameter name |
Parameter details |
The parameter name |
Parameter details |
Manufacturing ground |
China |
Time to market |
In 2022 |
Product name |
sifting machine |
Product model |
BO-Z28B |
Input voltage |
AC110V / 220V / 380V is optional |
Interiorinput power |
350W |
Shake frequency |
And 1,400 beats / min |
Screen diameter |
400mm |
Sieve mesh number |
Optional 8-200 entries |
Host size |
D520×W430×H875mm |
Description of mesh number |
||
Mesh number |
||
The larger the number of mesh, the smaller the material particles: |
||
Screen mesh number reference |
||
food |
Grain flour 20-50 mesh |
Chinese medicine powder 60-80 mesh |
Filter soy milk for 50-100 mesh |
Thread powder 100-140 mesh |
|
Flour 40-60 mesh |
Pearl powder 120-180 mesh |
|
Douhua douzhe filter 60-140 mesh |
|
|
industrial |
Spray plastic powder 120-140 mesh |
Ceramic mud 50-60 mesh |
3D printing 316 powder 300-500 mesh |
Cellulose 80-100 mesh |
|
Ceramic glaze material 60-80 mesh |
Paint 100-200 mesh |
|
Lead powder 60-120 mesh |
Beanstalk filter 140-180 mesh |
Screen size and mesh comparison table |
|||||
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
2mesh |
12.5 |
45mesh |
0.4 |
220mesh |
0.065 |
3mesh |
8 |
50mesh |
0.355 |
240mesh |
0.063 |
4mesh |
6 |
55mesh |
0.315 |
250mesh |
0.061 |
5mesh |
5 |
60mesh |
0.28 |
280mesh |
0.055 |
6mesh |
4 |
65mesh |
0.25 |
300mesh |
0.05 |
8mesh |
3 |
70mesh |
0.224 |
320mesh |
0.045 |
10mesh |
2 |
75mesh |
0.2 |
325mesh |
0.043 |
12mesh |
1.6 |
80mesh |
0.18 |
340mesh |
0.041 |
14mesh |
1.43 |
90mesh |
0.16 |
360mesh |
0.04 |
16mesh |
1.25 |
100mesh |
0.154 |
400mesh |
0.0385 |
18mesh |
1 |
110mesh |
0.15 |
500mesh |
0.0308 |
20mesh |
0.9 |
120mesh |
0.125 |
600mesh |
0.026 |
24mesh |
0.8 |
130mesh |
0.112 |
800mesh |
0.022 |
26mesh |
0.71 |
140mesh |
0.105 |
900mesh |
0.02 |
28mesh |
0.68 |
150mesh |
0.1 |
1000mesh |
0.015 |
30mesh |
0.6 |
160mesh |
0.096 |
1800mesh |
0.01 |
32mesh |
0.58 |
180mesh |
0.09 |
2000mesh |
0.008 |
35mesh |
0.5 |
190mesh |
0.08 |
2300mesh |
0.005 |
40mesh |
0.45 |
200mesh |
0.074 |
2800mesh |
0.003 |
