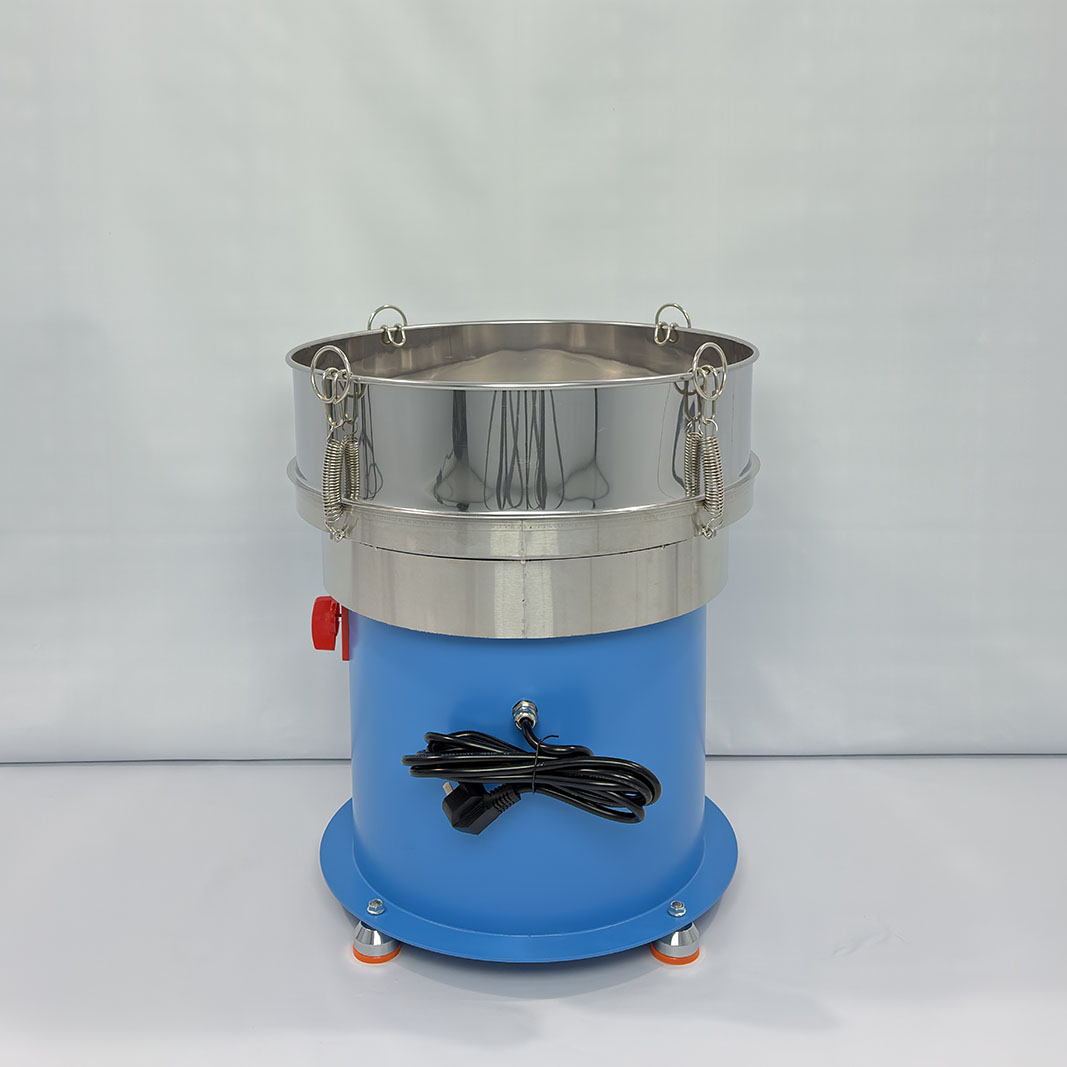

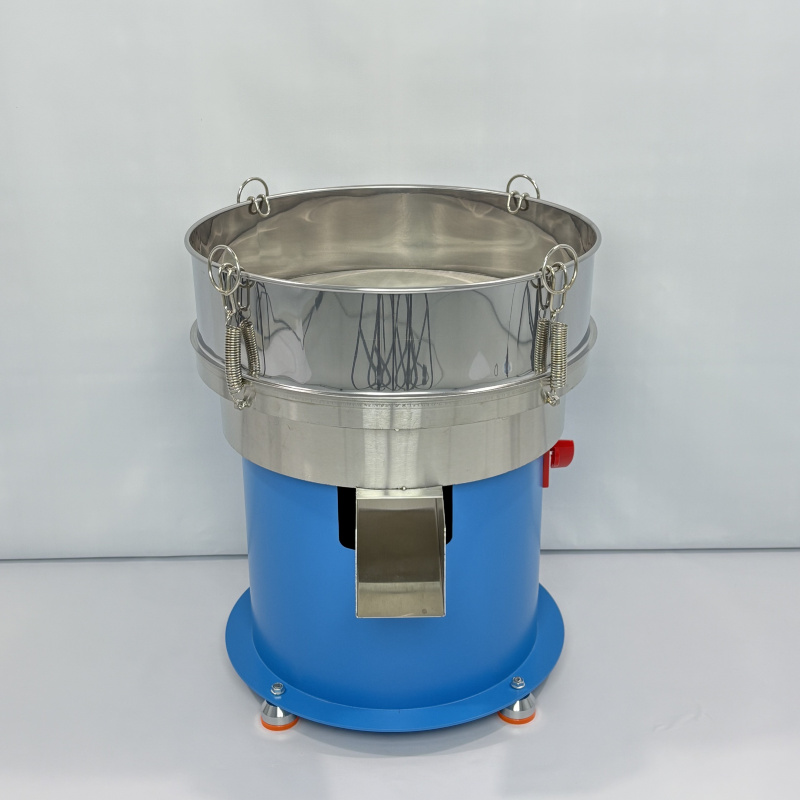

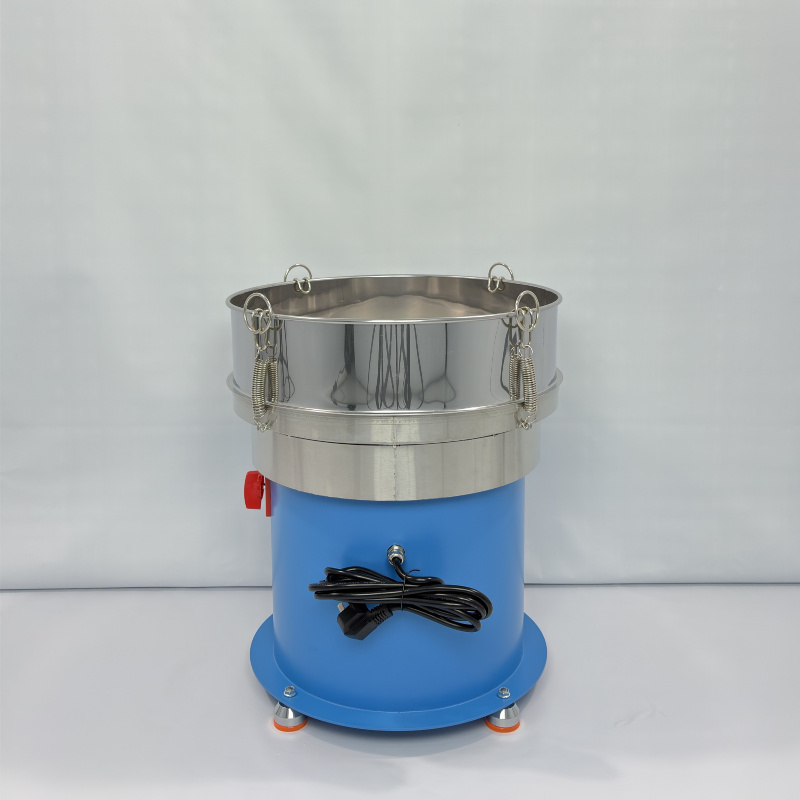

Small Commercial Electric Screen Powder Machine High-precision Particle Sifting Machine
The Small Circular Vibrating Screen Machine is an efficient and practical electric screening equipment. Its compact circular design and accurate screening ability enable it to efficiently screen out foreign bodies, filter impurities, and grade materials, ensuring the high quality of products. It is widely used to meet a variety of material - processing requirements in industries. Equipped with an advanced vibration system, it can generate stable and appropriate vibration frequencies, which promote materials to move quickly and evenly on the screening network, achieve an efficient screening process, and effectively separate materials with different particle sizes. The screen network has high accuracy and can be customized with different pore sizes according to specific needs, allowing for the accurate selection of materials that meet specific particle - size requirements and ensuring the consistency of product quality.
Item No :
BO-400DOrder(MOQ) :
1PCSPrice :
$:138Product Origin :
ChinaColor :
customizableShipping Port :
xia menLead Time :
30 DaysPayment :
T/TOperational Principle:
The Small Circular Vibrating Screen generates exciting force through the vibration motor, enabling the sieve body to produce complex rotational vibration. The material enters the sieve from the upper inlet and makes a circular movement on the sieve surface. The material smaller than the sieve hole falls through the sieve net, while the material larger than the sieve hole remains on the sieve surface to continue moving and is finally discharged from the discharge port, thereby achieving accurate grading and screening.
Material And Process
Material: The main material contact surface is 304 stainless steel, which boasts good corrosion resistance and high strength. It is suitable for coming into contact with all sorts of materials, particularly in industries such as food and medicine that have stringent health requirements. The screen is crafted from high - strength, high - precision stainless - steel wire weaving. It has a uniform mesh and excellent wear resistance, ensuring the long - term accuracy of screening.
Process: The overall manufacturing process is of high quality. All parts are meticulously processed and assembled. The surface is smooth, which guarantees the smooth operation of the equipment and reduces the occurrence of material residue and blockage.
Technical Parameter:
1. Screen Specification: The diameter of the screen is 400mm, and the screen aperture can be flexibly chosen within the range of 0.1mm - 5mm to meet the screening demands of different materials.
2. Vibration Frequency: The frequency range is generally 1,400 times per minute.
3. Processing Capacity: It varies depending on different material types, particle sizes, and screening requirements. The approximate processing capacity lies between 5 - 100 kg per hour.
4. Motor Power: The power of the vibration motor is 0.35kW, ensuring stable and sufficient power for the vibration screen while also considering energy - saving requirements.
Efficient Separation of Liquid and Powder: It features a unique design, high efficiency and convenience, and a strong power screening force.
The parameter name |
Parameter details |
The parameter name |
Parameter details |
Manufacturing ground |
China |
Time to market |
In 2022 |
Product name |
sifting machine |
Product model |
BO-400D |
Input voltage |
AC110V / 220V / 380V is optional |
Interiorinput power |
350W |
Shake frequency |
And 1,400 beats / min |
Screen diameter |
400mm |
Sieve mesh number |
Optional 8-200 entries |
Host size |
D450×W400×H475mm |
Description of mesh number |
||
Mesh number |
||
The larger the number of mesh, the smaller the material particles: |
||
Screen mesh number reference |
||
food |
Grain flour 20-50 mesh |
Chinese medicine powder 60-80 mesh |
Filter soy milk for 50-100 mesh |
Thread powder 100-140 mesh |
|
Flour 40-60 mesh |
Pearl powder 120-180 mesh |
|
Douhua douzhe filter 60-140 mesh |
|
|
industrial |
Spray plastic powder 120-140 mesh |
Ceramic mud 50-60 mesh |
3D printing 316 powder 300-500 mesh |
Cellulose 80-100 mesh |
|
Ceramic glaze material 60-80 mesh |
Paint 100-200 mesh |
|
Lead powder 60-120 mesh |
Beanstalk filter 140-180 mesh |
Screen size and mesh comparison table |
|||||
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
2mesh |
12.5 |
45mesh |
0.4 |
220mesh |
0.065 |
3mesh |
8 |
50mesh |
0.355 |
240mesh |
0.063 |
4mesh |
6 |
55mesh |
0.315 |
250mesh |
0.061 |
5mesh |
5 |
60mesh |
0.28 |
280mesh |
0.055 |
6mesh |
4 |
65mesh |
0.25 |
300mesh |
0.05 |
8mesh |
3 |
70mesh |
0.224 |
320mesh |
0.045 |
10mesh |
2 |
75mesh |
0.2 |
325mesh |
0.043 |
12mesh |
1.6 |
80mesh |
0.18 |
340mesh |
0.041 |
14mesh |
1.43 |
90mesh |
0.16 |
360mesh |
0.04 |
16mesh |
1.25 |
100mesh |
0.154 |
400mesh |
0.0385 |
18mesh |
1 |
110mesh |
0.15 |
500mesh |
0.0308 |
20mesh |
0.9 |
120mesh |
0.125 |
600mesh |
0.026 |
24mesh |
0.8 |
130mesh |
0.112 |
800mesh |
0.022 |
26mesh |
0.71 |
140mesh |
0.105 |
900mesh |
0.02 |
28mesh |
0.68 |
150mesh |
0.1 |
1000mesh |
0.015 |
30mesh |
0.6 |
160mesh |
0.096 |
1800mesh |
0.01 |
32mesh |
0.58 |
180mesh |
0.09 |
2000mesh |
0.008 |
35mesh |
0.5 |
190mesh |
0.08 |
2300mesh |
0.005 |
40mesh |
0.45 |
200mesh |
0.074 |
2800mesh |
0.003 |
