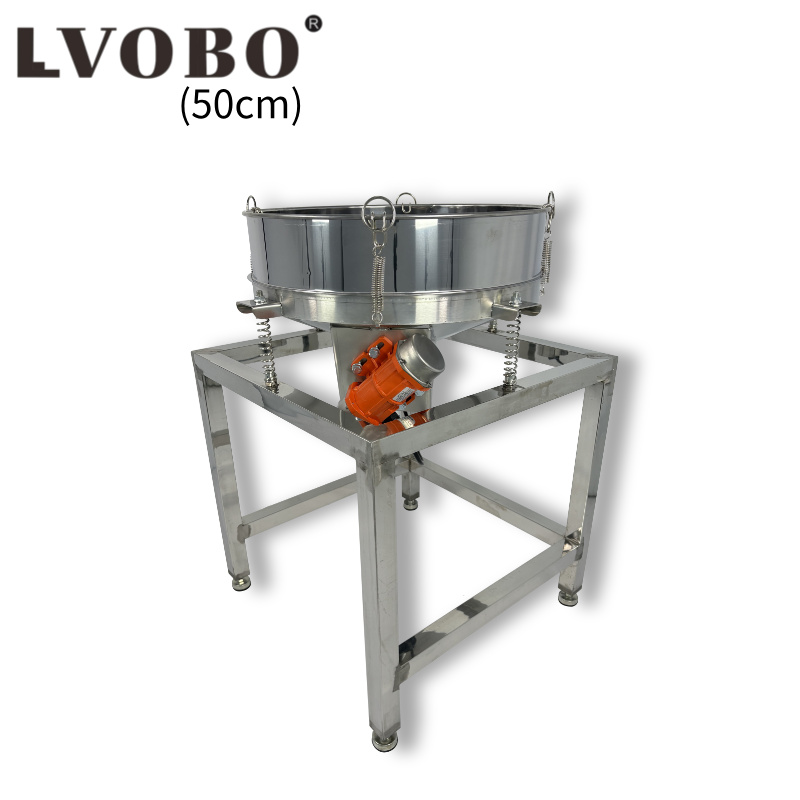

Direct Line Circular Vibrating Sieve Powder Machine Particle Screening Equipment Customizable
Small Circular Vibrating Screen Machine is an efficient and practical electric screening equipment. Thanks to its compact circular design and accurate screening capabilities, it can efficiently screen out foreign bodies, filter impurities, and grade materials, thus ensuring the high quality of products. It is widely applied to meet various material - processing requirements across different industries. Equipped with an advanced vibration system, it can generate a stable and suitable vibration frequency, facilitating the rapid and even movement of materials on the screening mesh. This enables an efficient screening process and effectively separates materials of different particle sizes. The screening mesh features high accuracy, and screens with different pore sizes can be customized according to specific needs, allowing for the precise selection of materials that meet specific particle - size requirements and ensuring the consistency of product quality.
Item No :
BO-Z500COrder(MOQ) :
1PCSPrice :
$:221Product Origin :
CHINAColor :
custom madeShipping Port :
xia menLead Time :
30 DaysWeight :
18kgPayment :
T/TTechnical Parameters:
1. Screen Specification: The diameter is 500mm, and the screen aperture can be flexibly chosen within the range of 0.1mm - 5mm to satisfy the screening demands of different materials.
2. Vibration Frequency: The range typically is 2,900 times/minute.
3. Processing Capacity: It varies depending on different material types, particle sizes, and screening requirements. The approximate processing capacity lies between 5 - 100 kg/hour.
4. Motor Power: The vibration motor power is 70W, ensuring stable and adequate power for the vibration screen while also considering energy - saving requirements.
Material and Process
Material: The main material contact surface is made of 304 Stainless Steel. It has excellent corrosion resistance and high strength, making it suitable for contact with all kinds of materials, particularly in industries with high health requirements such as the Food and Medicine industries. The screen is crafted from high - strength, high - precision stainless - steel wire weaving. It features a uniform mesh and good wear resistance, ensuring long - term screening accuracy.
Process: The overall manufacturing process is delicate. All parts are meticulously processed and assembled, and the surface is smooth. This ensures the smooth operation of the equipment and reduces the phenomena of material residue and blockage.
Technical Parameter:
The parameter name |
Parameter details |
The parameter name |
Parameter details |
Manufacturing ground |
China |
Time to market |
In 2022 |
Product name |
sifting machine |
Product model |
BO-Z500C |
Input voltage |
AC110V / 220V / 380V is optional |
Interiorinput power |
70W |
Shake frequency |
And 2,900 beats / min |
Screen diameter |
500mm |
Sieve mesh number |
Optional 8-200 entries |
Host size |
D590×W590×H780mm |
Description of mesh number |
||
Mesh number |
||
The larger the number of mesh, the smaller the material particles: |
||
Screen mesh number reference |
||
food |
Grain flour 20-50 mesh |
Chinese medicine powder 60-80 mesh |
Filter soy milk for 50-100 mesh |
Thread powder 100-140 mesh |
|
Flour 40-60 mesh |
Pearl powder 120-180 mesh |
|
Douhua douzhe filter 60-140 mesh |
|
|
industrial |
Spray plastic powder 120-140 mesh |
Ceramic mud 50-60 mesh |
3D printing 316 powder 300-500 mesh |
Cellulose 80-100 mesh |
|
Ceramic glaze material 60-80 mesh |
Paint 100-200 mesh |
|
Lead powder 60-120 mesh |
Beanstalk filter 140-180 mesh |
Screen size and mesh comparison table |
|||||
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
Mesh number |
Aperture (mm) |
2mesh |
12.5 |
45mesh |
0.4 |
220mesh |
0.065 |
3mesh |
8 |
50mesh |
0.355 |
240mesh |
0.063 |
4mesh |
6 |
55mesh |
0.315 |
250mesh |
0.061 |
5mesh |
5 |
60mesh |
0.28 |
280mesh |
0.055 |
6mesh |
4 |
65mesh |
0.25 |
300mesh |
0.05 |
8mesh |
3 |
70mesh |
0.224 |
320mesh |
0.045 |
10mesh |
2 |
75mesh |
0.2 |
325mesh |
0.043 |
12mesh |
1.6 |
80mesh |
0.18 |
340mesh |
0.041 |
14mesh |
1.43 |
90mesh |
0.16 |
360mesh |
0.04 |
16mesh |
1.25 |
100mesh |
0.154 |
400mesh |
0.0385 |
18mesh |
1 |
110mesh |
0.15 |
500mesh |
0.0308 |
20mesh |
0.9 |
120mesh |
0.125 |
600mesh |
0.026 |
24mesh |
0.8 |
130mesh |
0.112 |
800mesh |
0.022 |
26mesh |
0.71 |
140mesh |
0.105 |
900mesh |
0.02 |
28mesh |
0.68 |
150mesh |
0.1 |
1000mesh |
0.015 |
30mesh |
0.6 |
160mesh |
0.096 |
1800mesh |
0.01 |
32mesh |
0.58 |
180mesh |
0.09 |
2000mesh |
0.008 |
35mesh |
0.5 |
190mesh |
0.08 |
2300mesh |
0.005 |
40mesh |
0.45 |
200mesh |
0.074 |
2800mesh |
0.003 |
