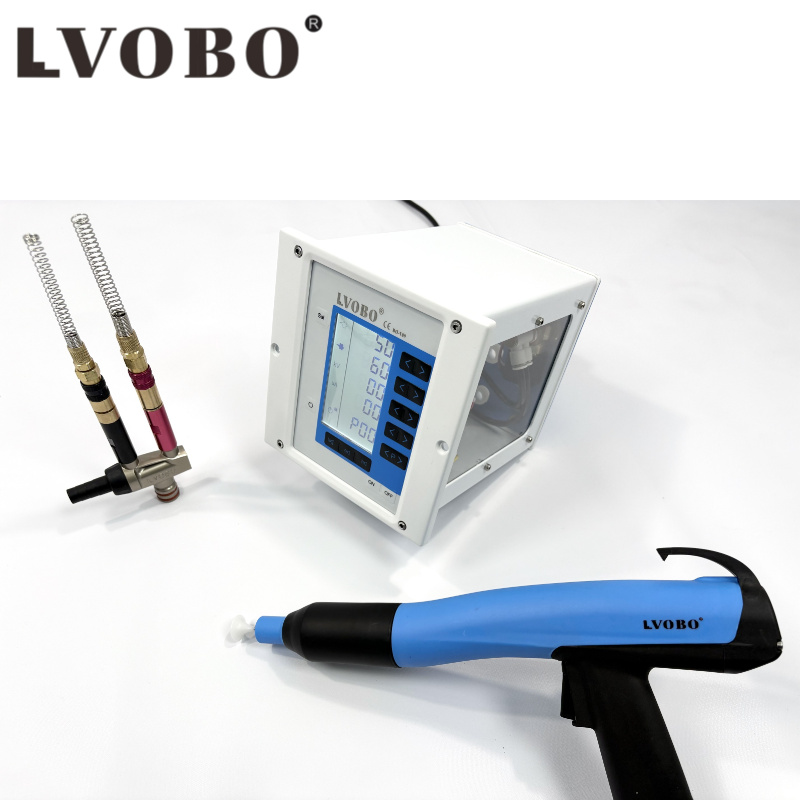

Intelligent Small Powder Electrostatic Spray Gun is a portable spraying equipment designed for small-scaleproduction, laboratory research and precision machining scenarios. lt integrates intelligent control, highperformance and compact design, perfect for workbenches, research and development laboratories or smallproduction lines with high space requirements。
1.The equipment comes with three formulas: plate surface coating, rework coating and dead corner surface coating, as well as 21 spraying procedures, enabling high-quality workpiece coating; it also features anautomatic qun cleaning function.
2.The control unit offers simple and clear operation for more convenient manaqement. Powder volume,atomization and cleaning adjustments are achieved via electronic touch, with the motherboard controllingthe inlet high-precision control valve to ensure accurate and constant air flow, thus quaranteeing precisepowder output and consistent spraying effects.
Item No :
BO-V09YZOrder(MOQ) :
1PCSPrice :
$:694Product Origin :
ChinaColor :
customizableShipping Port :
xia menLead Time :
30 DaysWeight :
30kgPayment :
T/T
Characteristic:
1. Small and light: easy to hold and move flexibly in the laboratory, suitable for small parts or small area spraying sample.
2. High utilization rate of powder: the powder cup is designed on the vibration plate to loosen the powder by vibration to ensure smooth powder supply, and compared with fluidization bucket, the environmental powder does not fly out and it is convenient to change the powder.
3. Diversified adjustment function: powder quantity 50-280g/min, static voltage 10-100kv can be adjusted to meet different powder spraying requirements.
4. Good electrostatic effect: can make the powder fully charged, produce strong electrostatic adsorption force, ensure that the powder is evenly and firmly attached to the surface of the coating, improve the spraying quality.
Detailed technical parameters:
-Static voltage range: 0-100kV continuous adjustable, can be accurately set according to different workpiece and powder characteristics to ensure the best static adsorption effect.
-Powder spray adjustment: 50-280g/min wide range adjustment, which can meet the spraying requirements from fine parts to large parts, realize precise powder supply, avoid powder waste.
-Fogging pressure: 0.1-0.6MPa is adjustable, combined with the unique spray gun structure, to achieve fine fogging of powder and ensure uniform coating.
-Bucket capacity: 250G powder cup design, easy to change the powder.
-Applicable powder particle size: 10um-1 5 0um, suitable for various powder coatings commonly used in the market, compatible.
-Spray gun weight: 6.40g, ergonomic design, easy and flexible operation, effectively reduce the labor intensity of the operator, improve work efficiency.
- Spray gun size: 340mm long × 70mm wide × 360mm high. It can be equipped with an extended gun head of 170/300/400mm. The compact and small spray gun design makes it easy to carry out spraying operation in complex workpieces and narrow space.
Apply:
1. Material research: used for the study of surface modification of new materials, such as spraying functional powder coatings on the surface of metals, ceramics and polymer materials to improve the surface properties of materials, such as wear resistance, corrosion resistance, conductivity, etc.
2. Product development: Carry out small batch spraying and sampling in the new product development stage to quickly verify the appearance, performance and process feasibility of the product, such as the preliminary research and development of electronic product shells, automobile parts, etc.
3. Teaching experiment: Materials science, chemical engineering, mechanical engineering and other related majors in universities and scientific research institutions are used for teaching experiment to make students understand the principle and process of electrostatic spraying.
Operation convenience and humanized design：
1. Simple operation interface: The equipment is equipped with an intuitive and simple operation panel, and the parameters are obvious at a glance. The operators only need to have a simple training, can easily get on the operation of the equipment, quickly master the operation method of the equipment, and realize accurate control.
2. Quick color change system: For the needs of multi-color spraying, an efficient quick color change system can be selected to complete the switching and cleaning of powder coating in a short period of time, greatly improving production efficiency and reducing the waste of coating and time cost in the process of color switching.
3. Intelligent fault diagnosis: The built-in intelligent fault diagnosis system can monitor the operation status of the equipment in real time. Once a fault occurs, the fault code and cause can be displayed accurately immediately, so that the maintenance personnel can quickly locate and solve the problem, shorten the downtime of the equipment, and reduce the maintenance cost.
High powder utilization rate: the powder cup is designed on the vibration plate to ensure the smooth powder supply, relatively compared to the fluidized bucket environmental protection powder is not Yang and convenient to change powder.
Spray gun parameters:
|
Parameter name |
Parameter details |
Parameter name |
Parameter details |
|
time to market |
In 2022 |
input voltage |
Single phase AC100-240V |
|
place of production |
China |
incoming frequency |
50-60Hz |
|
Charging mode |
Use AC AV220V |
interiorinput power |
40W |
|
Whether it is rechargeable |
deny |
Maximum output voltage of spray gun |
20-100 kV |
|
Duration of use |
Sustainable use |
Maximum output current of spray gun |
150uA |
|
Arc spray diameter |
15-280mm |
Spray powder adjustment range |
50-280 g/min |
|
Ejection distance |
300mm |
Powder particle size range |
10-150μm |
|
Powder bucket capacity |
250ml 500ml |
air flow rate |
0-130L/min |
|
Single spray gun weight |
550g |
Single spray gun size |
Length 340mm × width 70mm × height 360 mm |
Powder quantity parameter:
|
Parameter name |
Air simulation display values |
Air flow (L/min) |
Powder output (g/min) |
|
Pressure, flow rate, powder quantity |
40 |
49 |
140 |
|
60 |
100 |
200 |
|
|
80 |
130 |
250 |
|
|
100 |
145 |
280 |
High voltage and current parameters:
|
Parameter name |
Spray gun high voltage kv |
The distance is 25MM and the main current is ma |
The distance is 25MM spray gun currentua |
|
High voltage, main current, spray gun current |
20 |
450 |
25 |
|
40 |
500 |
60 |
|
|
60 |
580 |
80 |
|
|
80 |
700 |
110 |
|
|
100 |
790 |
130 |

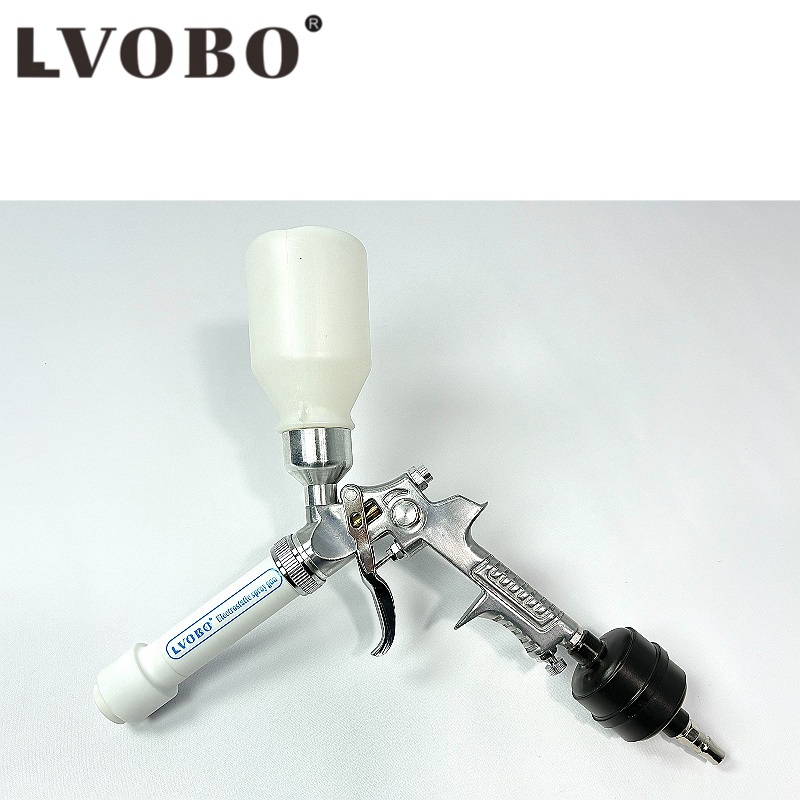

Friction Electrostatic Powder Spraying Tools are suitable for various laboratory powder spraying needs, such as a small amount of medicine spraying, micro powder spraying, powder multi-layer spraying experiments, anti-corrosion tests of materials on metal surfaces, small amount of spraying for color-changing DIY coatings, etc. No power supply, no electrostatic spark, powder friction electrostatic spraying gun. Secondary coating backspray workpiece coating sticky powder rate is high, will not be electrostatic breakdown pinhole concave point, primary spraying groove, safe and efficient. Suitable for laboratory materials spraying test, home DIY hub auto parts color change electrostatic powder spraying best tool.
Details

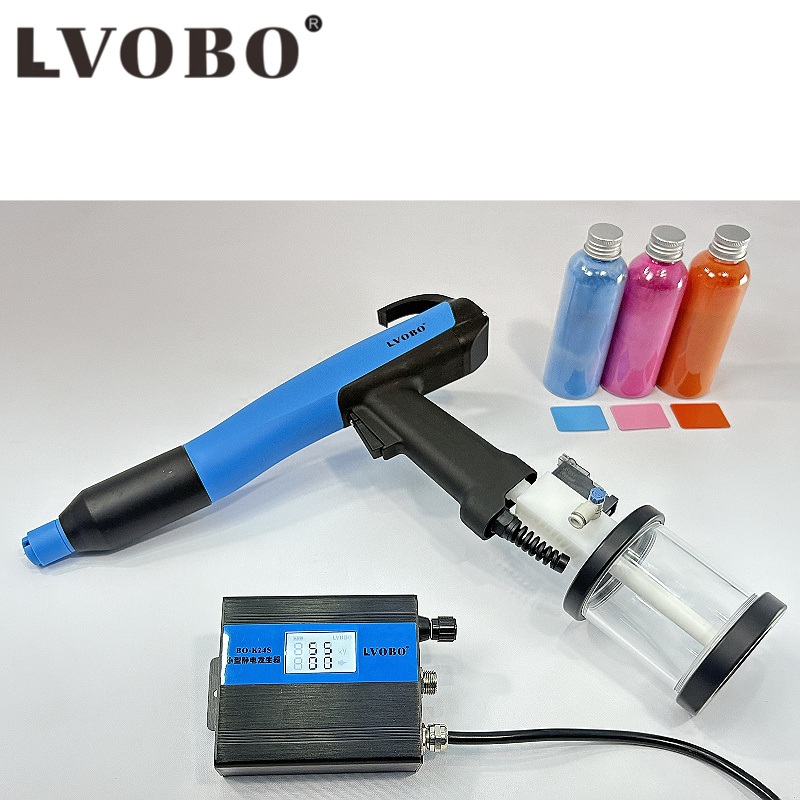

This Small Electrostatic Spray Gun is designed for laboratory small electrostatic powder spraying tools, including small - amount powder spraying, powder multi - layer spraying experiments, corrosion tests on the metal surface of materials, small - amount color - change DIY electrostatic spraying, and other laboratory powder spraying requirements. It is small, light, and portable for operation, allowing for flexible movement in the laboratory. With an internal DC12V lithium - battery power supply and gas pump, it is easy to carry out and suitable for spraying proofing of small parts or small areas.
Details

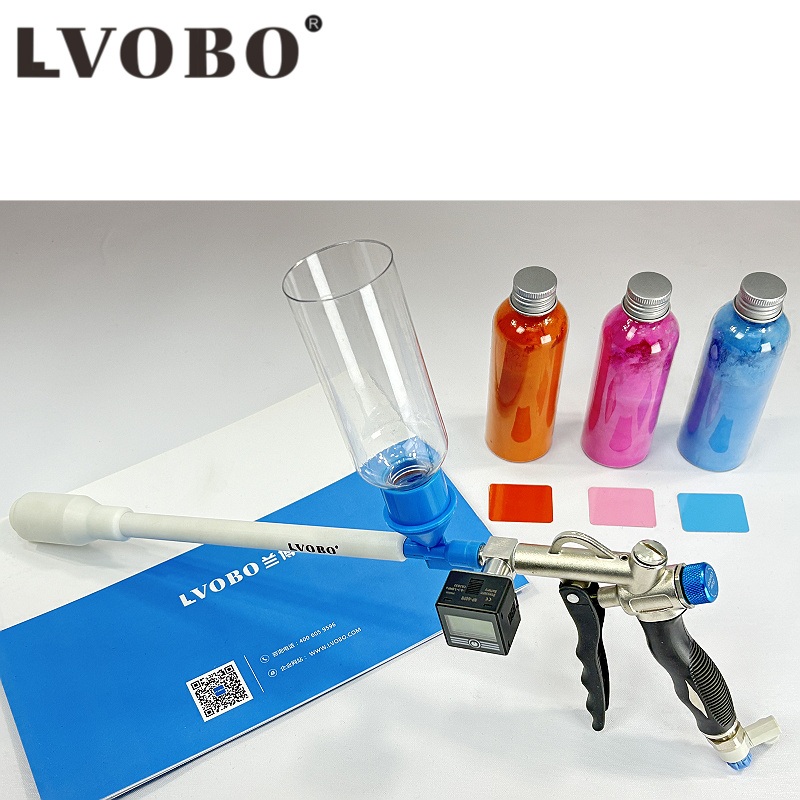

Small Powder Friction Electrostatic Spray Gun is specially designed for laboratory small electrostatic powder spraying tools. It is suitable for small - amount medicine spraying, trace powder spraying, powder multi - layer spraying experiments, material anti - corrosion tests on the metal surface, small - amount spraying color - change DIY coating, and other laboratory powder spraying requirements. No power supply, no electrostatic spark, powder friction electrostatic spraying gun. Secondary coating backspray workpiece coating sticky powder rate is high, will not be electrostatic breakdown pinhole concave point, primary spraying groove, safe and efficient. Suitable for laboratory materials spraying test, home DIY hub auto parts color change electrostatic powder spraying best tool.
Details

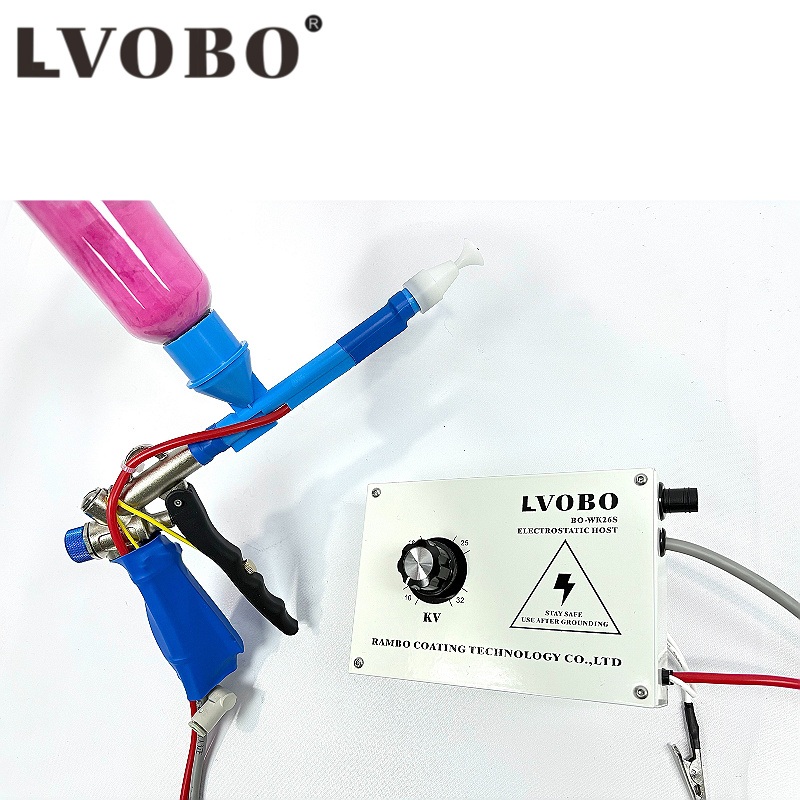

This Small Electrostatic Spray Gun is designed as a laboratory small - scale electrostatic powder spraying tool. It can meet various laboratory powder spraying requirements, such as a small - amount of powder spraying, multi - layer powder spraying experiments, corrosion tests of materials on metal surfaces, and small - scale color - change DIY electrostatic spraying.
Details
Intelligent Small Powder Electrostatic Spray Gun is a portable spraying equipment designed for small-scaleproduction, laboratory research and precision machining scenarios. lt integrates intelligent control, highperformance and compact design, perfect for workbenches, research and development laboratories or smallproduction lines with high space requirements。 1.The equipment comes with three formulas: plate surface coating, rework coating and dead corner surface coating, as well as 21 spraying procedures, enabling high-quality workpiece coating; it also features anautomatic qun cleaning function. 2.The control unit offers simple and clear operation for more convenient manaqement. Powder volume,atomization and cleaning adjustments are achieved via electronic touch, with the motherboard controllingthe inlet high-precision control valve to ensure accurate and constant air flow, thus quaranteeing precisepowder output and consistent spraying effects.
Details

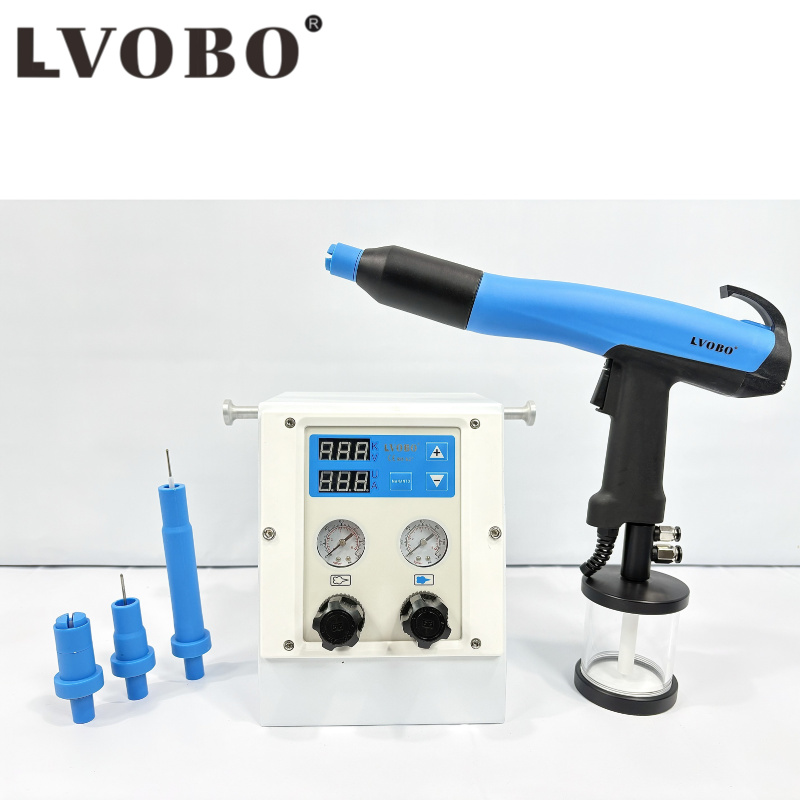

Laboratory powder electrostatic spray gun is designed for small-scale spraying experiment, powder sample, research and small batch production. It is suitable for university laboratories, powder coating research and development institutions and surface treatment scenarios of precision parts. Through the principle of high voltage electrostatic adsorption, the equipment realizes uniform and efficient powder coating, support metal, non-metal and other materials, to meet the needs of scientific research and production.
