Laboratory powder electrostatic spray gun is designed for small-scale spraying experiment, powder sample, research and small batch production. It is suitable for university laboratories, powder coating research and development institutions and surface treatment scenarios of precision parts. Through the principle of high voltage electrostatic adsorption, the equipment realizes uniform and efficient powder coating, support metal, non-metal and other materials, to meet the needs of scientific research and production.
Item No :
BO-K25YOrder(MOQ) :
1PCSPrice :
$:413Product Origin :
ChinaColor :
customizableShipping Port :
xia menLead Time :
30 DaysWeight :
30kgPayment :
T/T1, Small and light: easy to handheld operation and flexible movement in the laboratory, suitable for small workpiece or small area of spraying proofing.
2, High utilization rate of powder: electrostatic adsorption to reduce powder drift, powder cup design at the bottom of the spray gun hand, convenient sales to change powder.
3. Various adjustment functions: the amount of powder 50-280g / min, electrostatic voltage 10-100 kV can be adjusted to meet different powder spraying requirements.
4, Good electrostatic effect: it can make the powder fully charged, produce strong electrostatic adsorption force, ensure that the powder is evenly and firmly attached to the surface of the coating, and improve the spraying quality.
Applicable Occasions:
1, Material research: used for surface modification of new materials, such as spraying functional powder coating on the surface of metal, ceramics, polymer materials, improve the surface properties of materials, such as wear resistance, corrosion resistance, electrical conductivity, etc.
2. Product research and development: In the new product development stage, quickly verify the product appearance, performance and process feasibility, such as the early research and development of electronic product shell, auto parts, etc.
3. Teaching experiment: material science, chemical engineering, mechanical engineering and other related majors in universities and scientific research institutions are used for teaching experiment, so that students can understand the principle and process of electrostatic spraying.

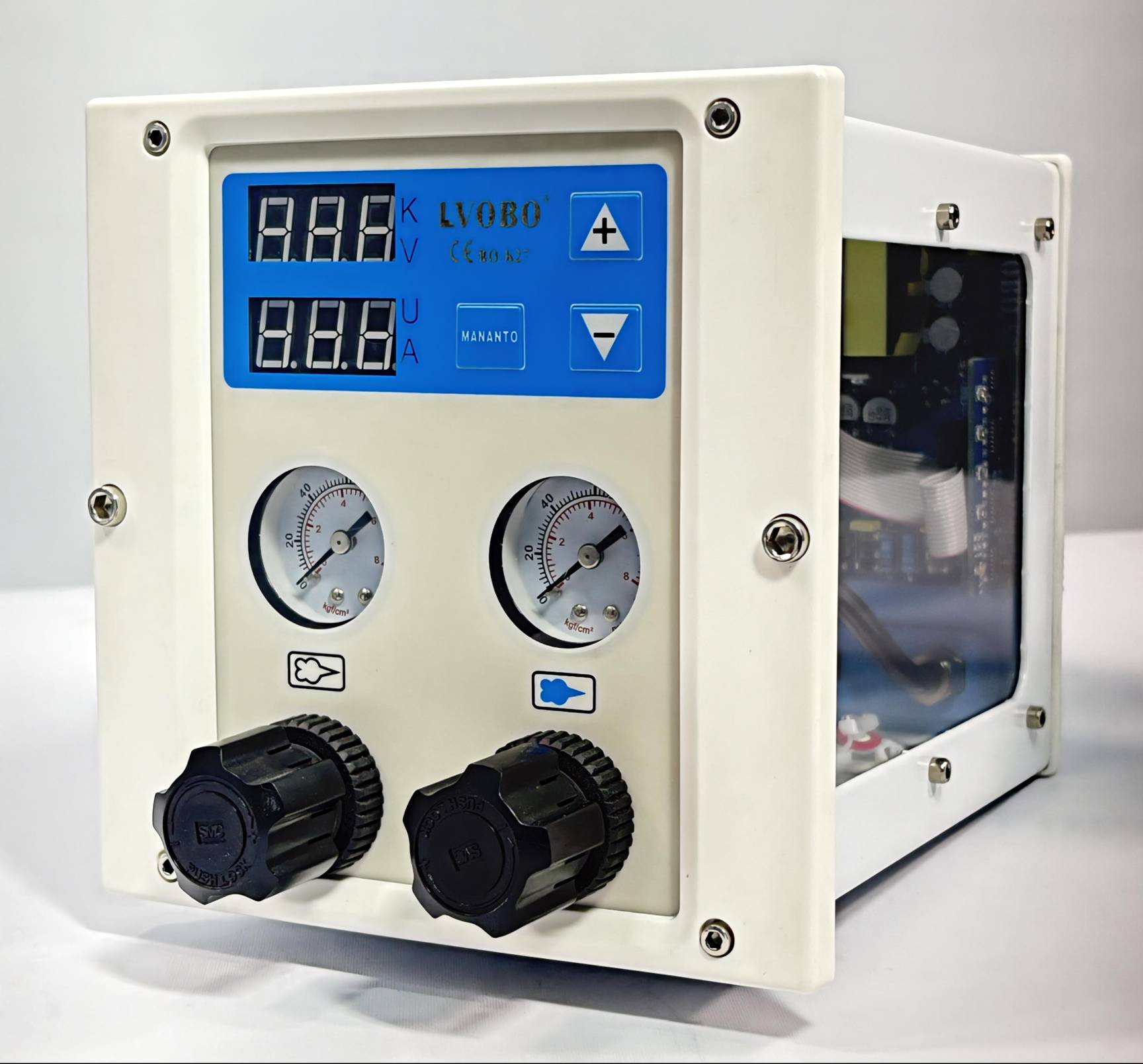

The main engine is light and easy to carry out, and can be conveniently taken with spraying operation.
The spray gun weighs only 550g, and ergonomic design to achieve balance; delicacy and lightweight greatly reduce operation fatigue. Make spraying easier and easier. Taking into account a variety of superior characteristics, durable, easy to maintain. Excellent powder coating rate and comprehensive spraying performance to improve the product surface layer.
Two fluidized powder cups can be selected, respectively, 250g, 500g size, to meet the size of the spraying needs.
BO-K25Y Laboratory Powder Electrostatic Gugun:
Parameter name |
Parameter details |
Parameter name |
Parameter details |
time to market |
In 2023 |
input voltage |
Single phase AC210-240V |
place of production |
China |
incoming frequency |
50-60Hz |
Charging mode |
Use AC AV220V |
interiorinput power |
60W |
Whether it is rechargeable |
deny |
Maximum output voltage of spray gun |
0-100 kV |
Duration of use |
Sustainable use |
Maximum output current of spray gun |
150uA |
Arc spray diameter |
15-280mm |
Spray powder adjustment range |
50-500 g/min |
Ejection distance |
300mm |
Powder particle size range |
10-150μm |
Powder bucket capacity |
40l |
air flow rate |
0-115L/min |
Single spray gun weight |
550g |
Single spray gun size |
Length 340mm × width 35mm × height 360 mm |
Powder quantity parameter:
Parameter name |
Air pressure (kg) |
Air flow (L/min) |
Powder output (g/min) |
Pressure, flow rate, and powder volume |
0.5 |
5 |
35 |
0.8 |
8 |
50 |
|
1.0 |
45 |
150 |
|
1.5 |
55 |
200 |
|
2.0 |
65 |
280 |
High voltage and current parameters:
Parameter name |
High pressure parameter (kv) |
Host current parameters (ma) |
Gugun current parameter (ua) |
High voltage, main current, spray gun current |
20 |
500 |
48 |
40 |
750 |
75 |
|
60 |
790 |
85 |
|
80 |
800 |
90 |
|
100 |
810 |
100 |
