Home Powder Coating Gun

Electrostatic flocking spray gun

Electrostatic flocking spray gun

Velvet fabric electrostatic flocking machine, automobile velvet cloth electrostatic flocking machine, fly hair spray machine, non-woven fabric toy flocking machine, spray gun

  • Item No :

    Bo-K24R
  • Order(MOQ) :

    1PCS
  • Price :

    $:190
  • Product Origin :

    China
  • Color :

    customizable
  • Shipping Port :

    shen zhen
  • Lead Time :

    7 Days
  • Weight :

    4.5kg
  • Payment :

    T/T

Small and light:

easy to handle and move flexibly in the laboratory, suitable for small workpieces or small area of velvet plant sample

High villus utilization rate:

the electrostatic adsorption reduces the dispersion of villus, and the villus cup is designed at the bottom of the spray gun handle for easy replacement.

Versatile control functions:

Adjustable brush pile output (5-85g/min) and electrostatic voltage (10-100kV) to meet diverse powder coating requirements.

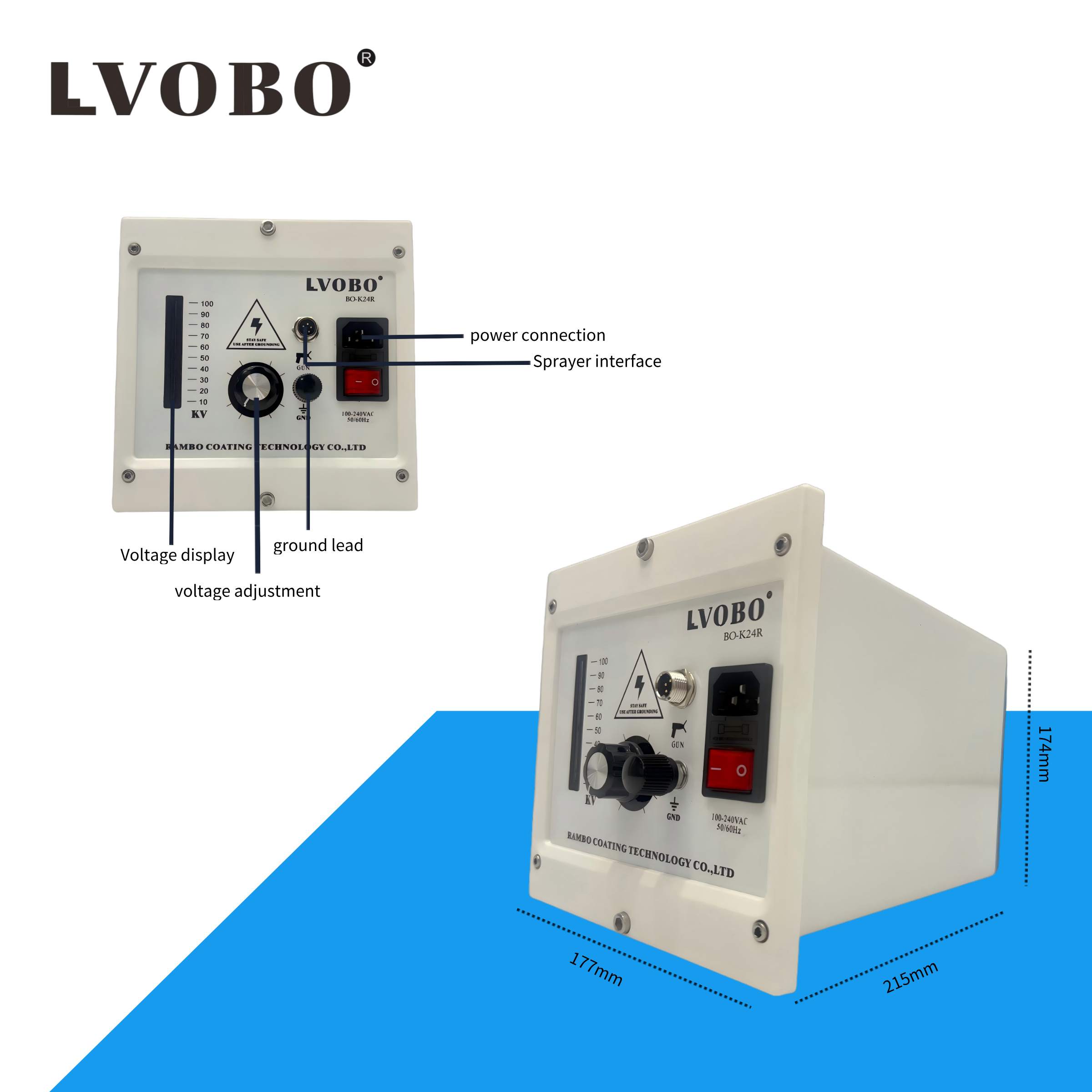

Simple operation interface:



The equipment is equipped with intuitive and simple operation panel, and the parameters are clear at a glance. Operators only need to go through simple training to easily master the operation method of the equipment and realize accurate control.

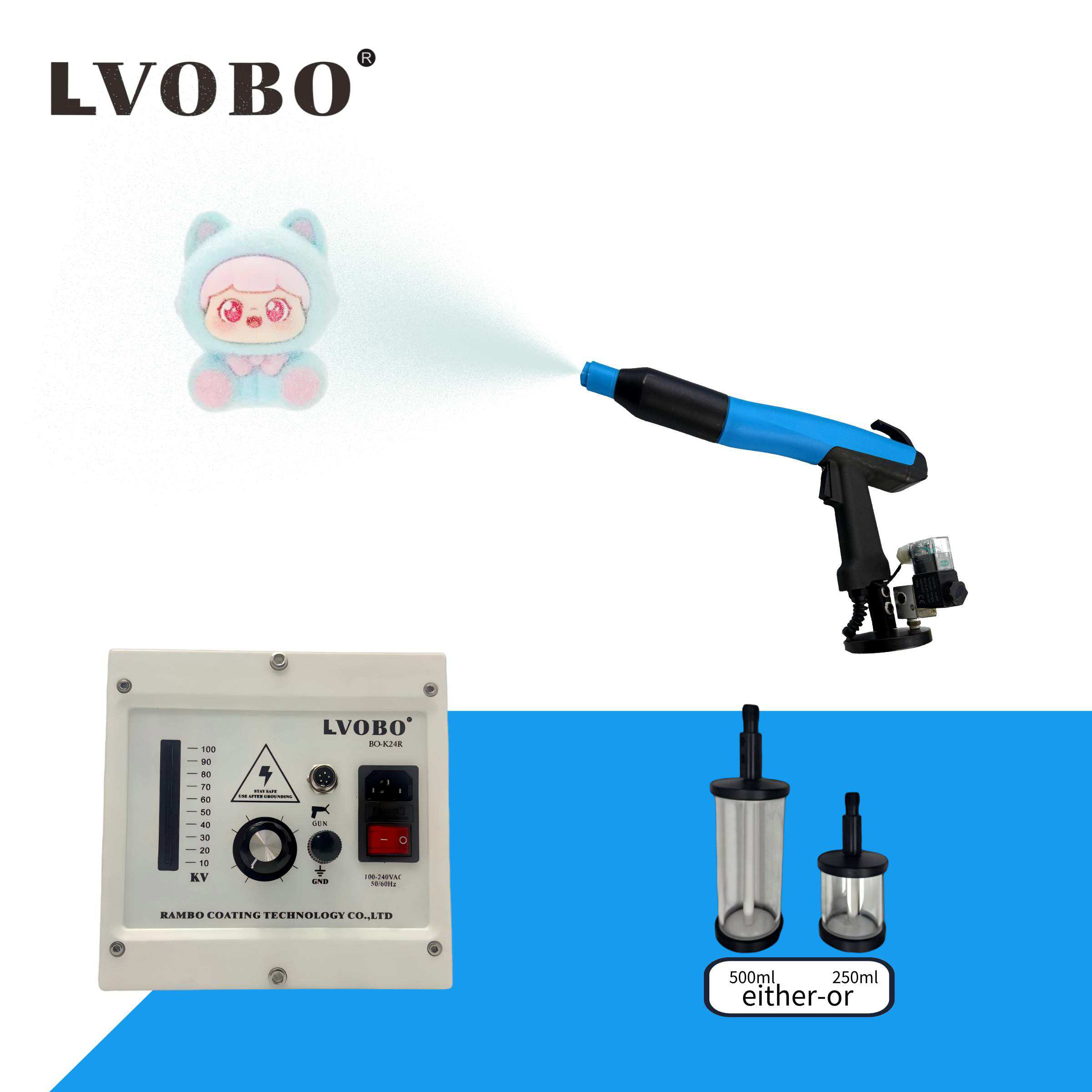

  The compact electrostatic flocking gun features built-in 100KV high-voltage technology for creating 3mm or thinner flocking, with a lightweight and durable design that's easy to operate. Its gentle powder discharge ensures high electrostatic penetration, while adjustable nozzle settings allow precise control of flocking volume. The easy-to-clean small-flock cup makes maintenance hassle-free. Perfect for automotive interior decoration, toy fabric flocking, DIY painting projects, and various customization needs.

BO-K24R laboratory electrostatic spray gun:

Parameter name

Parametric details

Parameter name

Parametric details

 time to market

2025

 input voltage

Single-phase AC 100-240V

 place of production

 China

 incoming frequency

50-60Hz

Charging mode

Use AC AV220V

 interiorinput power

40W

Whether it can be recharged

 deny

Maximum output voltage of nozzle

10 - 100 kV

Duration of use

Sustainability

Maximum output current of nozzle

150uA

Spray arc diameter

15-280mm

Spray powder adjustment range

50 - 250 g/min

Jet range

300mm

Powder particle size applicable range

10 - 150μm

Capacity of powder bin

250ml 500ml

 air flow rate

0-130L/min

Weight of single nozzle

550g

Single nozzle size

Length 440mm × width 70mm × height 360mm





Air pressure of nozzle (kg)

Air flow

(L/min)

Villi yield

(g/min)

Air, flow, villus count

1.0

45

60

2.0

116

75

3.0

150

85



Parameter name

Spray gun high voltage kv

Main current ma

Emission current ua

High voltage, main current, spray gun current

20

500

48

40

750

75

50

790

85
