LVBO BO-DFY Low Temperature Thermostatic Magnetic Stirring Reaction Bath with Internal External Circulation
The LVBO BO-DFY Low-Temperature Thermostatic Magnetic Stirring Reaction Bath combines controlled heating and cooling, magnetic stirring, and internal/external fluid circulation in one laboratory system. It is designed for research, material development, pharmaceutical R&D, chemical laboratories, and quality-control teams that need stable temperature conditions without adding a separate shaft-driven stirrer. PID control supports ±0.1°C temperature fluctuation under specified operating conditions, while the stainless-steel inner bath and LCD interface simplify daily use. Multiple capacities and model-dependent temperature ranges help distributors and end users match the equipment to different sample loads. Cooling capacity is adjustable within the listed range. Over-temperature protection, alarm, and automatic power cut-off support safer operation. Before ordering, verify the chosen fluid, voltage, process load, vessel size, and temperature requirement.
Item No :
BO-DYF5/10Order(MOQ) :
1Price :
USD610Product Origin :
ChinaColor :
WhiteShipping Port :
Xia MenLead Time :
7daysWeight :
10kgPayment :
T/TMatch cooling, heating, stirring, and circulation to the operating conditions of your laboratory process.

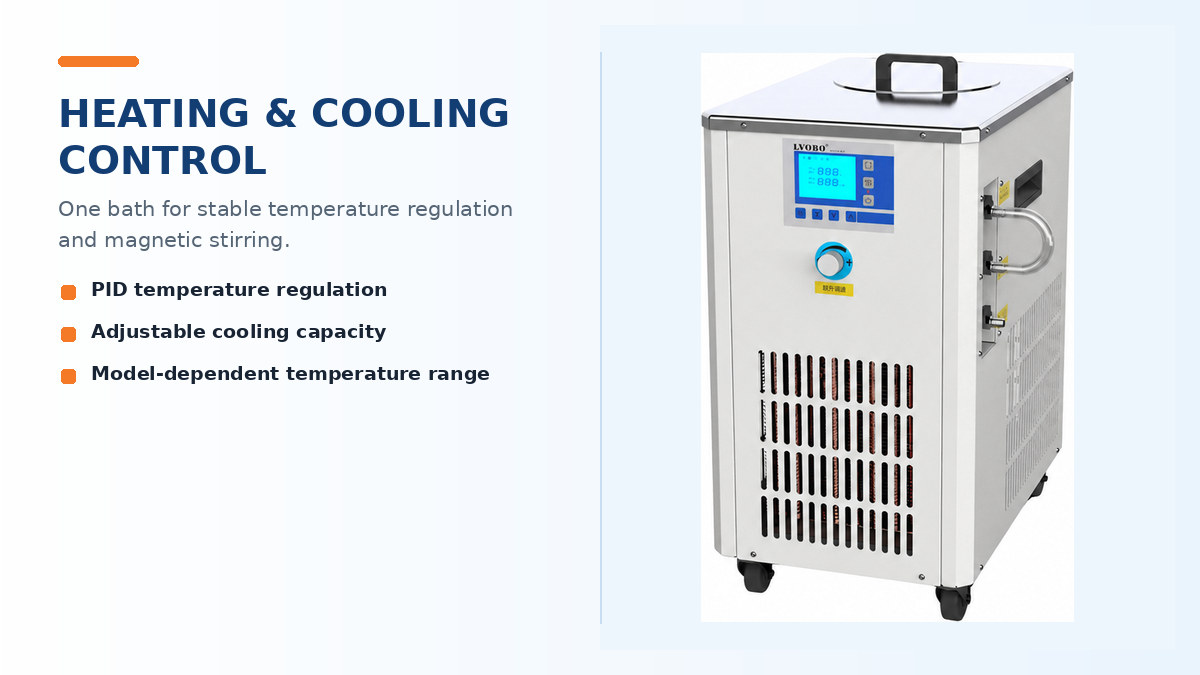

Running separate temperature-control and stirring equipment can complicate installation and process matching. The BO-DFY combines controlled heating and refrigeration with contact-free magnetic stirring. Its stainless-steel inner bath supports laboratory workflows that require uniform sample conditions and easier cleaning.

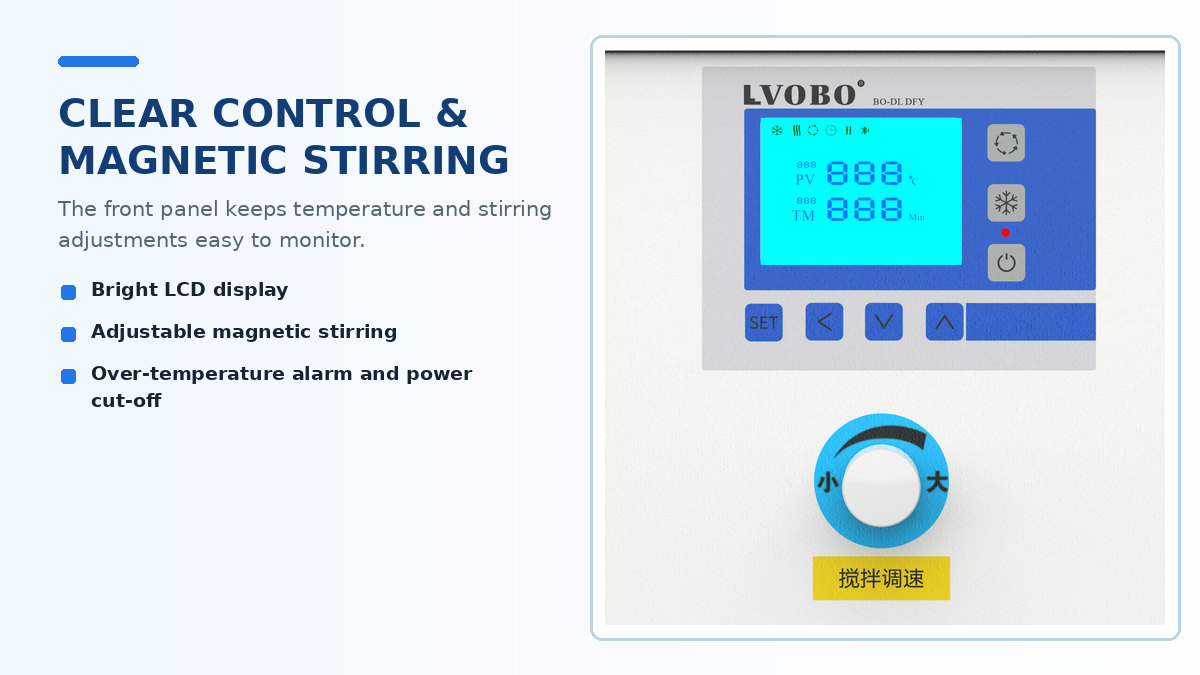

The bright LCD panel displays operating information, while the front controls allow temperature and magnetic stirring adjustments. High-precision sensing supports PID regulation. Over-temperature protection can trigger an alarm and automatically cut power when protection conditions are reached.

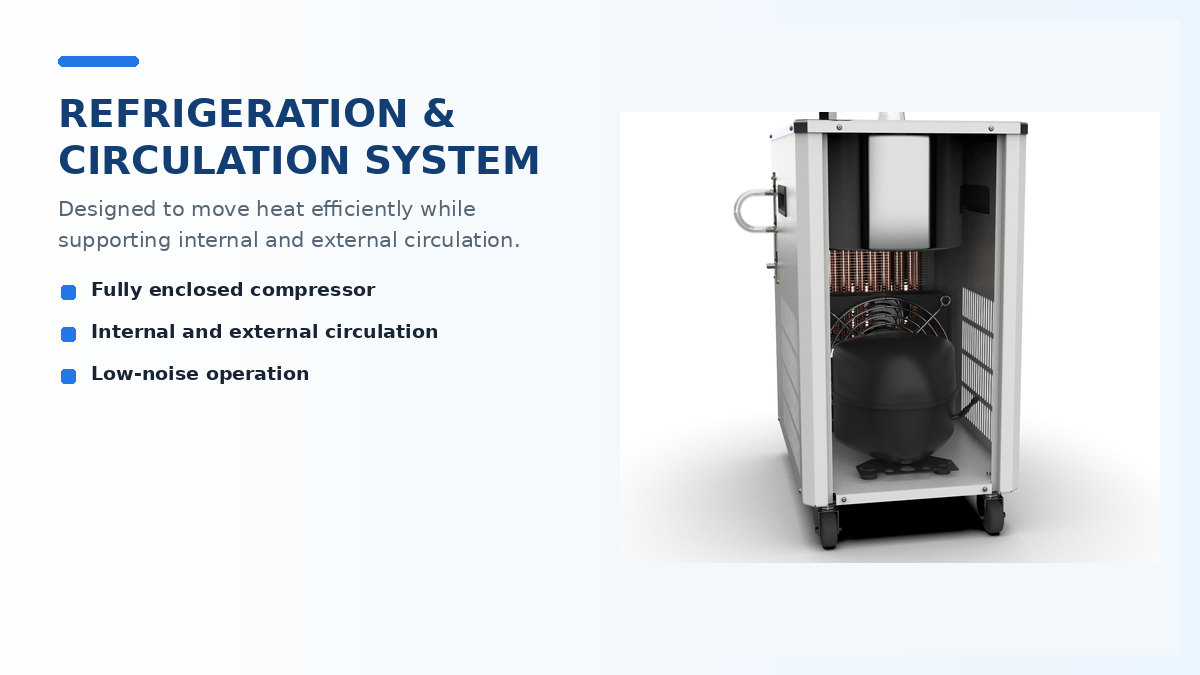

A fully enclosed compressor provides refrigeration in a compact cabinet. Internal circulation promotes bath uniformity, and external circulation supplies temperature-controlled fluid to compatible laboratory equipment. Use a fluid suitable for the chosen temperature; compatibility should be verified during model selection.
Temperature ranges are no-load adjustment ranges. Cooling capacity values show the adjustable operating range.
| Model | Bath Capacity (L) |
Temperature Range No Load (°C) |
Cooling Capacity Adjustable (W) |
Temperature Fluctuation |
Power Supply | Circulation Flow | Pump Head |
|---|---|---|---|---|---|---|---|
| BO-DFY5/10 | 5 | -10 to 99 | 1248-319 | ±0.1°C | 220 V ±10% 50 Hz |
20 L/min | 4-6 m |
| BO-DFY5/20 | 5 | -20 to 99 | 1248-319 | ||||
| BO-DFY5/25 | 5 | -25 to 99 | 1814-447 | ||||
| BO-DFY5/30 | 5 | -30 to 99 | 2653-627 | ||||
| BO-DFY5/40 | 5 | -40 to 99 | 1956-602 | ||||
| BO-DFY5/60 | 5 | -60 to 99 | 1956-330 | ||||
| BO-DFY5/80 | 5 | -80 to 99 | 1956-180 | ||||
| BO-DFY5/120 | 5 | -120 to 99 | 3808-160 | ||||
| BO-DFY10/10 | 10 | -12 to 98 | 1825-820 | ±0.1°C | 220 V ±10% 50 Hz |
30 L/min | 4-6 m |
| BO-DFY10/20 | 10 | -23 to 98 | 2100-780 | ||||
| BO-DFY10/25 | 10 | -26 to 98 | 2170-780 | ||||
| BO-DFY10/30 | 10 | -32 to 98 | 2436-820 | ||||
| BO-DFY10/40 | 10 | -40 to 98 | 2548-980 | ||||
| BO-DFY10/60 | 10 | -63 to 98 | 2732-310 | ||||
| BO-DFY10/80 | 10 | -83 to 98 | 2900-230 | ||||
| BO-DFY10/120 | 10 | -120 to 98 | 2982-200 | ||||
| BO-DFY20/20 | 20 | -23 to 98 | 3126-950 | ±0.1°C | 220 V ±10% 50 Hz |
30 L/min | 4-6 m |
| BO-DFY20/30 | 20 | -32 to 98 | 3237-1023 | ||||
| BO-DFY20/40 | 20 | -40 to 98 | 3635-980 | ||||
| BO-DFY20/60 | 20 | -63 to 98 | 4120-510 | ||||
| BO-DFY20/80 | 20 | -83 to 98 | 4530-360 | ||||
| BO-DFY20/120 | 20 | -120 to 98 | 4889-270 | ||||
| BO-DFY30/20 | 30 | -23 to 98 | 3780-1150 | ±0.1°C | 220 V ±10% 50 Hz |
30 L/min | 4-6 m |
| BO-DFY30/30 | 30 | -32 to 98 | 3960-1200 | ||||
| BO-DFY30/40 | 30 | -40 to 98 | 4080-1270 | ||||
| BO-DFY30/60 | 30 | -63 to 98 | 4330-680 | ||||
| BO-DFY30/80 | 30 | -83 to 98 | 4679-422 | ||||
| BO-DFY30/120 | 30 | -120 to 98 | 4968-330 | ||||
| BO-DFY40/20 | 40 | -23 to 98 | 4322-1280 | ±0.1°C | 380 V ±10% 50 Hz |
70 L/min | 6-8 m |
| BO-DFY40/30 | 40 | -32 to 98 | 4390-1300 | ||||
| BO-DFY40/40 | 40 | -40 to 98 | 4510-1320 | ||||
| BO-DFY40/60 | 40 | -63 to 98 | 4690-980 |

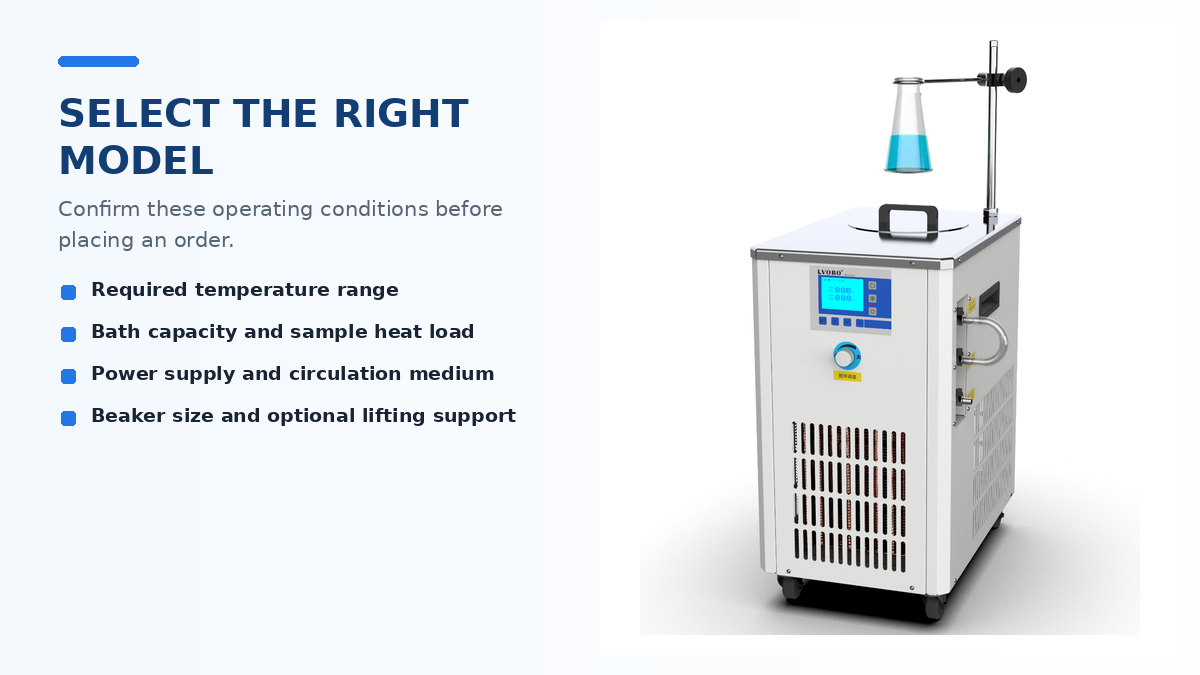

Before ordering, match the lowest required temperature, bath capacity, sample heat load, power supply, circulation medium, and vessel dimensions. An optional lifting support can be used with a beaker to adjust the working height. Confirm the support and beaker dimensions as part of the selected configuration.
Suitable for controlled-temperature reaction work, sample conditioning, material development, process research, and quality-control experiments in universities, research institutes, chemical laboratories, pharmaceutical R&D facilities, and industrial laboratories.
Is the lifting support included?
The lifting support is optional and is intended for use with a beaker. Confirm whether it is included in the quoted configuration.
How should the circulation medium be selected?
Choose the medium according to the required operating temperature and confirm compatibility before ordering.
What should be checked before connecting power?
Verify that the selected model and supply voltage match the installation site. The confirmed models in the table use either 220 V or 380 V, depending on configuration.
The LVBO BO-DFY Low-Temperature Thermostatic Magnetic Stirring Reaction Bath combines controlled heating and cooling, magnetic stirring, and internal/external fluid circulation in one laboratory system. It is designed for research, material development, pharmaceutical R&D, chemical laboratories, and quality-control teams that need stable temperature conditions without adding a separate shaft-driven stirrer. PID control supports ±0.1°C temperature fluctuation under specified operating conditions, while the stainless-steel inner bath and LCD interface simplify daily use. Multiple capacities and model-dependent temperature ranges help distributors and end users match the equipment to different sample loads. Cooling capacity is adjustable within the listed range. Over-temperature protection, alarm, and automatic power cut-off support safer operation. Before ordering, verify the chosen fluid, voltage, process load, vessel size, and temperature requirement.
