Home Powder Coating Gun

Electrostatic powder gun, small fabric spraying machine

Electrostatic powder gun, small fabric spraying machine

  The electrostatic powder spraying machine operates based on the principle of electrostatic adsorption. When powder coating is sprayed from the spray gun, the powder particles are negatively charged by the high-voltage electrostatic field. And the coated workpiece is grounded, forming a positive potential difference. Under the traction of electric field force, negatively charged powder particles quickly and uniformly adsorb onto the surface of the workpiece, forming a flat and dense coating. Subsequently, after heating treatment in the curing furnace, the powder coating melts, flattens, and solidifies, tightly adhering to the surface of the workpiece, endowing it with excellent appearance and protective performance.

  • Item No :

    Bo-k26y
  • Order(MOQ) :

    one
  • Price :

    $:292
  • Product Origin :

    Fujian
  • Color :

    customizable
  • Shipping Port :

    Xiamen
  • Lead Time :

    7day
  • Weight :

    9kg
  • Payment :

    T/T

1. Efficient powder coating rate: Advanced electrostatic generation device can generate a stable and strong electrostatic field, ensuring maximum adsorption of powder coating onto the workpiece, significantly improving powder coating rate, effectively reducing coating waste, and lowering production costs.

2. Uniform coating quality: The carefully designed spray gun structure and optimized airflow control system result in excellent atomization effect of powder coating, and the sprayed powder is finely and uniformly distributed in a fan-shaped shape. Whether it is a complex shaped workpiece or a large area of flat surface, uniform and consistent coating thickness can be achieved, with a smooth and flat surface, no sagging or orange peel phenomenon, and coating quality far exceeding traditional spraying methods.

3. Precise parameter adjustment: Key parameters such as powder spraying amount, atomization pressure, and electrostatic voltage can be accurately adjusted. Equipment parameters can be flexibly adjusted according to the material, shape, size, and coating process requirements of different workpieces to meet diverse production needs, achieving ultimate operational convenience and adaptability.

4.Ergonomic design aims to achieve a high degree of balance; Exquisite and lightweight greatly reduce operational fatigue. Make spraying easier and simpler. Balancing multiple superior features, durability, and ease of maintenance. Excellent powder coating rate and comprehensive spraying performance improve the surface coating of the product.

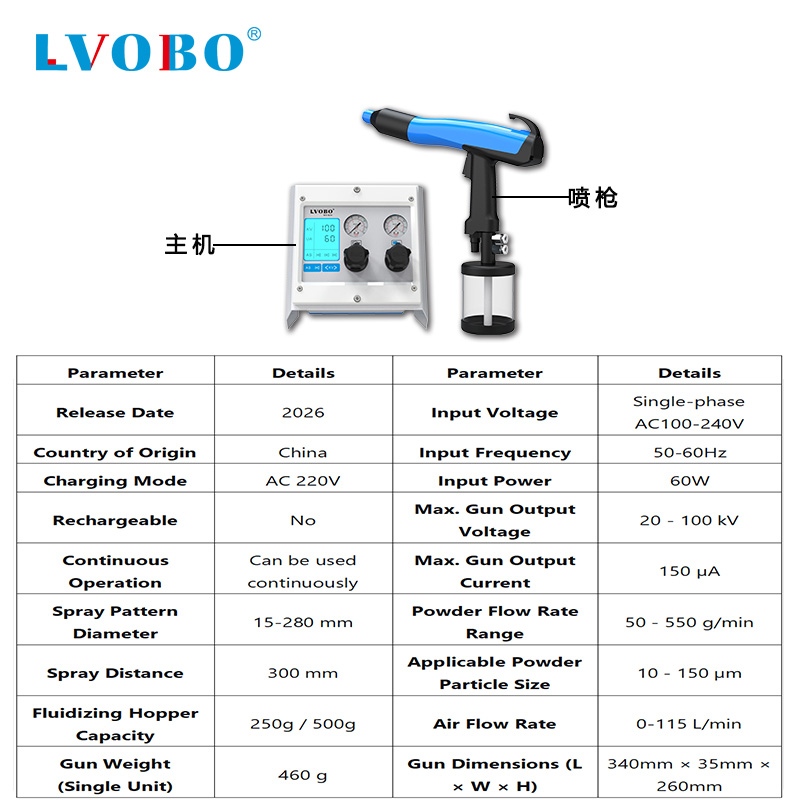

BO-K26Y laboratory electrostatic spray gun:

Parameter name

Parametric details

Parameter name

Parametric details

 time to market

2025

 input voltage

Single-phase AC 100-240V

 place of production

 China

 incoming frequency

50-60Hz

Charging mode

Use AC AV220V

 interiorinput power

60W

Whether it can be recharged

 deny

Maximum output voltage of nozzle

10 - 100 kV

Duration of use

Sustainability

Maximum output current of nozzle

150uA

Spray arc diameter

15-280mm

Spray powder adjustment range

50 - 550 g/min

Jet range

300mm

Powder particle size applicable range

10 - 150μm

Capacity of powder bin

250ml 500ml

 air flow rate

0-115L/min

Weight of single nozzle

460g

Single nozzle size

Length 340mm × width 35mm × height 260mm
