LVOBO BO-VX26S Cordless Electrostatic Powder Coating Gun with Built-In Air Pump and Dual Batteries
The LVOBO BO-VX26S is a portable electrostatic powder coating gun developed for distributors and users handling samples, small batches, laboratory work, repairs and on-site coating jobs. Its integrated air supply removes the need for an external air compressor, while two replaceable batteries help operators keep work moving between charges. Stable, adjustable powder delivery supports cleaner material control, and the lightweight gun body is easier to carry between work areas. Two powder cups are supplied for different job sizes. Designed for properly grounded conductive metal parts, the BO-VX26S combines portable operation with direct voltage and airflow control. It applies powder only; coated parts must be cured separately in a suitable oven. Low sample and bulk order thresholds make it practical for market testing, dealer stocking and project-based purchasing.
Item No :
BO-VX26SOrder(MOQ) :
1Price :
$232Product Origin :
ChinaColor :
BlueShipping Port :
Xia MenLead Time :
7dasWeight :

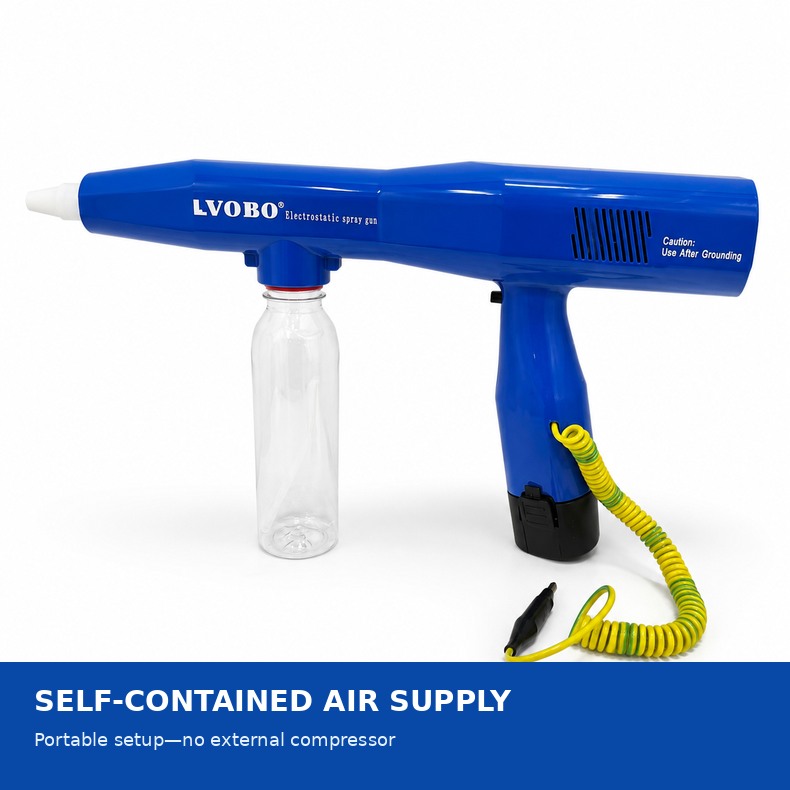

T/TMove between sample, repair and short-run coating tasks without installing a separate compressed-air system.

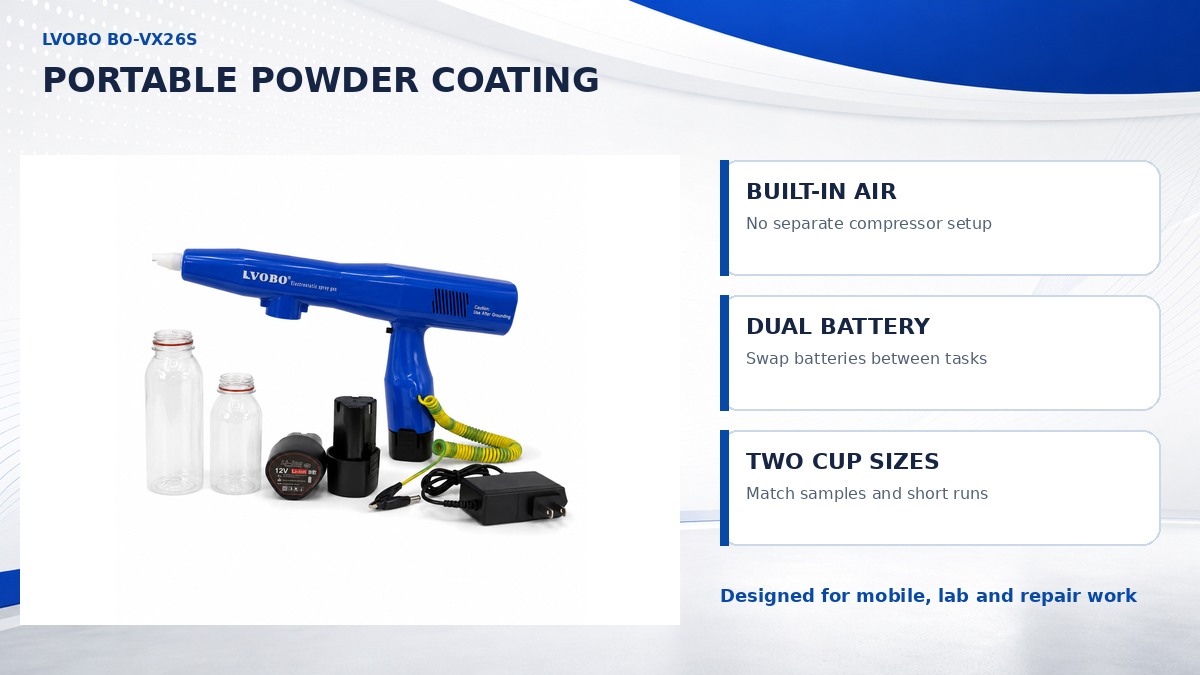

The internal air pump and cordless power architecture reduce the equipment needed at the work area. Operators can change batteries between tasks and select the powder cup that better matches the amount of coating required, making the unit useful for distributors serving workshops, laboratories and mobile maintenance teams.

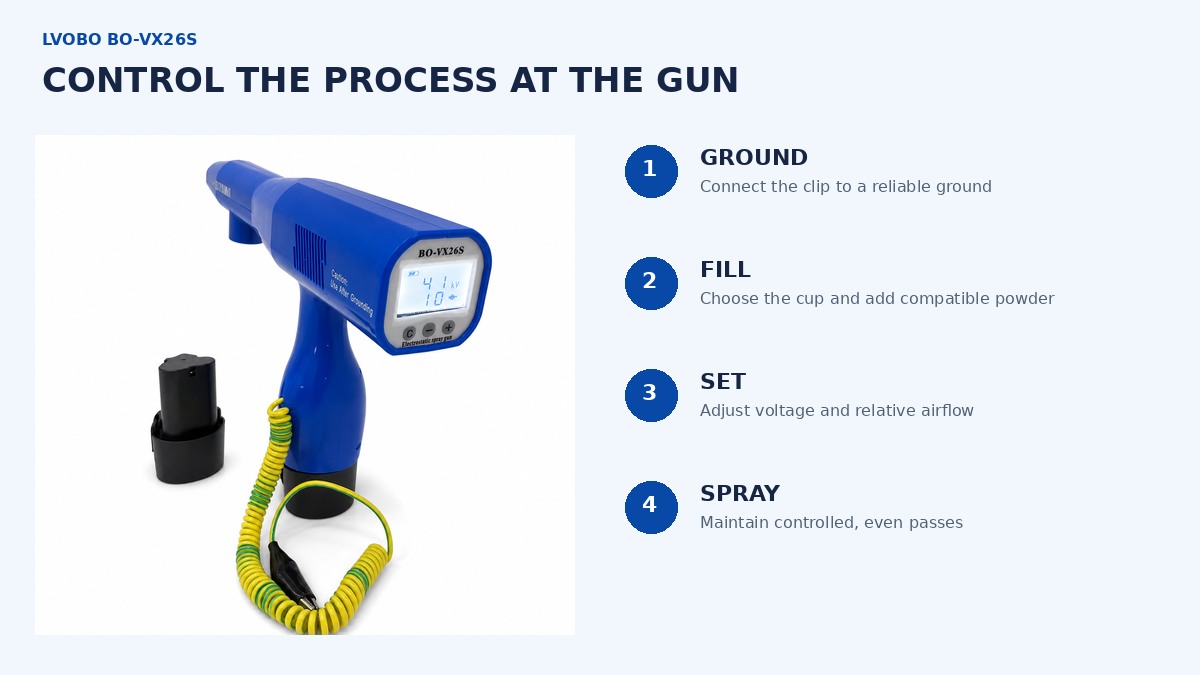

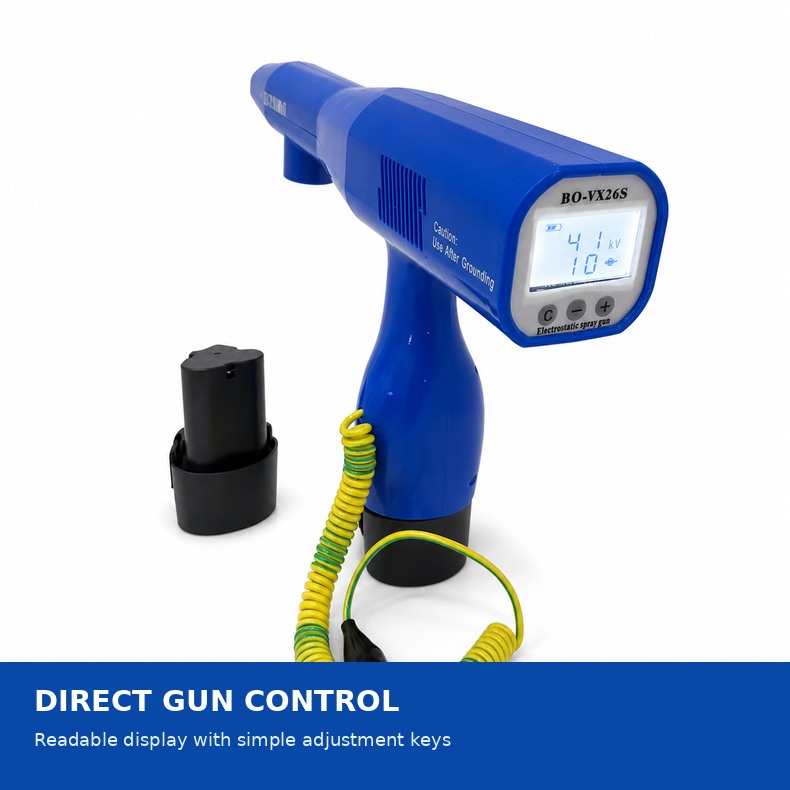

The rear display keeps the operating settings in view. The operator can adjust electrostatic voltage and the relative airflow setting from the gun, then regulate powder output through the air delivery. This supports more consistent feeding and helps avoid using more powder than the task requires.

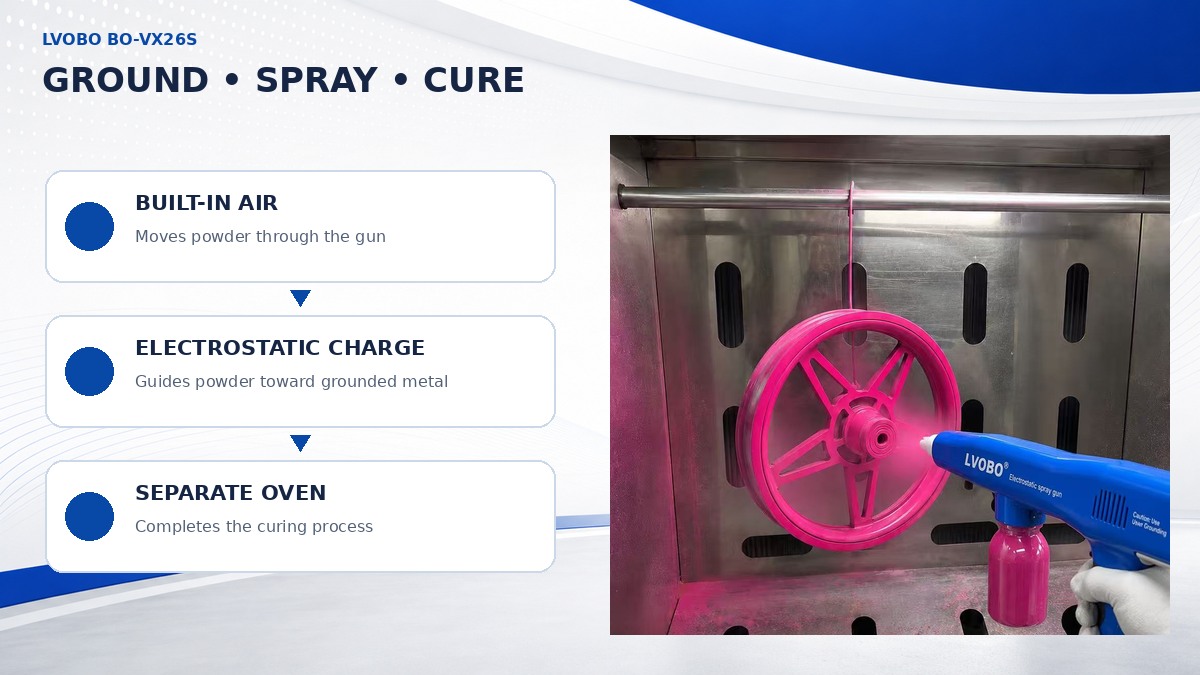

Connect the grounding clip to the conductive metal workpiece or a reliable grounding point before spraying. The built-in air supply carries powder through the gun while the electrostatic field helps charged powder move toward the grounded part. After coverage is complete, transfer the workpiece to a separate curing oven; the gun does not provide heating or curing.
| Model | BO-VX26S |
| Gun Input | DC 12 V |
| Input Power | 12 W |
| Electrostatic Output Voltage | 10–50 kV, adjustable |
| Maximum Output Current | 120 μA, non-adjustable maximum value |
| Airflow Setting | 0–100, adjustable unitless relative setting |
| Powder Output | 12–60 g/min, adjusted through air delivery |
| Maximum Effective Spray Distance | 150 mm |
| Tested Powder Particle Size | 10–150 μm |
| Powder Cup Capacities | 250 g and 500 g |
| Air Supply | Integrated air pump |
| Runtime per Fully Charged Battery | Approximately 30 minutes; actual time varies by settings and conditions |
| Gun Body Weight | Approximately 800 g, excluding battery, cup and powder |
| Gun Dimensions | 360 × 220 × 70 mm with battery installed, excluding powder cup |
| Charger | 220 V input, China two-flat-pin plug |
| Package Size | 43.5 × 28 × 10 cm |
| Gross Weight | 1.45 kg per set |
Each set includes the powder coating gun, two replaceable batteries, one charger, 250 g and 500 g powder cups, and a grounding lead with clip. No cleaning brush, tool kit or storage case is included. One unit can be ordered for sampling; bulk orders start from five units. Under normal conditions, orders of up to 50 units can generally be delivered in about 10 days. Larger orders are scheduled according to quantity.
Is the BO-VX26S intended for continuous production lines?
No. It is positioned for samples, small batches, laboratory tests, repairs and mobile work rather than continuous conveyor production.
Can it be used directly on wood or plastic?
Its standard application is a properly grounded conductive metal part. Non-conductive substrates require special preparation and process validation and are not presented as a standard use.
What is the warranty coverage?
The complete unit carries a 12-month warranty. Wear components, including the spray-gun motor base and similar consumable parts, are excluded.
Contact our team before ordering to confirm local charger compatibility, quantity and delivery schedule.
WhatsApp Contact
Laboratory powder electrostatic spray gun is designed for small-scale spraying experiment, powder sample, research and small batch production. It is suitable for university laboratories, powder coating research and development institutions and surface treatment scenarios of precision parts. Through the principle of high voltage electrostatic adsorption, the equipment realizes uniform and efficient powder coating, support metal, non-metal and other materials, to meet the needs of scientific research and production.
Details
This Small Electrostatic Spray Gun is designed as a laboratory small - scale electrostatic powder spraying tool. It can meet various laboratory powder spraying requirements, such as a small - amount of powder spraying, multi - layer powder spraying experiments, corrosion tests of materials on metal surfaces, and small - scale color - change DIY electrostatic spraying.
Details
This Small Electrostatic Spray Gun is designed for laboratory small electrostatic powder spraying tools, including small - amount powder spraying, powder multi - layer spraying experiments, corrosion tests on the metal surface of materials, small - amount color - change DIY electrostatic spraying, and other laboratory powder spraying requirements. It is small, light, and portable for operation, allowing for flexible movement in the laboratory. With an internal DC12V lithium - battery power supply and gas pump, it is easy to carry out and suitable for spraying proofing of small parts or small areas.
Details
Friction Electrostatic Powder Spraying Tools are suitable for various laboratory powder spraying needs, such as a small amount of medicine spraying, micro powder spraying, powder multi-layer spraying experiments, anti-corrosion tests of materials on metal surfaces, small amount of spraying for color-changing DIY coatings, etc. No power supply, no electrostatic spark, powder friction electrostatic spraying gun. Secondary coating backspray workpiece coating sticky powder rate is high, will not be electrostatic breakdown pinhole concave point, primary spraying groove, safe and efficient. Suitable for laboratory materials spraying test, home DIY hub auto parts color change electrostatic powder spraying best tool.
Details
This small electrostatic spray gun is designed for laboratory small electrostatic powder spraying tools, a small amount of powder spraying, powder multi-layer spraying experiment, materials on the metal surface corrosion test, small amount of color change DIY electrostatic spraying and other laboratory powder spraying requirements. Small portable handheld operation and flexible movement in the laboratory, using DC12V lithium battery power supply to carry out, suitable for small workpiece or small area of spraying proofing.
Details
Small Powder Friction Electrostatic Spray Gun is specially designed for laboratory small electrostatic powder spraying tools. It is suitable for small - amount medicine spraying, trace powder spraying, powder multi - layer spraying experiments, material anti - corrosion tests on the metal surface, small - amount spraying color - change DIY coating, and other laboratory powder spraying requirements. No power supply, no electrostatic spark, powder friction electrostatic spraying gun. Secondary coating backspray workpiece coating sticky powder rate is high, will not be electrostatic breakdown pinhole concave point, primary spraying groove, safe and efficient. Suitable for laboratory materials spraying test, home DIY hub auto parts color change electrostatic powder spraying best tool.
Details
Powder static spray gun is a powder spraying tool specially designed for small laboratories. It is suitable for a small amount of medicine, trace powder spraying, multi-layer powder spraying experiment, metal surface material anti-corrosion test, a small amount of spraying color change DIY coating and other laboratory powder spraying needs. Compared with air fluidized powder supply, vibration powder supply is more environmentally friendly. Powder does not fly around, which is more suitable for dust-free operation in laboratory
Details
Intelligent Small Powder Electrostatic Spray Gun is a portable spraying equipment designed for small-scaleproduction, laboratory research and precision machining scenarios. lt integrates intelligent control, highperformance and compact design, perfect for workbenches, research and development laboratories or smallproduction lines with high space requirements。 1.The equipment comes with three formulas: plate surface coating, rework coating and dead corner surface coating, as well as 21 spraying procedures, enabling high-quality workpiece coating; it also features anautomatic qun cleaning function. 2.The control unit offers simple and clear operation for more convenient manaqement. Powder volume,atomization and cleaning adjustments are achieved via electronic touch, with the motherboard controllingthe inlet high-precision control valve to ensure accurate and constant air flow, thus quaranteeing precisepowder output and consistent spraying effects.
Details
