Home Vibration filtering type of screening machine

2-layer 3-outlet vibrating screen

2-layer 3-outlet vibrating screen

  The linear vibrating screen is a commonly used light-duty screening equipment that relies on dual vibrating motors to excite in sync in opposite directions, causing the material to move back and forth in a straight line along the screen surface. When powered on, it generates synchronized reverse vibration forces that drive the screen box to vibrate along a straight trajectory. The material enters the screen surface evenly from the feed end and continuously jumps forward under the action of the vibration force, separating coarse and fine materials based on the size of the screen mesh holes. Qualified fine material passes through the screen and falls, while larger particles are conveyed along the screen surface to the discharge port and discharged, quickly completing the screening process. It is suitable for grading, impurity removal, dehydration, and screening operations of granular, powdery, and small lumpy materials. It features a stable structure, smooth operation, and high throughput, and is widely used in industries such as mining, building materials, chemicals, grain, food, and metallurgy

  • Item No :

    BO-ZXS-3 discharge port
  • Order(MOQ) :

    one
  • Price :

    382$
  • Product Origin :

    Fujian
  • Color :

    Customizable
  • Shipping Port :

    Xiamen
  • Lead Time :

    7day
  • Weight :

    32kg
  • Payment :

    T/T

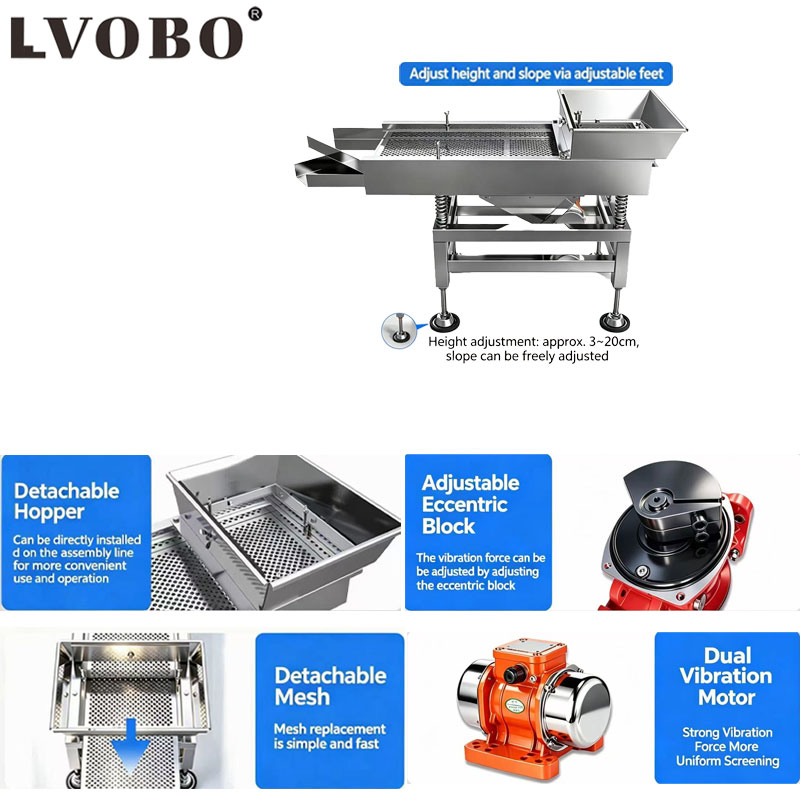

1. High output, high efficiency, small footprint: Linear conveyor-type screening, with material spreading evenly, not prone to piling up or clogging the mesh; the output of the same model is much higher than that of a circular vibrating screen, suitable for large-scale assembly line production.
2. Screening accuracy is stable: the vibration trajectory is uniform and stable, the material pass-through rate is high, the classification particle size is precise, and the finished product has good uniformity.
3. Stable operation and low noise: Uses rubber shock-absorbing springs, with gentle body vibration and no severe shaking, low operating noise, and long equipment lifespan.



4. Achievable functions: Multi-level material granularity classification; removal of powder and impurities through filtration; dehydration of wet and dry materials; removal of floating dust, deagglomeration of materials, homogenization; solid-liquid separation and slurry filtration.
5.Applicable materials: Quartz sand, sand and gravel, mineral powder, graphite powder, activated carbon, plastic granules, chemical powders, grains, feed, tea leaves, grinding corundum, metal powders, pharmaceutical powders, dry mortar, and other powdered, granular, or small block materials.

6.Easy to maintain and low cost: The screen is simple to assemble and disassemble, has few easily worn parts, and the motor is durable. Daily maintenance is simple, significantly.

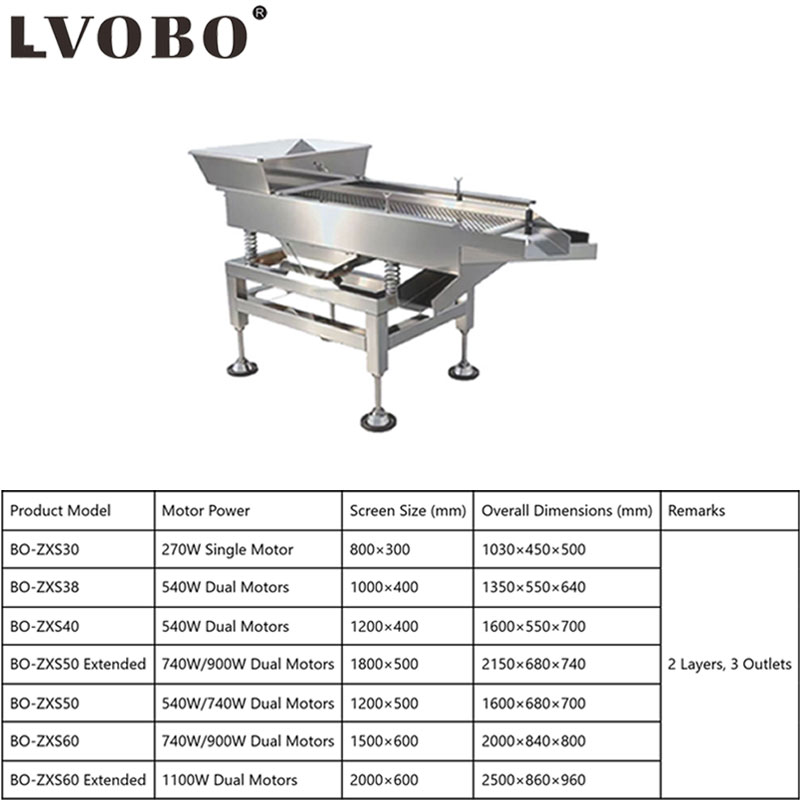

Product Model Motor Power Screen Size (mm) Overall Dimensions (mm) Remarks

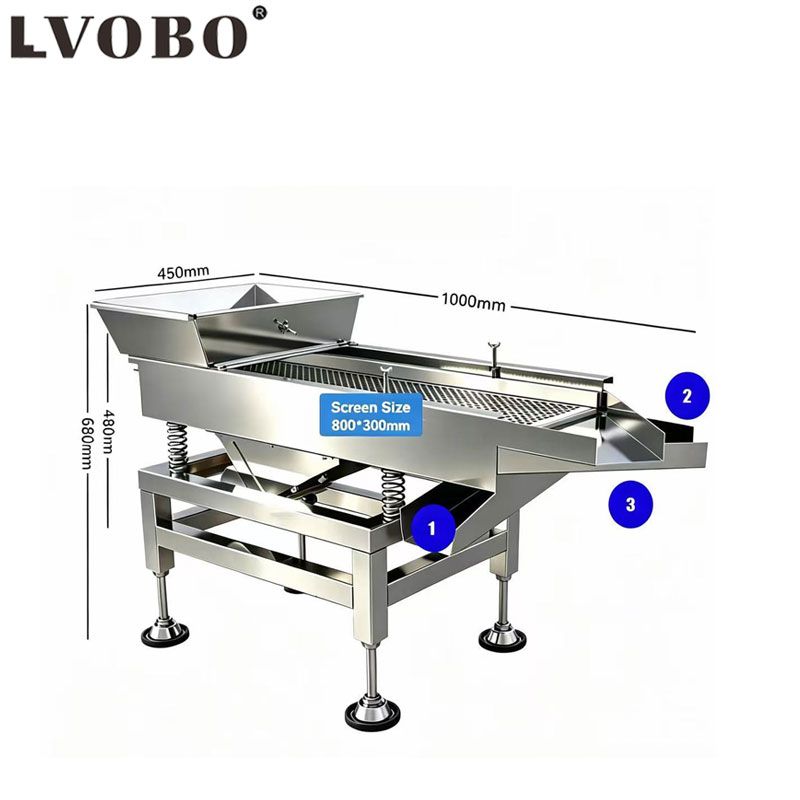

BO-ZXS30 270W Single Motor 800×300 1030×450×500 2 Layers, 3 Outlets
BO-ZXS38 540W Dual Motors 1000×400 1350×550×640 2 Layers, 3 Outlets
BO-ZXS40 540W Dual Motors 1200×400 1600×550×700 2 Layers, 3 Outlets
BO-ZXS50
540W/740W Dual Motors 1200×500 1600×680×700 2 Layers, 3 Outlets
BO-ZXS50 Extended 740W/900W Dual Motors 1800×500 2150×680×740 2 Layers, 3 Outlets
BO-ZXS60 740W/900W Dual Motors 1500×600 2000×840×800 2 Layers, 3 Outlets
BO-ZXS60 Extended 1100W Dual Motors 2000×600 2500×860×960 2 Layers, 3 Outlets
BO-ZXS70 1100W Dual Motors 2000×700 2500×860×960 2 Layers, 3 Outlets
