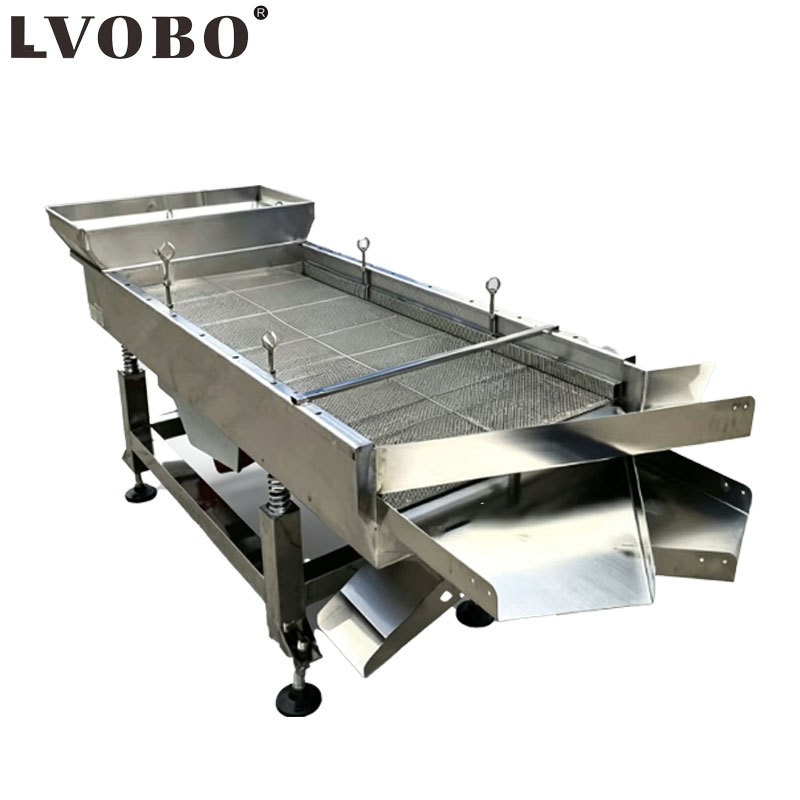

3-layer 4-outlet vibrating screen Vibrating screen for building material screening

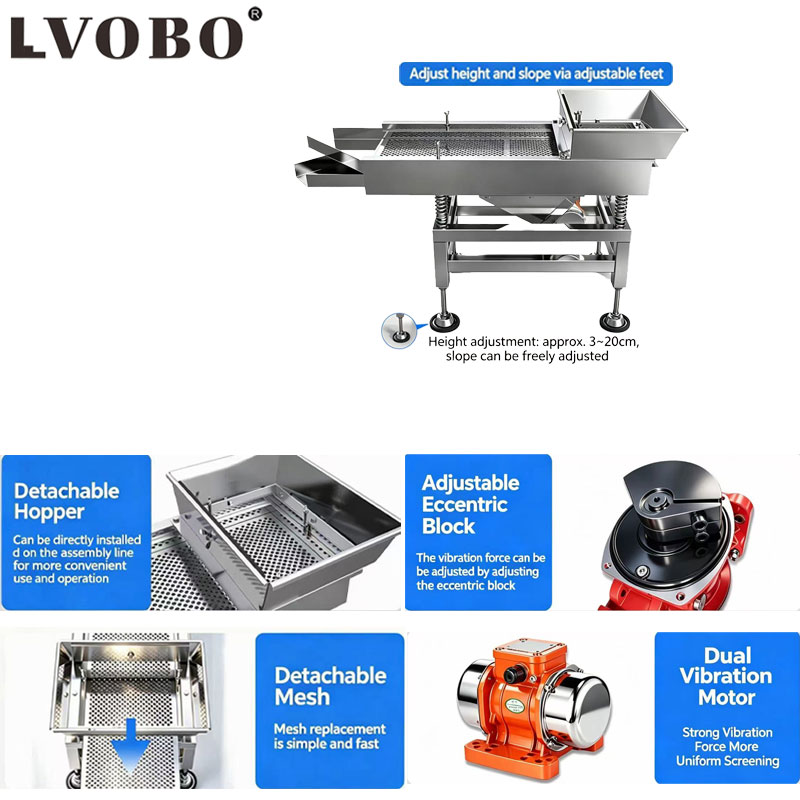

The linear vibrating screen is a commonly used light-duty screening equipment that relies on dual vibrating motors to excite in sync in opposite directions, causing the material to move back and forth in a straight line along the screen surface. When powered on, it generates synchronized reverse vibration forces that drive the screen box to vibrate along a straight trajectory. The material enters the screen surface evenly from the feed end and continuously jumps forward under the action of the vibration force, separating coarse and fine materials based on the size of the screen mesh holes. Qualified fine material passes through the screen and falls, while larger particles are conveyed along the screen surface to the discharge port and discharged, quickly completing the screening process. It is suitable for grading, impurity removal, dehydration, and screening operations of granular, powdery, and small lumpy materials. It features a stable structure, smooth operation, and high throughput, and is widely used in industries such as mining, building materials, chemicals, grain, food, and metallurgy
Item No :
BO-ZXS-4 discharge portOrder(MOQ) :
onePrice :
856$Product Origin :
FujianColor :
CustomizableShipping Port :
XiamenLead Time :
7dayWeight :
72kgPayment :
T/T

4. Achievable functions: Multi-level material granularity classification; removal of powder and impurities through filtration; dehydration of wet and dry materials; removal of floating dust, deagglomeration of materials, homogenization; solid-liquid separation and slurry filtration.

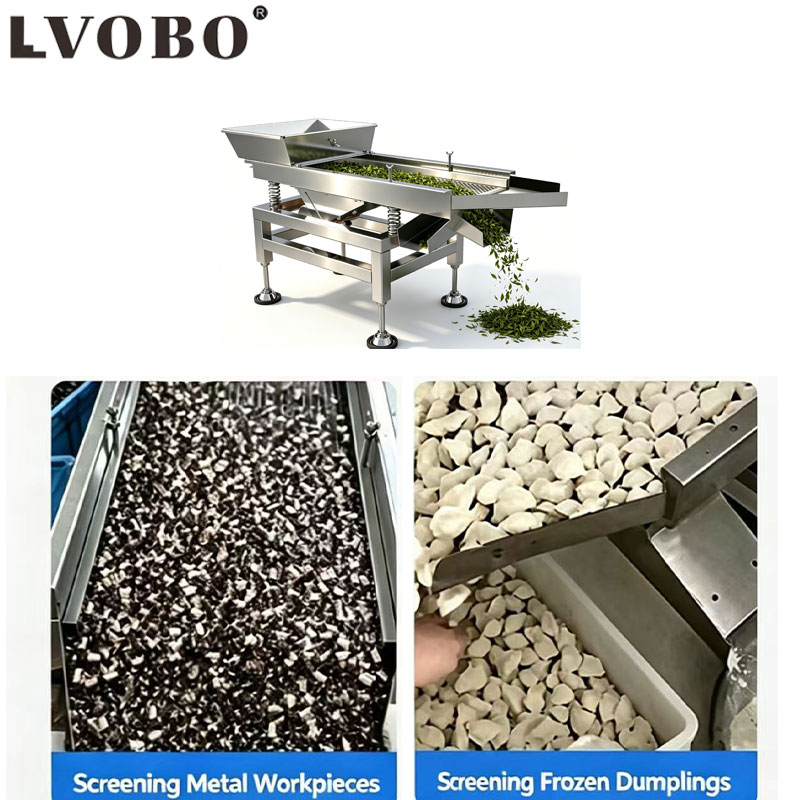

5.Applicable materials: Quartz sand, sand and gravel, mineral powder, graphite powder, activated carbon, plastic granules, chemical powders, grains, feed, tea leaves, grinding corundum, metal powders, pharmaceutical powders, dry mortar, and other powdered, granular, or small block materials.

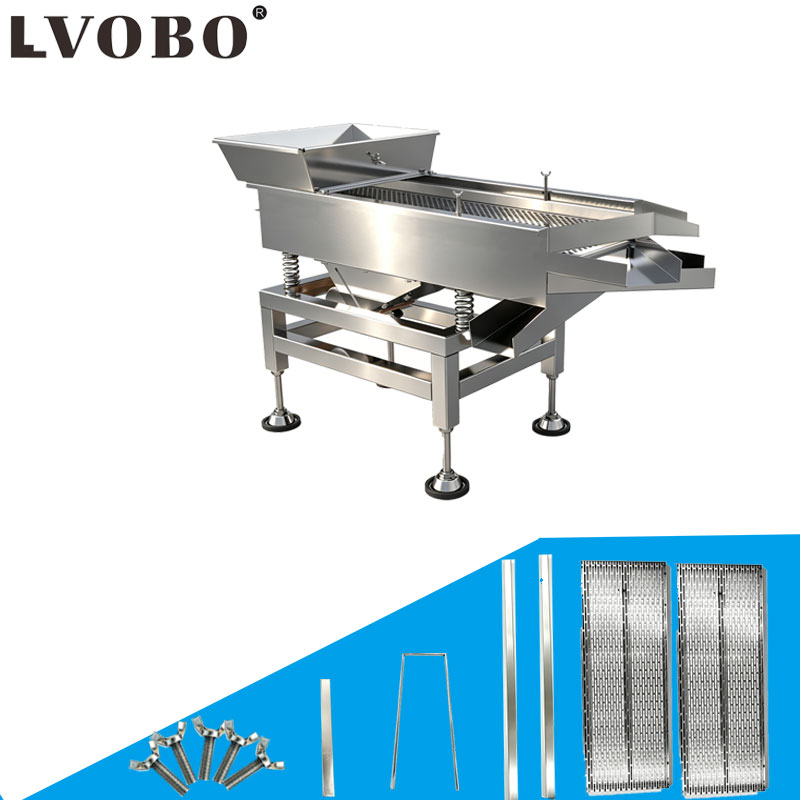

6.Easy to maintain and low cost: The screen is simple to assemble and disassemble, has few easily worn parts, and the motor is durable. Daily maintenance is simple, significantly

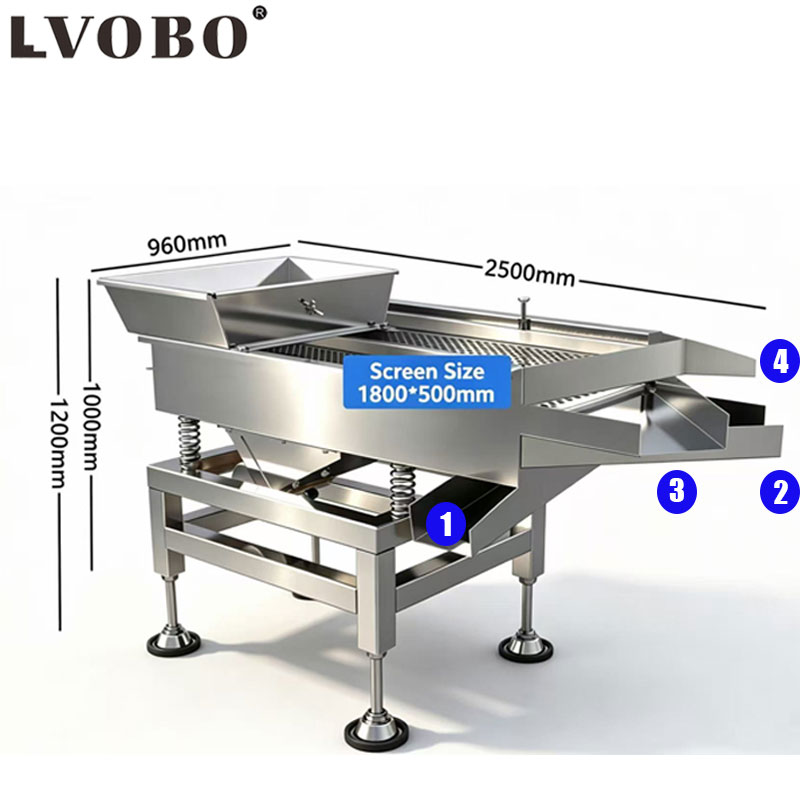

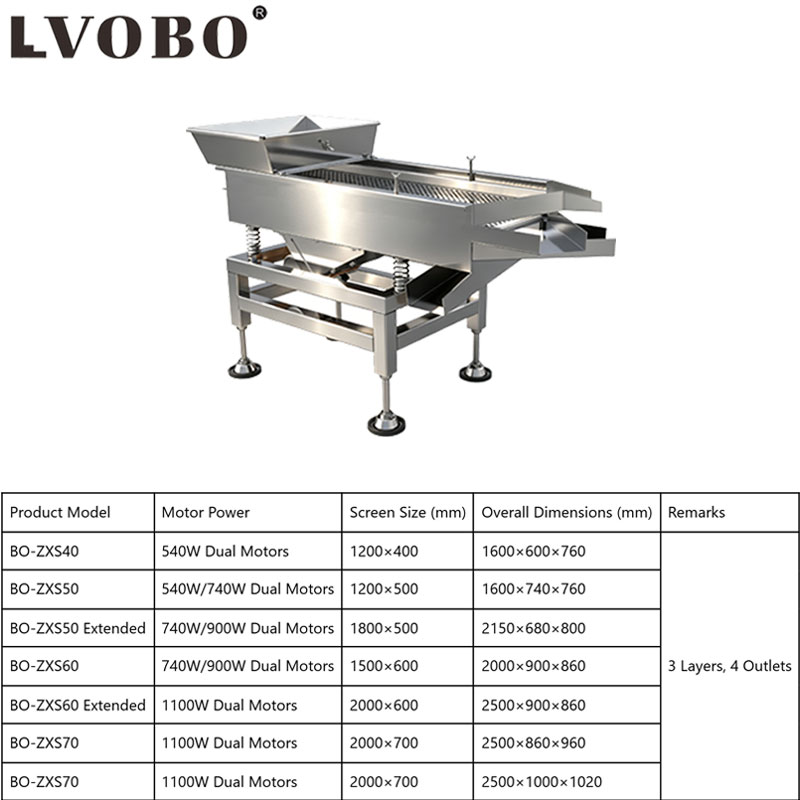

| Product Model | Motor Power | Screen Size (mm) | Overall Dimensions (mm) | Remarks |
| BO-ZXS40 | 540W Dual Motors | 1200×400 | 1600×600×760 | 3 Layers, 4 Outlets |
| BO-ZXS50 | 540W/740W Dual Motors | 1200×500 | 1600×740×760 | 3 Layers, 4 Outlets |
| BO-ZXS50 Extended | 740W/900W Dual Motors | 1800×500 | 2150×680×800 | 3 Layers, 4 Outlets |
| BO-ZXS60 | 740W/900W Dual Motors | 1500×600 | 2000×900×860 | 3 Layers, 4 Outlets |
| BO-ZXS60 Extended | 1100W Dual Motors | 2000×600 | 2500×900×860 | 3 Layers, 4 Outlets |
| BO-ZXS70 | 1100W Dual Motors | 2000×700 | 2500×1000×1020 | 3 Layers, 4 Outlets |
